Guardian/GuardianX Series NEMA 4 or 4X
Air-Cooled Panel-Mounted Air Conditioners

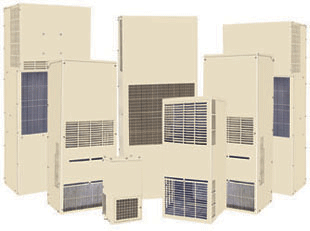

Guardian/GuardianX Series 4/4X Air Conditioners

NEMA
TYPE 4
MAINTAINED

Description

The Guardian and GuardianX Series Indoor/Outdoor Air Conditioners are specifically designed for NEMA 4 and 4X enclosure applications that require washdown or are subject to outdoor storm conditions. All Guardian models have a NEMA 4 rating. The GuardianX, with a NEMA 4X Rating, is available with a Stainless Steel Shell and Internal Corrosion Protection.

With Epoxy-coated condenser coils and tubing, the closed-loop cooling system of the Guardian Series offers added security by providing an operating environment safe from harsh ambient conditions.

The Guardian Series consists of seven units with heights from 15 to 60 inches, offering 1,000 to 26,000 BTU/H ratings. In addition to the list of standard features, these Guardian Series Air Conditioners are also available with a wide range of accessories and options, including short cycle protector, cooling effect detector and heater kit.

The features engineered into the Guardian/GuardianX Series make them a tamper-resistant choice for external applications. With all models UL/CUL Listed, the Guardian is an excellent choice for telecommunications, wastewater treatment, food and beverage and other challenging applications.

KOOLTRONIC also designs and manufactures a variety of air conditioners to meet unique specifications. We invite your inquiries about our modification and custom-design capabilities.

Standard Features


DP15
1,000 BTU/H
15"H x 8"W x 7"D

DP33
5,000 BTU/H
33"H x 17"W x 11"D

DP43
7,000 BTU/H
43"H x 17"W x 10"D

DP47
9,000 BTU/H
47"H x 17"W x 10"D

DP50
14,000 BTU/H
50"H x 20"W x 12"D

DP53
18,000 BTU/H
53"H x 22"W x 13"D

DP60
26,000 BTU/H
60"H x 24"W x 13"D
