Enclosure Light

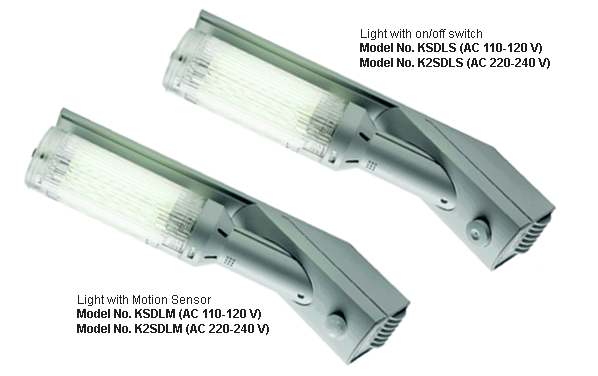

Enclosure Lights

ce logo           Rohs logo

Description
Click to Request Quote
Model Number
Light with on/off switch, E26 socket, AC 110-120 V
KSDLS
Light with on/off switch, E27 socket, AC 220-240 V
K2SDLS
Light with motion sensor, E26 socket, AC 110-120 V
KSDLM
Light with motion sensor, E27 socket, AC 220-240 V
K2SDLM
2 self-adhesive mounting plates (includes two screws)
KSDLM/A
2 magnetic mounting plates (includes two screws)
KSDLM/M
Self-adhesive light holder with US plug, 110-120 V*
KSDLH/US
Self-adhesive light holder with Schuko plug, 220-240 V*
K2SDLH/S
Hand lamp w/power cord & US plug, 20W, 110-120VAC
KSHL/US
Hand lamp w/power cord & Schuko plug, 20W, 220-240VAC
K2SHL/S

* With the light holder/power cord kit, the light can be used as a hand lamp.

** Contact Kooltronic for quantity pricing.

ksdl holder
Light Holder:
Model Number KSDLH/US
for use with KSDLS or KSDLM
Model Number K2SDLH/S
for use with K2SDLS or K2SDLM


TECHNICAL DATA
Operating voltage: AC 110-120 V or AC 220-240 V 50/60 Hz
Lamp type:
Electronic energy saving lamp
Power consumption: 20W (equal to a 100W incandescent bulb)
Luminosity: 1000 Lm
Service life: 10,000 hours
Motion Sensor: PIR = Passive infrared (see note below)
On-cycle: Approx. 5 min.
Connections: 4-pole terminal, AGW 14 max. (2.5 mm²) for hard wiring of 1 light or 2 lights in parallel
Standard mounting (included): Screw mounting on 35 mm DIN rail or sheet metal
Optional mounting: With self-adhesive or magnet mounting plates
Housing: Plastic, UL 94-V
Operating/storage temperature: -4 to 122°F (-20 to 50°C)
Protection class: II (double insulated)
Protection type: IP20
Agency approvals: CE
Note: A Passive Infrared (PIR) motion sensor detects the motion of the enclosure door being opened and automatically turns on the light. The sensor is factory pre-set to turn the light off 5 minutes after all motion ceases. The motion sensor does not detect movement through glass or fiberglass, thus allowing installation in enclosure with glass doors.

DIMENSIONS (click and drag to pan)
Dimensions, inches [mm], are for reference only and subject to change.
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.


HOW TO ORDER

Specify model number.






Series 21 Data Sheet
View Data Sheet
