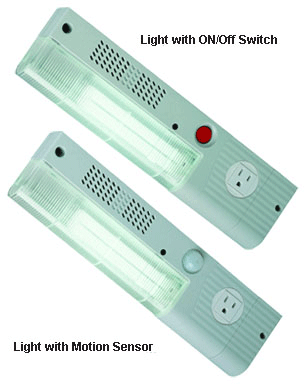

The Slimline Light was designed to fit in tight spaces in enclosures. It features an integrated receptacle, so that electrical devices (e.g. power tools) can be easily plugged in when needed. The standard light can be screw-mounted in a variety of positions, or the light can be fitted with an optional magnet mount.The motion sensor was designed so it can be used in enclosures with glass doors and not be activated by movement outside the enclosure.
M5 screws (not included), 11.8" (300 mm) hole distance or optional attached magnet
(see model numbers)
Housing:
Plastic, UL 94-V
Weight (approx.):
14.1 oz (400 g). 1.3 lbs with magnet
Protection class:
I (grounded)
Protection type:
IP20
Agency approvals:
VDE, UL submitted for approval
Note: A Passive Infrared (PIR) motion sensor detects the motion of the enclosure door being opened and automatically turns on the light. The sensor is factory pre-set to turn the light off 5 minutes after all motion ceases. The motion sensor does not detect movement through glass or fiberglass, thus allowing installation in enclosure with glass doors.
DIMENSIONS (click and drag to pan)
Dimensions, inches [mm], are for reference only and subject to change.
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
