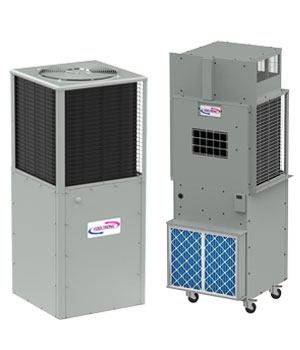

Intrepid Series Outdoor
Air-Cooled Panel-Mounted Air Conditioners

Intrepid Series EP56 Air Conditioner Intrepid Series EP56 Air Conditioner
UR Logo NEMA TYPE 3R,12 & 1
MAINTAINED

Description

These specifically-designed Intrepid Outdoor Air Conditioners are UL/CUL Recognized and approved for outdoor use to protect the enclosure against nearly all outdoor climate hazards.

Sensitive internal components are shielded from invasion by the outdoor elements, while the internal enclosure environment is effectively controlled. Cooling, dehumidification and heating (optional) are provided over a wide range of conditions.

The weather protection afforded by these air conditioners is integral to the cabinetry, without protruding weather hoods. These units feature a sturdy painted galvanized exterior, gasketed flanges and tamper-resistant external fasteners to prevent vandalism or unauthorized access.

Powerful Kooltronic-designed blowers in the interior compartment assure maximum airflow and efficient heat transfer, even in densely-packed enclosures, for the most demanding electronic, industrial or telecommunications applications.

These EP56 Air Conditioners have been specially designed for applications where sound level must be minimized. The air conditioners utilize a condenser fan speed controller, which delivers significant noise reduction.

For more extreme climatic conditions or applications requiring total sealing of the enclosure from the environment, Kooltronic offers the GuardianX Series that maintains NEMA 4 or 4X Enclosure ratings.

KOOLTRONIC also designs and manufactures a variety of air conditioners to meet unique specifications. We invite your inquiries about our modification and custom-design capabilities.

Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.



Standard Features

  • Available in either top or bottom evaporator air discharge models
  • Baked Powder Finish
  • Closed-Loop Cooling
    • The enclosure interior airflow system is isolated from the ambient airflow or waterflow system. No ambient air can invade the cool, dehumidified sensitive component compartment.
  • Condenser Blower Speed Controller
    • A speed control sensing bulb located in the condenser air outlet area switches the condenser blower between minimum and maximum speed based on the ambient temperature. This reduces noise levels, fan cycling, compressor cycling and prevents the unit from freezing.
  • Crankcase Compressor Heater
    • 120V or 240V heater attached to the compressor crankcase to maintain appropriate temperatures during cold operating conditions.
  • Heavy-duty Steel Shell
  • NEMA 12, 3R & 1 Ratings maintained (UL50)
    • All units are fully gasketed for tight, leakproof installation, in compliance with the NEMA 12, 3R & 1 Enclosure Ratings.
  • Six foot [1.8m] (minimum) 3-wire power cord
  • Tamper-resistant hardware for protection at remote sites
  • UL/CUL Recognized
    • All Intrepid EP56 models are UL/CUL Recognized. All Recognized models are available as Listed at added cost.
  • Zero ODP Refrigerant
    • Zero ODP R410a Refrigerant is used in all EP56 Air Conditioners.

Click Products Below
For More Details and to Request a Free Quote
Intrepid EP56
EP56
30,500 BTU/H
56"H x 24"W x 24"D
Intrepid EP56TR-4
EP56TR-4
30,000 BTU/H
73"H x 27"W x 24"D
