Keeping electrical enclosures cool is vital for preventing the premature failure of critical electronics, maximizing their lifespan, and avoiding unexpected downtime. If an enclosure is properly cooled, the heat-sensitive components within can have a long and useful life. Without proper cooling, however, these components can be subject to extreme temperatures (in some cases over 130°F), shortening their longevity and significantly reducing reliability.
In the spirit of the Halloween season, our experts have outlined 13 "chilling" tips to keep your electrical enclosures operating at peak thermal efficiency:

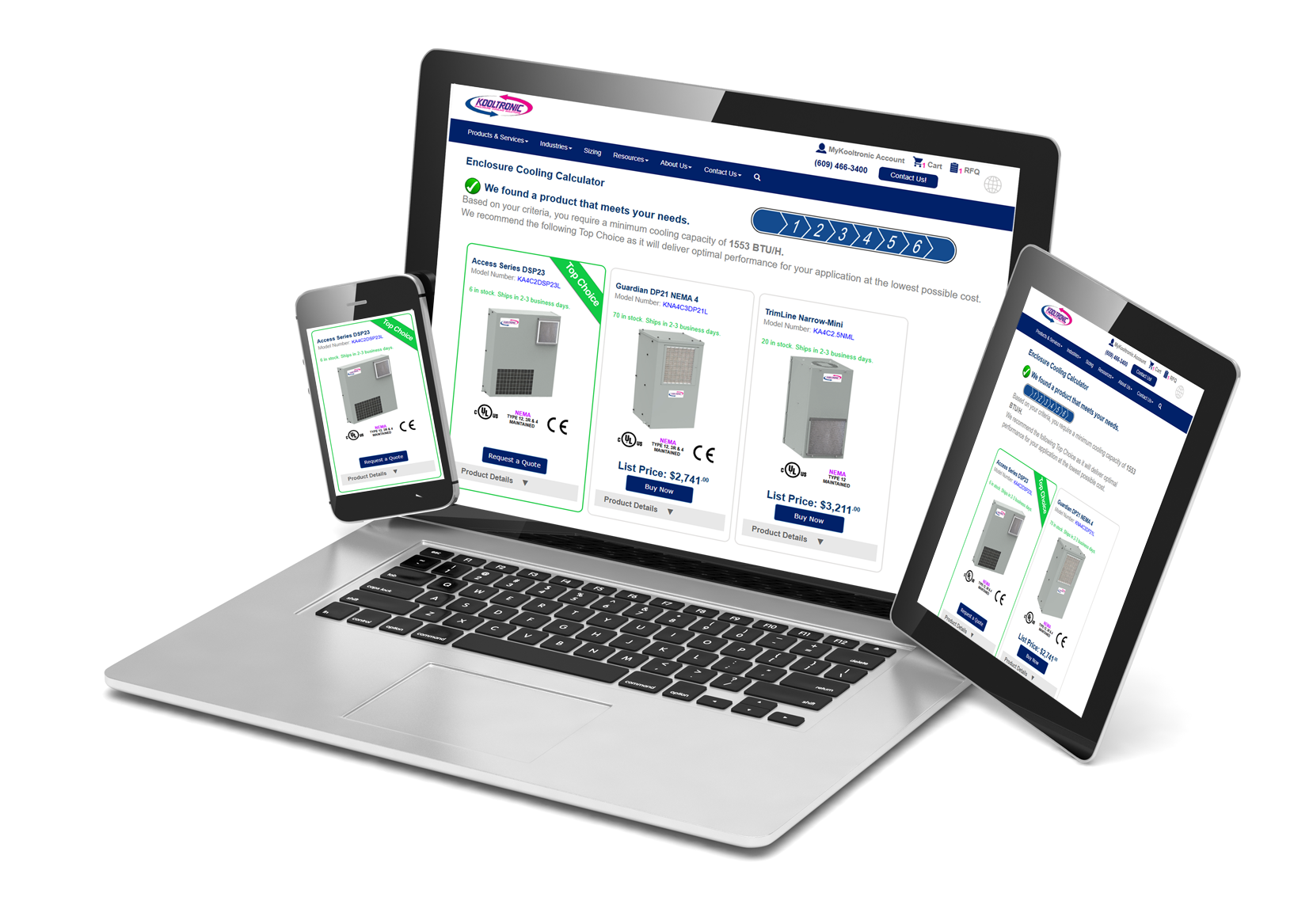

Before choosing a cooling method, determine total internal heat dissipation by adding the wattage of all heat-generating components inside the enclosure. Kooltronic's Enclosure Cooling Calculator eliminates the "what-ifs" by providing up to 3 tailored product recommendations with a "Top Choice" engineered to deliver optimal cooling performance at the lowest price.
Where the surrounding environment is clean and cooler than the target temperature inside the enclosure, use forced-air filter fans or blowers as a cost- and energy-efficient solution.
Specialized enclosure air conditioners operate using a closed-loop system – use them when ambient temperatures are high, or the surrounding air contains dust, oil, moisture, or corrosive chemicals.
Employ an air-to-air heat exchanger to separate the internal and external airstreams, providing efficient cooling while preventing ambient contaminants from entering the electrical enclosure. As an example, Kooltronic KXHE Heat Exchangers (pictured below) are an excellent choice for all applications requiring a closed-loop system that can tolerate enclosure temperatures slightly above ambient, and are particularly ideal for dirty or oil-laden environments.
Group high-heat-generating components near the bottom or exhaust paths, and leave adequate clearance between devices to allow free convective airflow.
Choosing the right enclosure fan configuration is about more than just moving air—it’s about managing pressure and buoyancy. Position intake fans or filters low on the enclosure and exhaust fans high up to align with natural thermal convection.

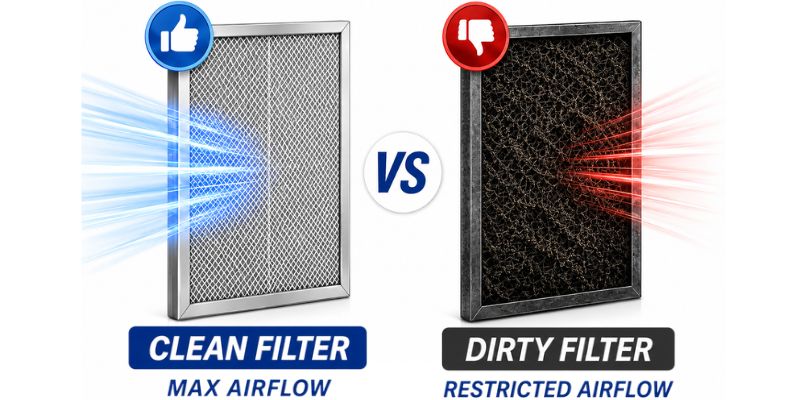

An air filter that is 30% clogged can reduce total unit airflow by more than 50%, causing compressor short-cycling and thermal overload. Get the most out of your enclosure cooling unit by scheduling routine inspections to clear dust and debris from filter media. Doing so will prevent airflow restriction and overheating spikes.
Ensure gaskets, door seals, and cable entry points remain intact to protect the internal climate and maintain proper ingress protection against moisture and particulates.
The cross-sectional area of the airstream throughout the flow path in the electrical enclosure should be at least equal to the effective air intake area. If this ratio is less, the delivered air may result in "choking."

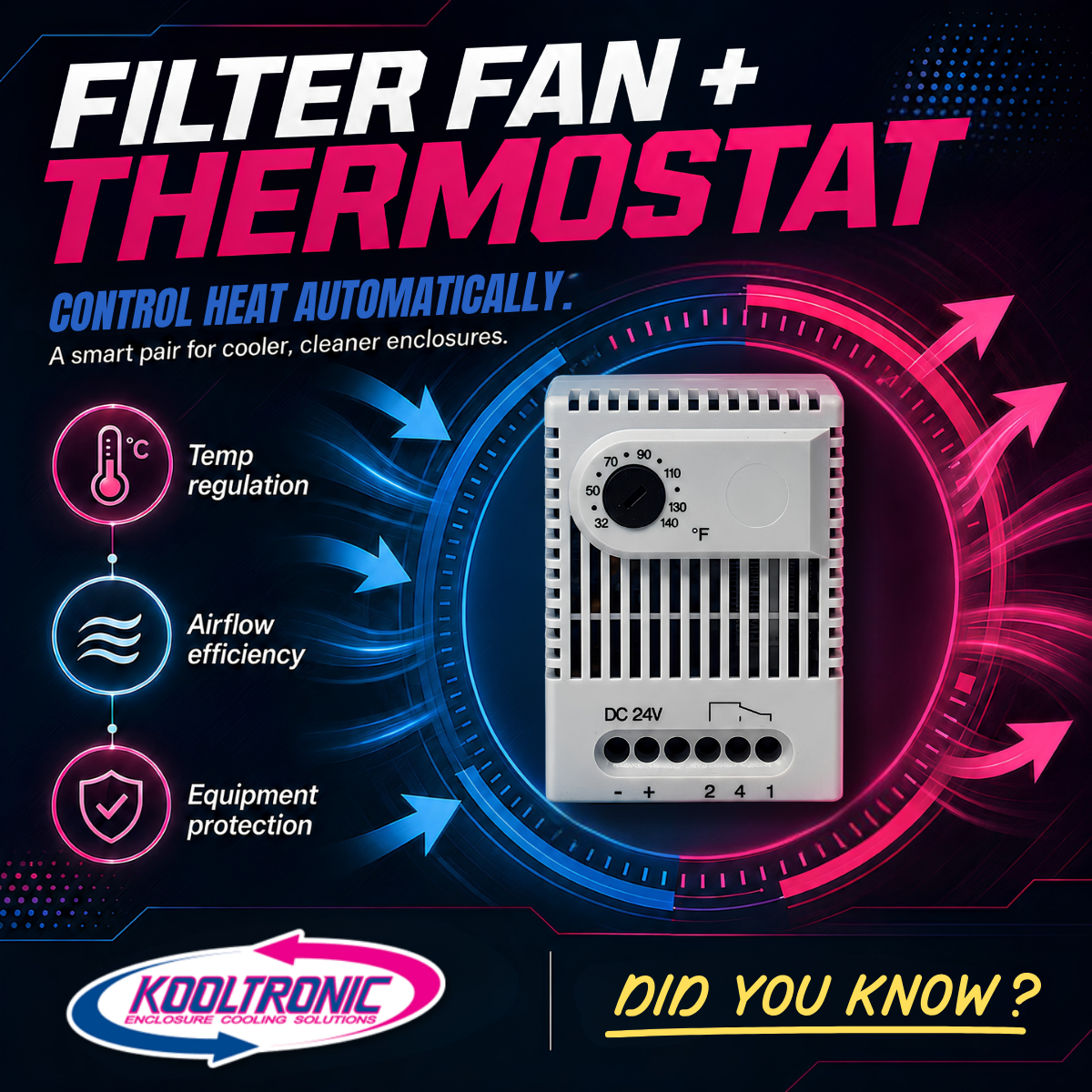

Install adjustable enclosure thermostats to run cooling systems only when necessary, saving energy and reducing mechanical wear on fans and compressors.
Place small auxiliary fans inside larger panels to eliminate stagnant hot spots and maintain a uniform temperature gradient.
Position enclosures away from direct solar radiation, or install external sun shields/canopies to drastically lower passive solar heat gain.
Set up continuous remote temperature logging or automated alarms to alert maintenance teams before critical thermal thresholds are exceeded.
