Outdoor Filter Fan & Exhaust Package

These indoor/outdoor filter fan and exhaust packages are used in enclosures to dissipate heat harmful to sensitive electronic components. The fans feature a filter that is easily changed by opening the lockable door of the outdoor hood. IP55 protection is reached by the specially-designed hood and the use of special filters. The plastic casing is impact-resistant, weather-proof and UV resistant.
Click to Request Quote	Model No.	Filter Fan	Exhaust Filter	Voltage	Hz	Current Consumption	Power Consumption
	KSFF			120 VAC	60	180mA	15W
	K2SFF			230 VAC	50	100mA	15W
	KS7FF			24 VDC		0.21A	5.04W
	KS8FF			48 VDC		0.16A	7.68W
	KSEF

Click on image for larger view

TECHNICAL DATA - Filter Fans
Filter mat: Fine Grade	360 g/m², filtering degree 98%, particle Ø > 10 µm, F5 (EN779)
Airflow - free blowing :	11.8 cfm (20 m³/h)
Note: Airflow increases by approximately 15% for 120V/60 Hz models
Average noise level at 3 ft.
(DIN EN ISO 9614-2):	40 dB (A)
Mounting depth:	2.4" (62.mm)
Enclosure cut-out:	4.9 x 4.9" (125 x 125mm + 0.4)
Approx weight:	2.6 lbs (1.2 kg)
Protection type:	IP55
Axial fan:	Ball bearing, aluminum frame, plastic impeller - UL 94V-0
Filter fan housing:	Plastic ASA, UL 94HB, light gray, temperature resistant -31 to 194°F
Mounting frame:	Double-sided industrial adhesive tape for affixing to the outside of enclosures
Agency approvals:	CUR/US, CE
TECHNICAL DATA - Exhaust Filter (KS481F)
Filter mat: Fine Grade	360 g/m², filtering degree 98%, particle Ø > 10 µm, F5 (EN779)
Size:	4.6" x 4.6" (118 x 118mm)
Replacement Filter:
Filter Mat (F5 122 x 122mm Fine Grade: Part Number: KS481F (package of 3)

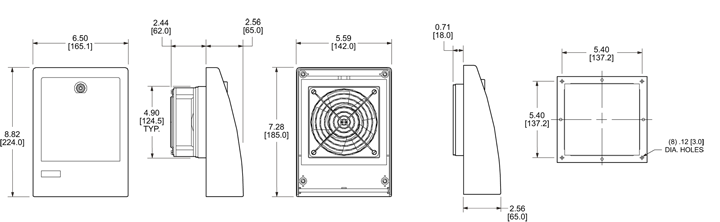

DIMENSIONS Click on image for larger view DIMENSIONS Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
HOW TO ORDER
Specify model number. View Data Sheet
