PTC Enclosure Heater

Compact heater in PTC technology
Maintains minimum operating temperatures in enclosures
Helps to prevent failure of electronic components caused by condensation and corrosion
Heating power adjusts to ambient temperature
DIN rail mountable

Image 1 of 1 KFEHK Heaters are UL approved when used in conjunction with a KFST Thermostat

Select Model Type

Model	Voltage	Power*	Rated Current**	Length	Weight (approx.)
Model	Voltage	Power*	Rated Current**	Length	Weight (approx.)
KFEHK45	110-250 VAC	45 W	0.20A	4.1" (105 mm)	0.61 lbs (280g)
KFEHK100	110-250 VAC	100 W	0.47A	6.1" (155MM)	0.88 lbs (400g)
KFEHK150	110-250 VAC	150 W	0.77A	9.1" (230mm)	1.30 lbs (590g)

TECHNICAL DATA


Model Number:
Voltage:
Power*:
Rated Current**:
Length:
Weight (approx.):
	KFEHK45	110-250 VAC	45 W	0.20A	4.1" (105 mm)	0.61 lbs (280g)
	KFEHK100	110-250 VAC	100 W	0.47A	6.1" (155MM)	0.88 lbs (400g)
	KFEHK150	110-250 VAC	150 W	0.77A	9.1" (230mm)	1.30 lbs (590g)

TECHNICAL DATA
Operating voltage:	AC/DC 110 - 250 V (other voltages also available)
Heating element:	PTC resistor, self-regulating
Heating body:	Anodized extruded aluminum
Protection class:	I, appliance
Protection type:	IP44
Mounting:	Clip for 35 mm DIN rail (EN 50022)

Standard Features
Arrangement
Applications

• Compact fan heater in PTC technology
• Maintains minimum operating temperatures in enclosures
• Heating power adjusts to ambient temperature
• DIN rail mountable

Click on image for larger view

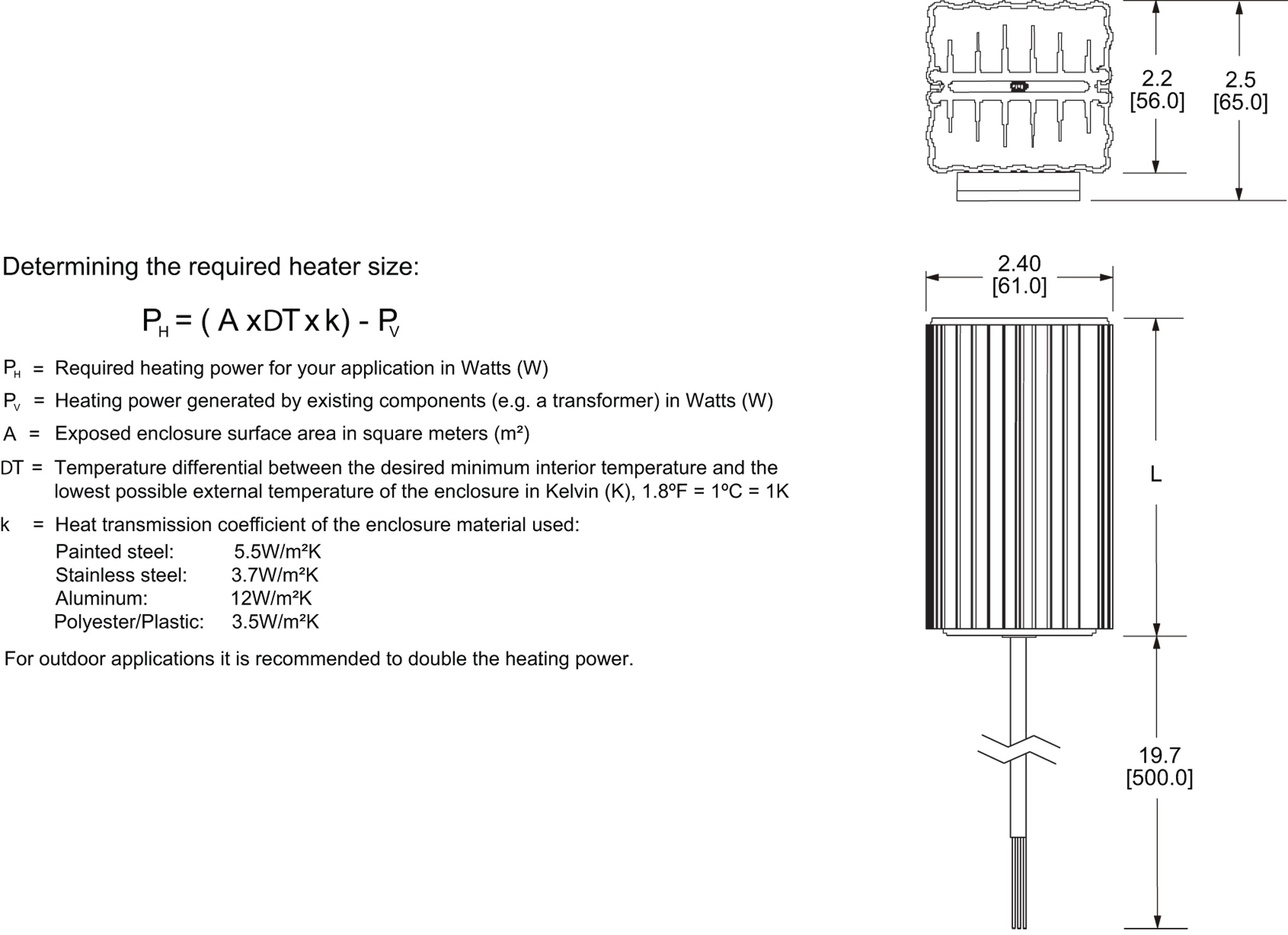

General Arrangement Thumbnail

PTC Enclosure Heater general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

Literature

Electrical & Electronic enclosures
Display panels
Telecommunications systems
Ticket dispensers
Automatic teller machines (ATM's)
Access & Parking control systems

	Increasing the Lifespan and Reliability of Electrical Components [212Kb]
	Kooltronic Custom Capabilities Flyer [2194Kb]
	Kooltronic Custom Cooling Medical Flyer [211Kb]
	Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
	Kooltronic Refrigeration System Manufacturing [55Kb]
	Kooltronic Standard Warranty [55Kb]
	Kooltronic Unit Longevity Press Release [167Kb]
	NEMA Enclosure Ratings [91Kb]
	Short-Form Catalog (16 pages) [897Kb]
	Airflow Switch Data Sheet [159Kb]
	Laboratory Environmental Testing Services [157Kb]
	Powder Paint Application Facilities Flyer [165Kb]
