KNPA60 Filter Hood

Description

The Guardian Series KNPA60 Filter-Hood Assembly is used with Kooltronic KNPA60FL and KNPA60FLV Filter Fans for high-performance cooling of heat-sensitive electrical components. In a typical mounting orientation the motorized Filter Fan pulls air into an enclosure while the Filter-Hood Assembly functions as an outlet. Alternatively, if the reverse airflow option is chosen for the filter fan, the fan exhausts the enclosure and the KNPA60 Filter-Hood Assembly functions as an intake. KNPA60 Filter-Hood Assembly filters can be easily removed for replacement or periodic cleaning

NEMA
TYPE 4 OR 4X
MAINTAINED

$324.00


Update Qty

Show Price Breaks ▼ Hide Price Breaks ▲

Quantity	Price Each
1-1	$324.00
2-4	$318.00
5-9	$292.00
10-24	$273.00
25-49	$253.00
50-99	$253.00
100+	$253.00

27 in stock. Ships in 2-3 business days.
Order 1 more and pay $318.00 each

Select Model Type

Model	NEMA Rating	Weight (lbs.)

KNPA60FL	NEMA 4	8.5
KNPA60FLV	NEMA 4X	8.5

TECHNICAL DATA


Model Number:
NEMA Rating:
Weight (lbs.):
	KNPA60FL	NEMA 4	8.5
	KNPA60FLV	NEMA 4X	8.5

ypical Mounting Orientations

(Left) Filter Fan pressurizes cabinet. Filter-Hood Assembly exhausts cabinet. (Right) Filter Fan with Reverse Option chosen. Blue arrows show direction of airflow. Boxes represent side view of electronics/electrical enclosure. Typical Installation

Standard Features
Arrangement

• Baked Powder Finish

Heavy-duty steel shell with powder-baked finish (ANSI 61 gray). Custom color options are available.

• Filter

All Kooltronic filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. Replacement filters are available and can be ordered online at kooltronic.com/spareparts.

• IP55 Filter Protection
• NEMA 4 or 4X Rating Maintained (if used with provided filter)
• Secure Mounting
• Stainless Steel Shell

For applications in corrosive or other hostile environments such as those requiring Internal Corrosion Resistant Coatings, especially where chemical/moisture combinations are present.

• UL/CUL Listed
• Washable, Reuseable Filter

Click on image for larger view

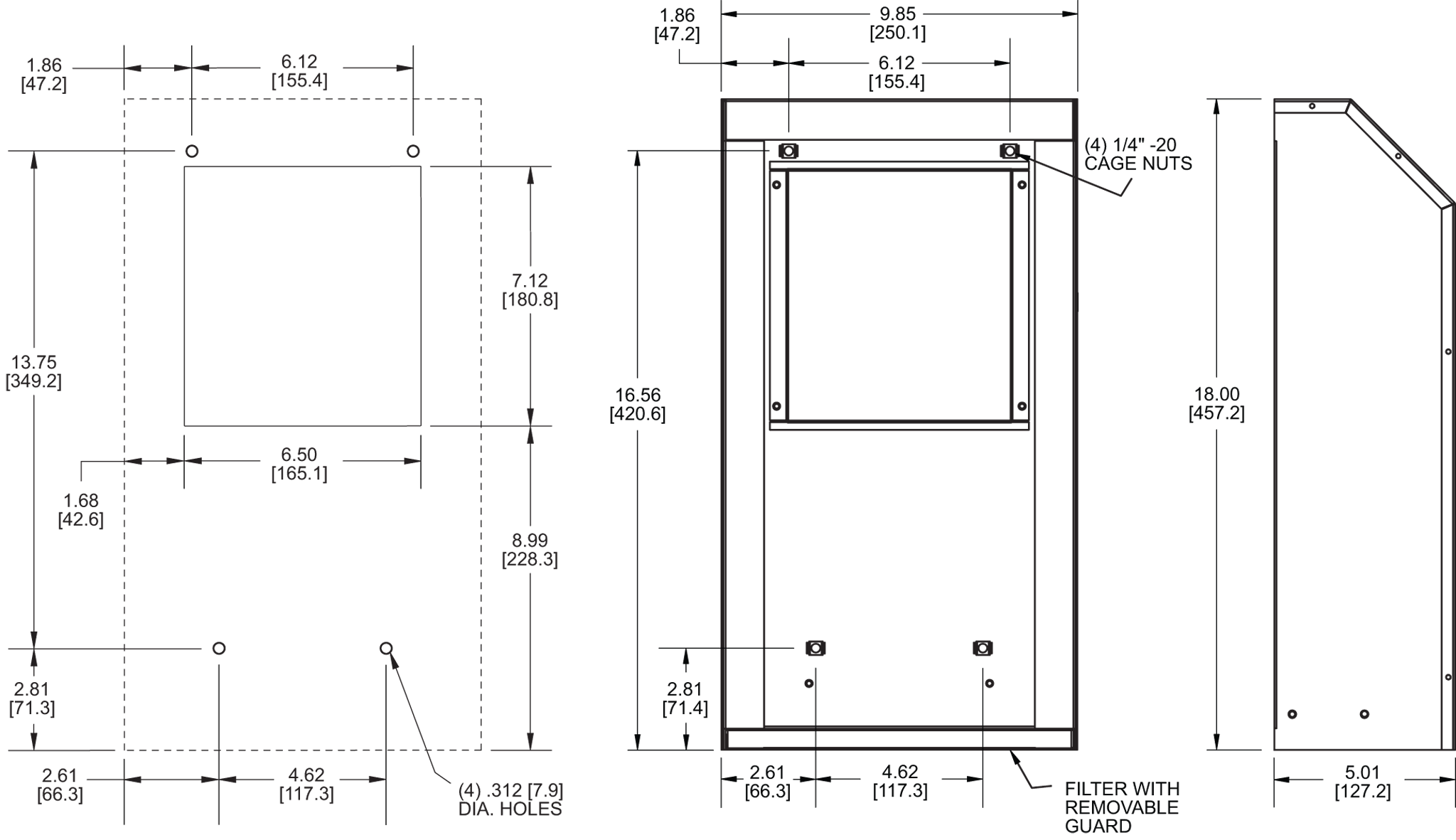

General Arrangement Thumbnail

KNPA60 Filter Hood general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.
