Compact Enclosure Light

  • Magnet or DIN rail mountable
  • Energy-saving lamp
  • Integrated receptacle
  • On/Off switch

The KSCL Compact Enclosure Light was designed for use in industrial enclosures and control cabinets. A strong magnet allows simple and quick installation and flexibility for various mounting positions.

Click on image for larger view

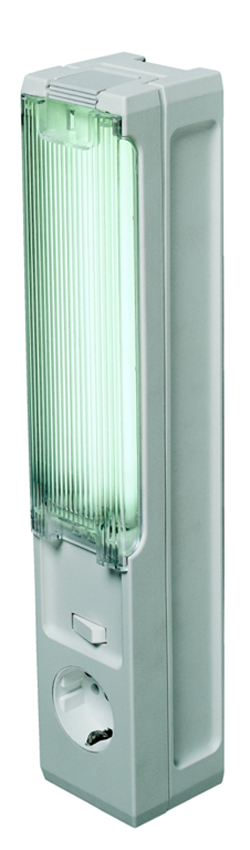

Compact Light Photo

ce logo     Rohs logo

Request for Quote
Model No.
Voltage
Power
KSCL9/R
120 VAC
9W (~60W incandescent bulb)
K2SCL11/RS
230 VAC
11W (~75W incandescent bulb)
TECHNICAL DATA
Lamp:
Compact fluorescent lamp
Luminosity: 900 Lm
Service life: 5000 hours
Radio interference suppression grade: In compliance with VDE 0712 ICE 82
Switch: On/off light switch
Receptacle: AC 120V: US receptacle and protective cover
AC 230V: Schuko receptacle and protective cover
Connections: 3-pole terminal for AWG 14 max. (2.5 mm²)
Mounting: Magnet mounting on painted steel surfaces
Holding power approx. 20 kp (on 2 mm sheet metal)
Housing: Plastic
Protection class: I (grounded)
Protection type: IP20
Operating/storage temperature: -4 to 122°F (-20 to 50°C)
DIMENSIONS
Click on image for larger view

Compact Light General Arrangement Drawing
DIMENSIONS
Click on image for larger view

Compact Light General Arrangement Drawing
Dimensions, inches [mm], are for reference only and subject to change.
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
HOW TO ORDER
Specify model number.

Compact Lights

View Data Sheet
