KB651B & KB651S Thin Fans

download product information Download
Product
Information
TECHNICAL DATA

Click to
Request
Quote
ModelVolts/HzCFM @
0" S.P.
Cutoff
S.P.
RPM
Nominal
AmpsWattsApprox. WeightSpare and
Replacement
Parts
RunL.R.Lbs.Kg.
Request RFQ linkKB651B115/603500.6130001.32.49752.3Order Parts
Request RFQ linkKB651B115/503100.6927001.32.49752.3Order Parts
Request RFQ linkKB651S115/603500.6130001.32.49752.3Order Parts
Request RFQ linkKB651S115/503100.6927001.32.49752.3Order Parts

Click on image for larger view
KB651 Thin Fans photo

TECHNICAL DATA

Click to
Request
Quote:
Request RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ link
Model
Number:
KB651BKB651BKB651SKB651S
Volts/Hz:115/60115/50115/60115/50
CFM @ 0" S.P.:350310350310
Cutoff S.P.:0.610.690.610.69
Nominal RPM:3000270030002700
Amps Run:1.31.31.31.3
Amps L.R.:2.42.42.42.4
Watts:97979797
Weight Lbs.:5555
Weight Kg.:2.32.32.32.3
Spare and Replacement PartsOrder PartsOrder PartsOrder PartsOrder Parts

STANDARD FEATURES

  • Extremely compact
  • 350 CFM Capacity
  • Versatile mounting configurations
  • Models can pressurize or exhaust
  • Rugged construction with baked powder finish
  • UL/CSA Ball-Bearing Motors
    • All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
  • 12-inch (304.8mm] (minimum) power and ground leads
  • Complete line of accessories

ACCESSORIES AND OPTIONS

  • Click for more info.Automatic Speed Control (Thin Fans)
  • Click for more info.Filters for Thin Fans
  • Click for more info.Filter Holders
  • Click for more info.Filter Recoating Adhesive for Thin Fans
  • Click for more info.Grille
  • Click for more info.Guard
  • Click for more info.Mounting Sleeve
  • Special external paint finishes
  • Special line cord or connectors

controls heaters
Controls Heaters

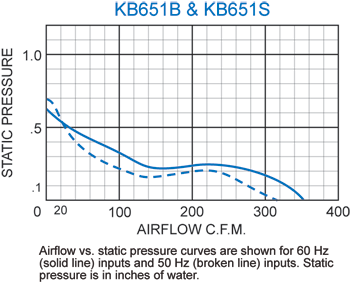

PERFORMANCE

KB651 Thin Fans performance chart

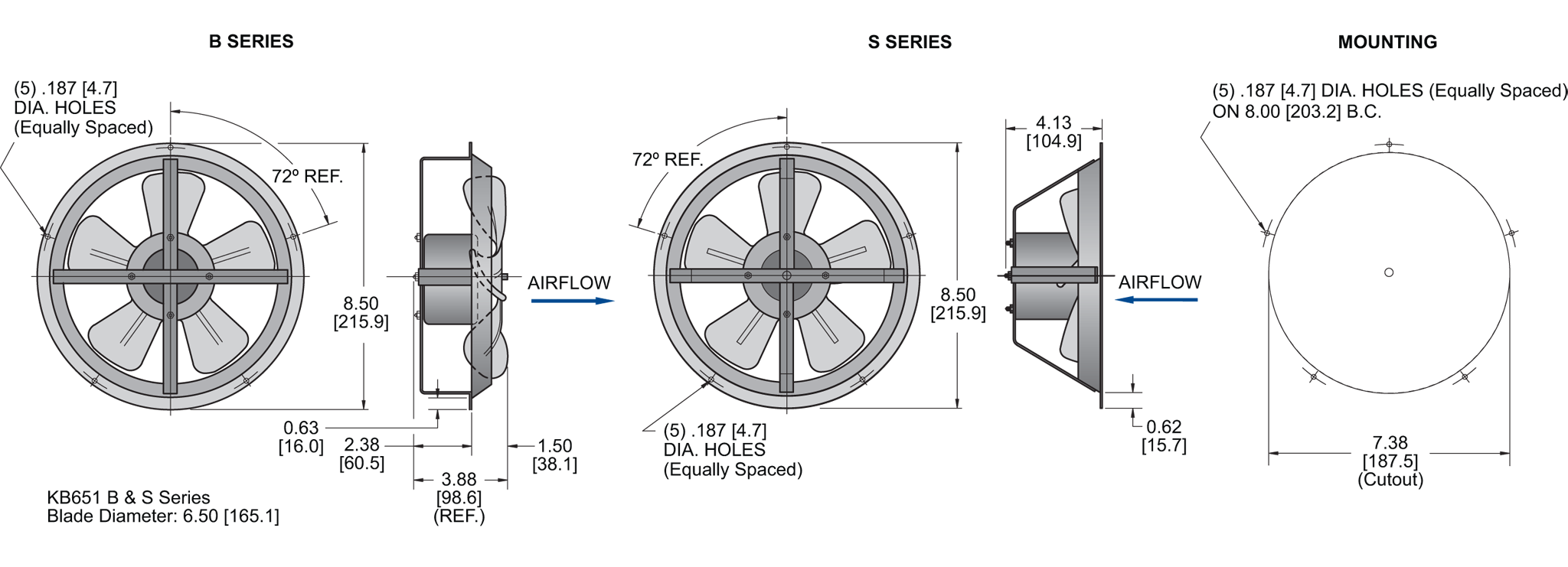

GENERAL ARRANGEMENT
Click on image for larger view

KB651 Thin Fans general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view

KB651 Thin Fans general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

HOW TO ORDER
Specify model number, adding suffix B or S. Example: KB651S. Unavailable in 230 VAC. Filter: Specify part number.

SIMILAR MODELS

ModelGuideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KB1000 Thin Fans12.50 x 12.50 x 2.50630-750
KB650 Thin Fans8.50 x 8.50 x 2.00180-210
KB800 Thin Fans10.50 x 10.50 x 1.75345-400
KB802 Thin Fans10.50 x 10.50 x 3.13760-840
KB900 Thin Fans11.50 x 11.50 x 2.25490-560
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS

  • Data Sheet
    KB651 Product Data Sheet [203Kb]
  • Literature
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Fans & Fantrays Quick-Sheet [87Kb]
    Airflow Switch Data Sheet [159Kb]
    Advantage Series Filter Fan Brochure [376Kb]
    Filter Fan Flyer [136Kb]
    Guardian Series NEMA 4 or 4X Filter Fan Flyer [1047Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
