Guardian Series KNP315FL NEMA 4 or NEMA 4X
Indoor/Outdoor Filter Fans

Product Photo Thumbnail
LightBox Active Image

Image 1 of 1
Select Model Type

Electrical (Volts/Hz):
NEMA Rating:
Air Flow:

ModelAirflow
Direction
NEMA
Rating
VoltageInput
Amps
Input
Watts
Max.
Airflow
CFM*
Unit
Airflow
CFM**
Noise
db(A)
Operating
Temp. °F
Approx. Weight
Min.Max.Lbs.Kg.
KNP315FLIntakeNEMA 41151.4517566361662-401224620.9
KNP315RFLExhaustNEMA 41151.4517566361664-401224620.9
K2NP315FLIntakeNEMA 42300.716049348678-401584620.9
K2NP315RFLExhaustNEMA 42300.716049348678-401584620.9
KNP315FLVIntakeNEMA 4X1151.4517566361662-401224620.9
KNP315RFLVExhaustNEMA 4X1151.4517566361664-401224620.9
K2NP315FLVIntakeNEMA 4X2300.716049348678-401584620.9
K2NP315RFLVExhaustNEMA 4X2300.716049348678-401584620.9

TECHNICAL DATA

Model
Number:
Airflow
Direction:
NEMA
Rating:
Voltage:Fan Airflow CFM*:Unit Airflow CFM**:
KNP315FLIntakeNEMA 4115663616
Input Amps: 1.45
Input Watts: 175
Noise db(A): 62
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 122
Approx. weight: 46 lbs. (21 kg)
KNP315RFLExhaustNEMA 4115663616
Input Amps: 1.45
Input Watts: 175
Noise db(A): 64
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 122
Approx. weight: 46 lbs. (21 kg)
K2NP315FLIntakeNEMA 4230493486
Input Amps: 0.7
Input Watts: 160
Noise db(A): 78
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 158
Approx. weight: 46 lbs. (21 kg)
K2NP315RFLExhaustNEMA 4230493486
Input Amps: 0.7
Input Watts: 160
Noise db(A): 78
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 158
Approx. weight: 46 lbs. (21 kg)
KNP315FLVIntakeNEMA 4X115663616
Input Amps: 1.45
Input Watts: 175
Noise db(A): 62
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 122
Approx. weight: 46 lbs. (21 kg)
KNP315RFLVExhaustNEMA 4X115663616
Input Amps: 1.45
Input Watts: 175
Noise db(A): 64
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 122
Approx. weight: 46 lbs. (21 kg)
K2NP315FLVIntakeNEMA 4X230493486
Input Amps: 0.7
Input Watts: 160
Noise db(A): 78
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 158
Approx. weight: 46 lbs. (21 kg)
K2NP315RFLVExhaustNEMA 4X230493486
Input Amps: 0.7
Input Watts: 160
Noise db(A): 78
Min. Operating Temp. °F: -40
Max. Operating Temp. °F: 158
Approx. weight: 46 lbs. (21 kg)
  • Standard Features
  • Accessories & Options
  • Performance
  • Arrangement
  • Similar Models
  • Documents
  • 360° View
• Baked Powder Finish
Heavy-duty steel shell with powder-baked finish (ANSI 61 gray). Custom color options are available.
• Integrated Fan Guards
• Integrated Sealing Gasket
• IP55 Filter Protection
• NEMA 4 or 4X Rating Maintained (if used with provided filter)
• Secure Mounting
• Six-Foot [1.8m] (minimum) 3-Wire Power Cord
• Stainless Steel Shell (NEMA 4X models)
For applications in corrosive or other hostile environments such as those requiring Internal Corrosion Resistant Coatings, especially where chemical/moisture combinations are present.
• UL shielded ball bearing motors
• Washable, Reuseable Filter
• UL/CUL Listed

• Other voltages and frequencies
• Reversed Airflow Direction
To order reversed airflow, add "R" after the series number. Example: KNP225RFL
• Replacement Filters
All Kooltronic filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. These filters are reusable (they may be washed and recoated with the appropriate filter recoating adhesive). Replacements are available for those that become damaged or otherwise non-serviceable.
• Stainless Steel Shell

KNP315FL Filter Fans performance chart
Click on image for larger view
General Arrangement Thumbnail
LightBox Active Image

Image 1 of 1

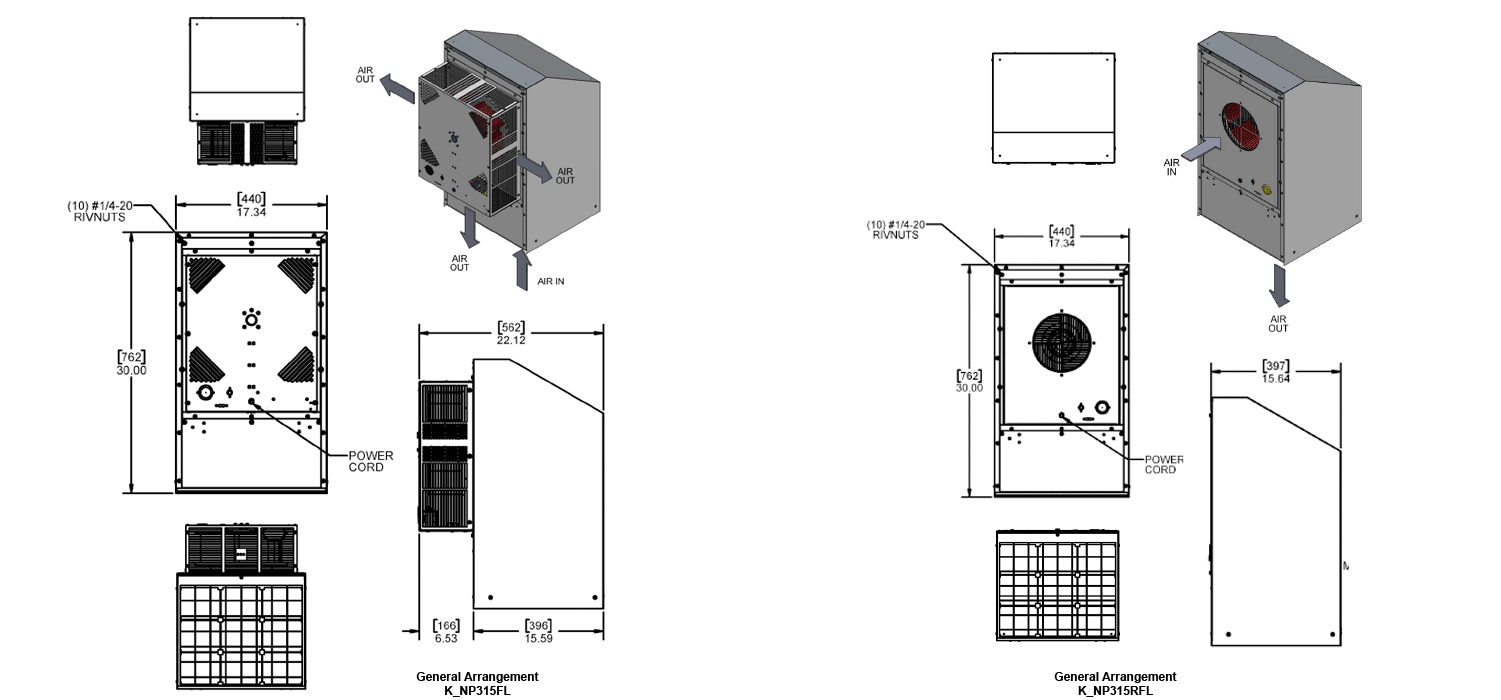

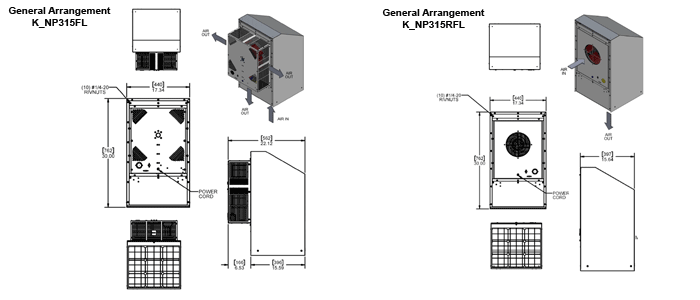

KNP315FL Filter Fans general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

Dimensions, inches [mm], are for reference only and subject to change.
ModelGuideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KNP355FL Filter Fans30.00 x 17.34 x 24.12748-1319
*See model specifics for drawings, dimensions, mounting or cutout plans.
  • 3-D Solid Model
    KNP315FL(V) 3D Solid Model [13130Kb]
    KNP315RFL(V) 3D Solid Model [13791Kb]
  • Data Sheet
    Guardian Series Filter Fan KNP315 Data Sheet [815Kb]
  • GA Drawing
    Guardian Series KNP315FL NEMA 4 or 4X Indoor/Outdoor Filter Fans Drawing [249Kb]
    Guardian Series KNP315RFL NEMA 4 or 4X Indoor/Outdoor Filter Fans Drawing [221Kb]
  • Installation Instructions
    Guardian Series Filter Fan KNP315 Installation Instructions [513Kb]
  • Literature
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Fans & Fantrays Quick-Sheet [87Kb]
    Airflow Switch Data Sheet [159Kb]
    Advantage Series Filter Fan Brochure [376Kb]
    Filter Fan Flyer [136Kb]
    Guardian Series NEMA 4 or 4X Filter Fan Flyer [1047Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    Guardian Series Filter Fan KNP315 Operator's Manual [8247Kb]

Double-click for a full-screen 360° view

Pictured: KNP315RFLV model (Reverse Flow, NEMA 4X). Colors and effects in the images may deviate from original depending on your screen's resolution.
