K7BCE192/40A DC Motorized Impellers
Download
Product
Information
TECHNICAL DATA
Click to
Request
Quote
Model
CFM
@ 0"
S.P.
Cutoff S.P.
Volts
Amps
Watts
Capacitor
µF
RPM
dBA
Min. Temp
Max. Temp
K7BCE192/40A
312
2.58
24VDC
3.3
79
N/A
3075
67
-4°F/-20°C
158°F/70°C
Click on image for larger view
TECHNICAL DATA
Click to
Request
Quote:
Model
Number:
K7BCE192/40A
CFM @ 0" S.P.:
N/A
Cutoff S.P.:
24VDC
Volts:
312
Amps:
2.58
Watts:
3075
Capacitor µF:
3.3
RPM:
67
dBA:
79
Min. Temp:
-4°F/-20°C
Max. Temp:
158°F/70°C
STANDARD FEATURES
312 CFM Capacity
Compact size
Controlled by 0-10VDC or PWM signal
External rotor design
Low noise level
Locked rotor protection
Nominal voltage 24VDC (18-36VDC)
Precision balanced
Precision ball bearing motors
Reverse polarity protection
Soft start
Tachometer output (open collector)
ACCESSORIES AND OPTIONS
Inlet Ring Part Number: 1114-08

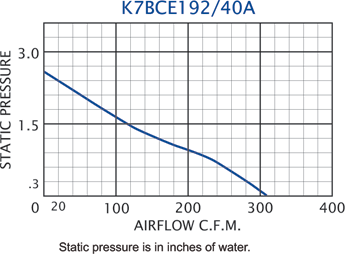

PERFORMANCE

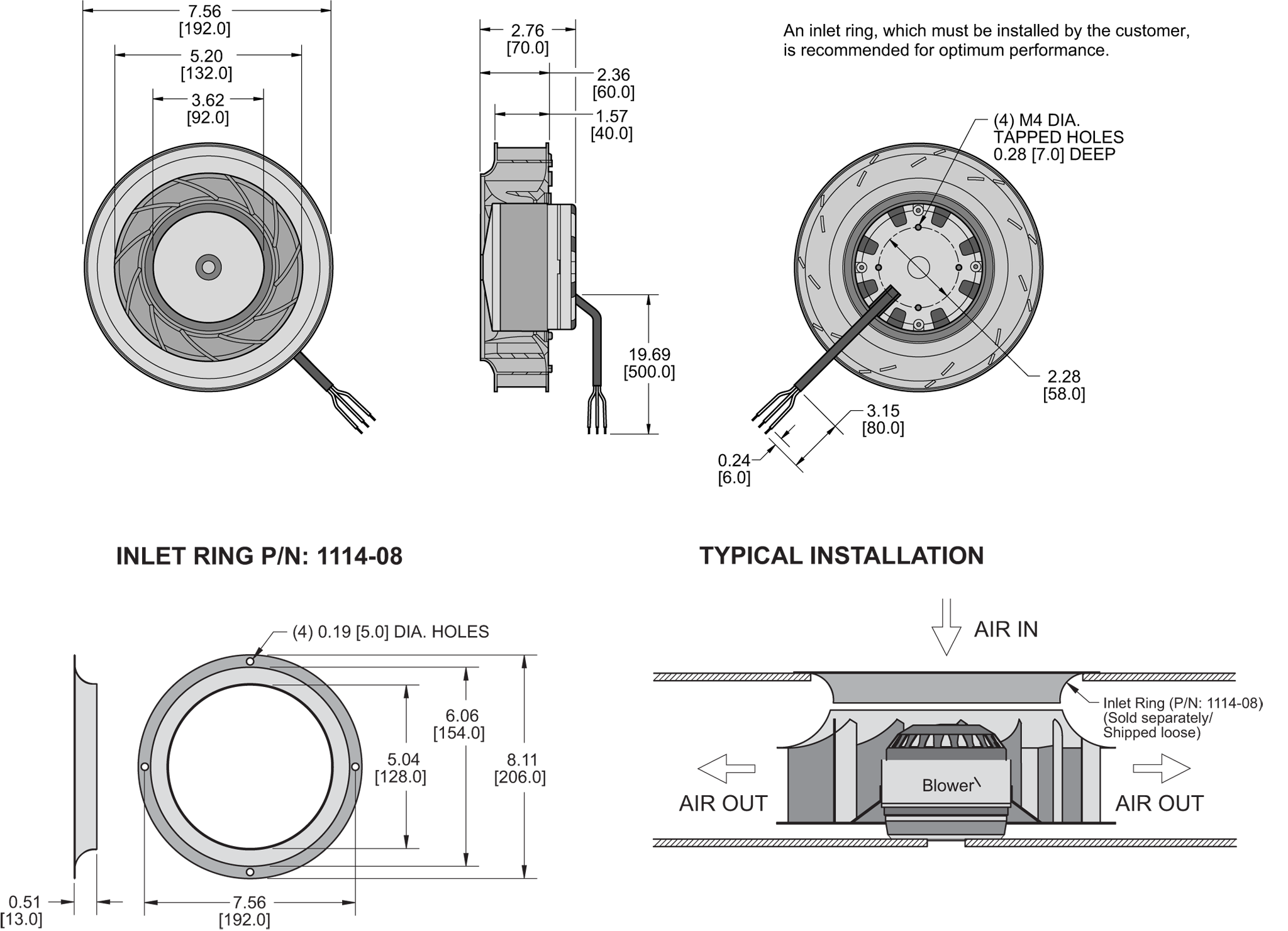

GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.

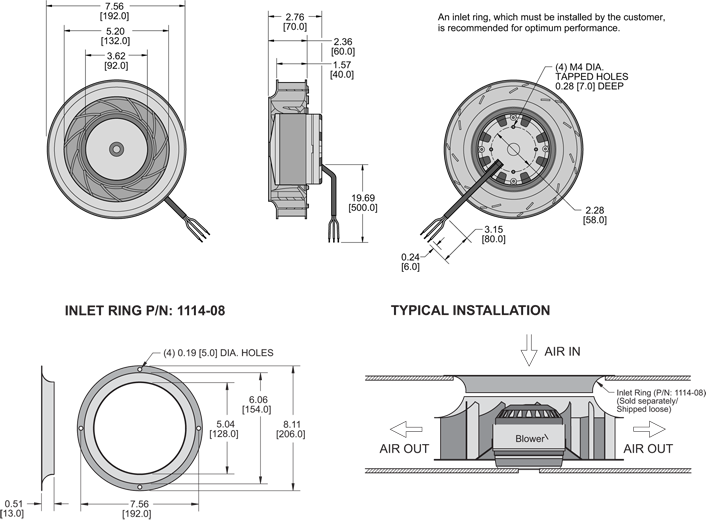

GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
DOCUMENTS
Data Sheet
K7BCE192-40A Impeller Product Data Sheet [144Kb]
Literature
Increasing the Lifespan and Reliability of Electrical Components [212Kb]
Kooltronic Design Guide/Catalog (215 pages) [24440Kb]
Kooltronic Standard Warranty [55Kb]
NEMA Enclosure Ratings [91Kb]
Short-Form Catalog (16 pages) [897Kb]
Basic Blower Quick-Sheet [86Kb]
Impeller Blower New Product Release [335Kb]
Airflow Switch Data Sheet [159Kb]
Packaged Blower Quick-Sheet [92Kb]
