KBC4R355/127A 4-Pole Motorized Impellers

download product information Download
Product
Information
TECHNICAL DATA

Click to
Request
Quote
ModelCFM
@ 0"
S.P.
Cutoff S.P.VoltsAmpsWattsCapacitor
µF
RPMdBAMin. TempMax. TempSpare and
Replacement
Parts
Request RFQ linkKBC4R355/127A20702.1115/604.045030.0153078113°F/50°COrder Parts

Click on image for larger view
KBC4R355/127A Impeller photo

TECHNICAL DATA

Click to
Request
Quote:
Request RFQ link
Model
Number:
KBC4R355/127A
CFM @ 0" S.P.:2070
Cutoff S.P.:2.1
Volts:115/60
Amps:4.0
Watts:450
Capacitor µF:30.0
RPM:1530
dBA:78
Min. Temp:
Max. Temp:113°F/50°C
Spare and Replacement PartsOrder Parts

NOTE: This unit requires a capacitor for operation. Capacitors are sold separately and shipped loose for field installation by customer.

An Inlet Ring is recommended for optimum performance. These are sold separately, to be installed by the customer.

STANDARD FEATURES

  • 2070 CFM Capacity
  • Available in 115 VAC, 60Hz
  • Compact size
  • External rotor design
  • Low noise level
  • Normally in-stock
  • Precision balanced
  • Precision ball bearing motors

ACCESSORIES AND OPTIONS

  • Click for more info.Automatic Speed Control (Basic Blowers)
  • Capacitor Part Number: 0452-88
  • Inlet Ring Part Number: 1114-12

PERFORMANCE

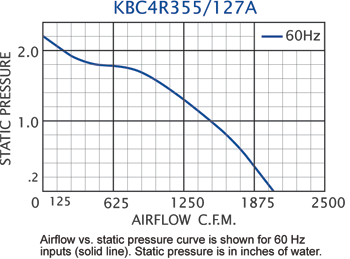

KBC4R355/127A Impeller performance chart

GENERAL ARRANGEMENT
Click on image for larger view

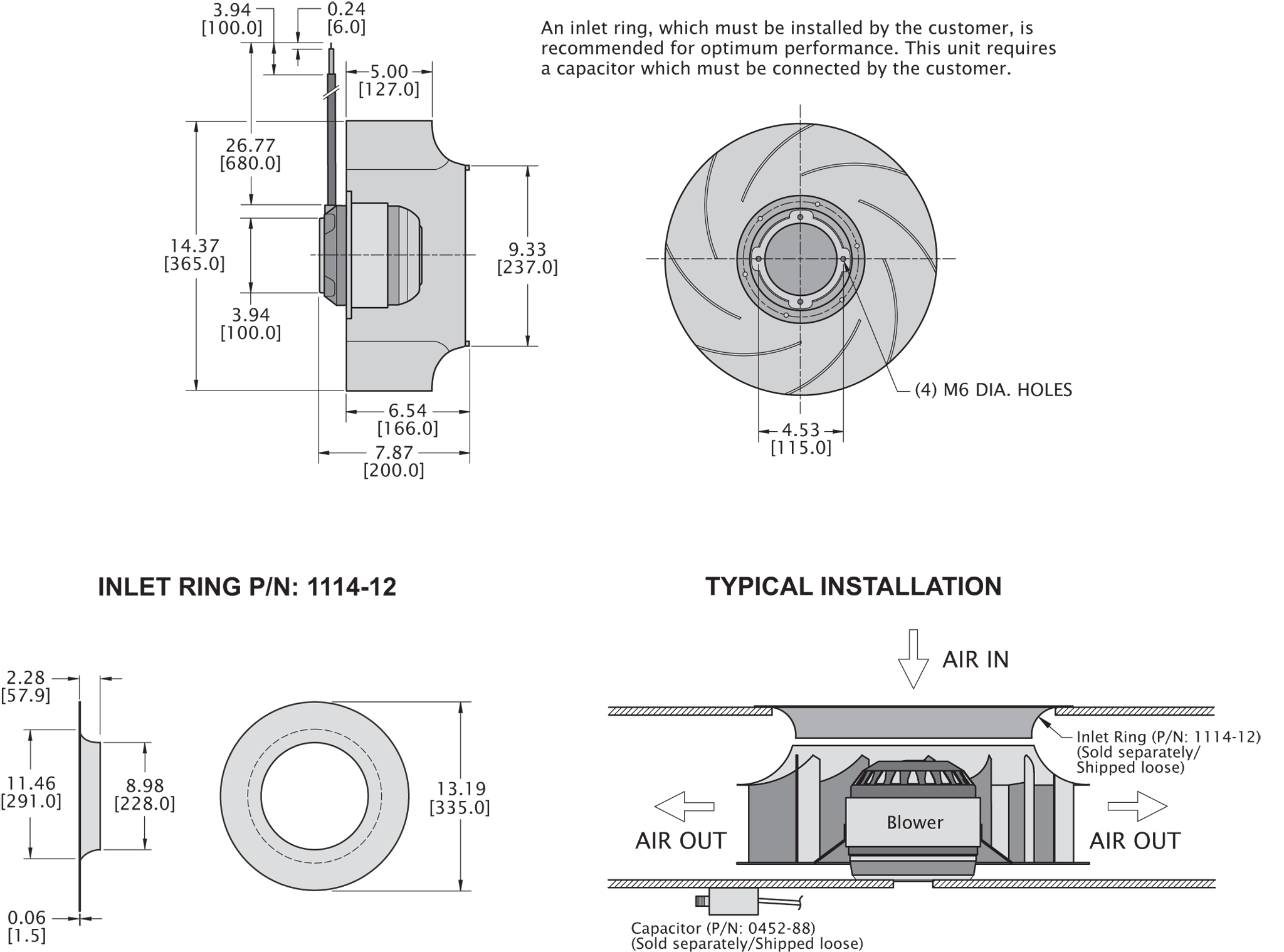

KBC4R355/127A Impeller general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view

KBC4R355/127A Impeller general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
