KBC2E250/56B 2-Pole Motorized Impellers
Please note: this model (KBC2E250/56B) has been discontinued and replaced with model
KBC2E250/50A
.
Close
Image 1 of 1
Maximize image
Restore image
Select Model Type
Electrical (Volts/Hz):
115/60
115/50
Model
CFM
@ 0"
S.P.
Cutoff S.P.
Volts
Amps
Watts
Capacitor
µF
RPM
dBA
Min. Temp
Max. Temp
KBC2E250/56B
1008
3.3
115/60
2.14
245
25.0
3095
77
-40°F/-40°C
140°F/60°C
876
2.4
115/50
1.59
182
25.0
2720
74
-40°F/-40°C
140°F/60°C
TECHNICAL DATA
Model
Number:
CFM @ 0" S.P.
Volts
Watts
KBC2E250/56B
1008
115/60
245
Cutoff S.P. (IWG): 3.3
Amps: 2.14
Capacitor: 25.0 µF
RPM: 3095
Noise db(A): 77
Min. Operating Temp. °F: -40°F/-40°C
Max. Operating Temp. °F: 140°F/60°C
KBC2E250/56B
876
115/50
182
Cutoff S.P. (IWG): 2.4
Amps: 1.59
Capacitor: 25.0 µF
RPM: 2720
Noise db(A): 74
Min. Operating Temp. °F: -40°F/-40°C
Max. Operating Temp. °F: 140°F/60°C
Standard Features
Accessories & Options

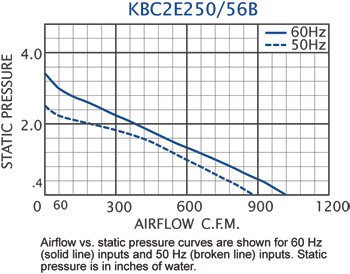

Performance
Arrangement
Similar Models
Documents
•
1008 CFM Capacity
•
Available in 115 VAC, 50/60Hz
•
Class F, thermally protected
•
Compact size
•
External rotor design
•
Galvanized Steel impeller
•
Low noise level
•
Normally in-stock
•
Precision balanced
•
Precision ball bearing motors
•
UL Recognized
UL Recognized. UL/CUL Listed models are available at added cost.
•
Automatic Speed Control (Basic Blowers)
•
Capacitor Part Number: 0452-32
•
Inlet Ring Part Number: 1114-09
Click on image for larger view
Close
Image 1 of 1
Maximize image
Restore image

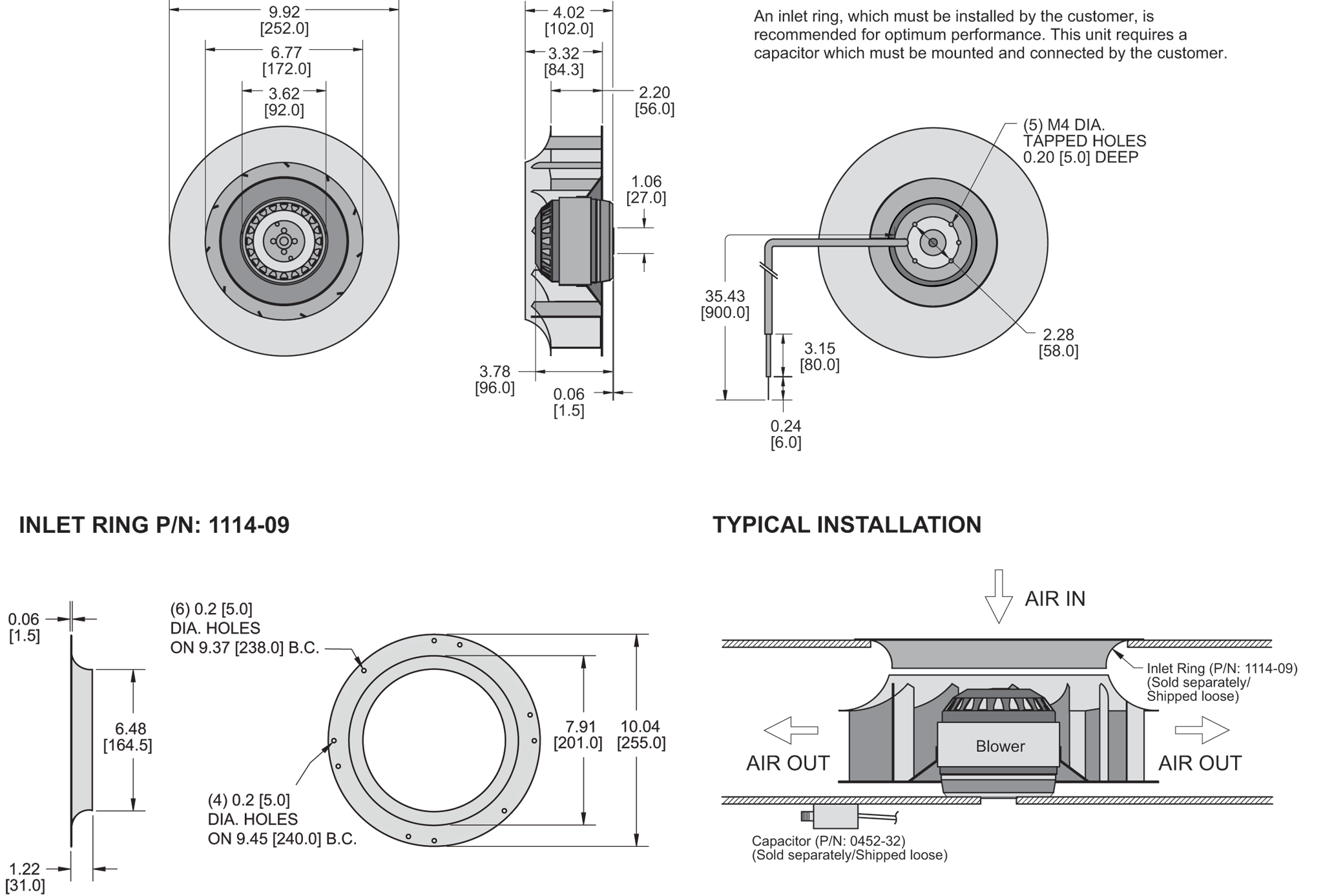

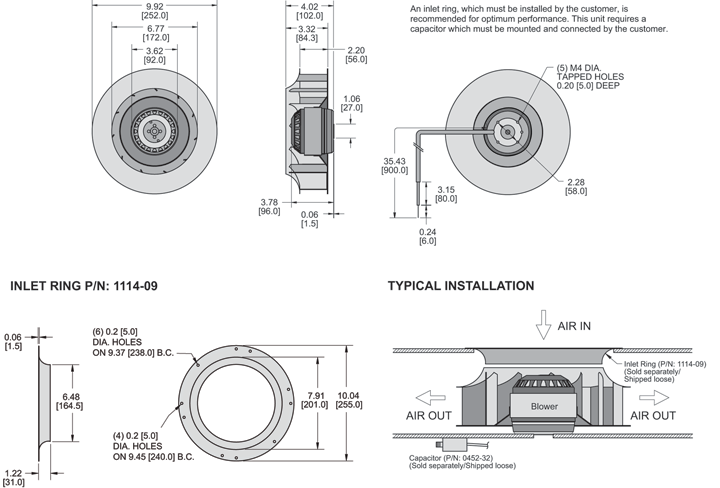

Dimensions, inches [mm], are for reference only and subject to change.
Dimensions, inches [mm], are for reference only and subject to change.
Model
Guideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KBC2E250/50A Impeller
9.92 x 9.92 x 4.02
865-994
*See model specifics for drawings, dimensions, mounting or cutout plans.
