KP4E280/80 Pagoda Packaged Impeller Blowers

Product Photo Thumbnail
LightBox Active Image

Image 1 of 1

ModelTypeCFM
@ 0"
S.P.
Cutoff S.P.dBAAmpsWattsApprox. Weight
Lbs.Kgs.
KP4E280/804-Pole6301.1865.80.94101167.3

TECHNICAL DATA

ModelTypeCFM @ 0" S.P.Watts
KP4E280/804-Pole630101
Cutoff S.P. (IWG): 1.18
Noise db(A): 65.8
Amps: 0.94
Approx. weight: 16 lbs. (7 kg)
  • Standard Features
  • Performance
  • Arrangement
  • Similar Models
  • Documents
Profile Series Photo

Versatile Mounting: Mount on cabinet's top, side or even bottom.

• Baked Powder Finish
Heavy-duty steel shell with powder-baked finish (ANSI 61 gray). Custom color options are available.
• Ball-bearing Motors
All blower motors are UL/CSA Recognized and include automatic-reset thermal overload protection and double-sealed or double-shielded precision ball bearings. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C). Tube axial fans are rated to perform at 14°F (-10°C) to 158°F (70°C) and are designed to meet UL, CSA and VDE.
• Capacity 630 CFM
• Compact size
• Heavy-gauge steel shell
• Integral finger guards
• Low noise level
• Occupies no internal cabinet space
• Precision balanced external rotor design
• Three foot [0.9m] (minimum) 3-wire power cord

KP4E280/80 Pagoda performance chart
Click on image for larger view
General Arrangement Thumbnail
LightBox Active Image

Image 1 of 1

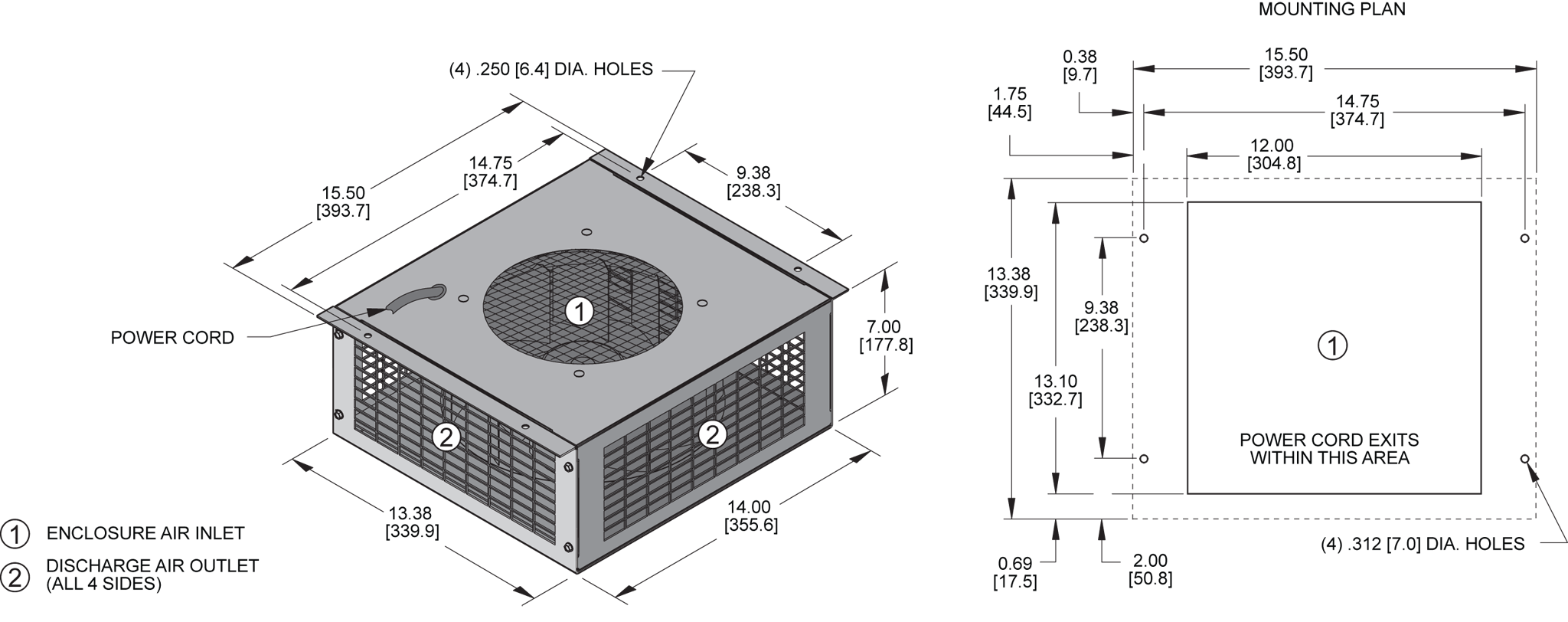

KP4E280/80 Pagoda general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

Dimensions, inches [mm], are for reference only and subject to change.
Similar Models for this product family are not currently available. Please contact Customer Service for more information.
  • Data Sheet
    kp4e280-80 Product Data Sheet [107Kb]
  • Literature
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Fans & Fantrays Quick-Sheet [87Kb]
    Airflow Switch Data Sheet [159Kb]
    Advantage Series Filter Fan Brochure [376Kb]
    Filter Fan Flyer [136Kb]
    Guardian Series NEMA 4 or 4X Filter Fan Flyer [1047Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
HOW TO ORDER
Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2P4E280/80.
