Profile Series DP50 External Mount
Air-Cooled Panel-Mounted Air Conditioners

These products are discontinued and no longer in production.
We recommend the Guardian DP50 as a possible alternative.
download product information
Download
Product
Information
Model
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H

AmbientTemp.

Volts
Hz
**
Running
Amps
Approx.
Weight
ºF
ºC
Max./Min. Max./Min.
lbs
kg
K2A3C14DP50L
Listed
14000
12400
131/-20
55/-29
230
60
12.7
207
94
** Rating shown is for operation at maximum ambient temperature.
Air Conditioners using R22 refrigerant no longer being manufactured after January 1, 2010.

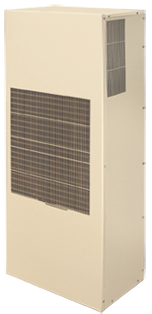

Profile Series DP50 Air Conditioner
ul logo TYPE 12 & 3R
MAINTAINED


STANDARD FEATURES


ACCESSORIES AND OPTIONS

enclosure lights
Enclosure Lights



  AIRFLOW & DIMENSION PERFORMANCE CHART

  EXTERNAL MOUNTING DRAWING


GENERAL ARRANGEMENT DRAWING (click and drag to pan)
Dimensions, inches [mm], are for reference only and subject to change.



SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
BTU/H Range
Profile DP53
52.60 x 22.14 x 12.94
18000
Profile DP60
60.22 x 24.02 x 12.94
26000
*Includes flanges where applicable. See model specifics for
drawings, dimensions, mounting or cutout plans.



DOCUMENTS
TypeDescriptionSize
2-D Drawing of the Mounting Plan K3NA6C14DP50L-LV 2-D Drawing of the Mounting Plan - NEW33Kb
2-D Drawing of the Mounting Plan K2NA6C14DP50L and/or LV Drawing of the Mounting Plan - NEW37Kb
3-D Solid Model K3NA6C14DP50L-LV 3-D Solid Model - NEW18755Kb
3-D Solid Model K2NA6C14DP50L and/or LV Solid Model - NEW5423Kb
Data Sheet KLLC100-480 Lead-Lag Controller Product Data Sheet58Kb
Data Sheet Guardian/GuardianX Series DP50 Product Data Sheet - NEW149Kb
Data Sheet Guardian/GuardianX Series 480V DP50 Data Sheet - NEW247Kb
GA Drawing Guardian/GuardianX Series 480V DP50 General Arrangement Drawing - NEW87Kb
GA Drawing Guardian/GuardianX Series DP50 General Arrangement Drawing - NEW211Kb
GA Drawing Guardian/GuardianX Series DP50 General Arrangement Drawing - NEW76Kb
Installation Instructions Guardian/GuardianX Series 480V DP50 Installation Instructions (2 pages) - NEW169Kb
Installation Instructions Guardian/GuardianX Series DP50 Installation Instructions (2 pages) - NEW170Kb
Literature Air Conditioner Quick-Sheet - NEW105Kb
Literature Condensation and Electronics - NEW3983Kb
Literature Electronic Enclosure Cooling With Special Purpose Air Conditioners254Kb
Literature Hazardous Location Series White Paper234Kb
Literature Increasing the Lifespan and Reliability of Electrical Components - NEW212Kb
Literature KLLC100 Lead-Lag Controller (1 page)58Kb
Literature Guardian 480 Volt Series Brochure - NEW424Kb
Literature Guardian Series Brochure - NEW256Kb
Literature Kooltronic Design Guide/Catalog (215 pages) - NEW24440Kb
Literature Kooltronic Standard Warranty55Kb
Literature Short-Form Catalog (16 pages)897Kb
Operator's Manual KLLC100 Lead-Lag Controller38Kb
Operator's Manual KLLC480 Lead-Lag Controller79Kb
Operator's Manual Guardian/GuardianX Series 480V DP50 Operator's Manual - NEW540Kb
Operator's Manual Guardian/GuardianX Series DP50 Operator's Manual - NEW402Kb
Wiring Diagram Guardian/GuardianX Series 480V DP50 Wiring Diagram (Ladder) - NEW78Kb
Wiring Diagram Guardian/GuardianX Series 480V K3NA6C14DP50L Wiring Diagram (Point-to-Point) - NEW89Kb
Wiring Diagram Guardian/GuardianX Series DP50 Wiring Diagram (Ladder w/ Speed Control)55Kb
Wiring Diagram Guardian/GuardianX Series K2NA6C14DP50L Wiring Diagram (Point-to-Point)55Kb
