Guardian DP60 Air Conditioner

TECHNICAL DATA

Click to Request Quote	Model	NEMA Rating	UL/CUL Listed or Recognized	BTU/H Capacity	95/95 Rating BTU/H	Ambient Temp.	Volts	Hz	Running Amps	Approx. Weight	Spare and Replacement Parts
°F	°C
Max./Min.	Max./Min.	lbs	kg
	K2NA6C26DP60L	4	Listed	26000	18279	129/-20	54/-28	230	60	24.7	262	120	Order Parts
	K3NA6C26DP60L	4	Listed	26000	22242	125/-20	52/-28	480	60	8.61	262	120	Order Parts

Click to
Request
Quote

Model

NEMA
Rating

UL/CUL
Listed or
Recognized

BTU/H
Capacity

95/95
Rating
BTU/H

Ambient Temp.

Volts

Running
Amps

Approx.
Weight

Spare and
Replacement
Parts

°F

°C

Max./Min.

lbs

K2NA6C26DP60L

Listed

26000

18279

129/-20

54/-28

230

24.7

262

120

Order Parts

K3NA6C26DP60L

Listed

26000

22242

125/-20

52/-28

480

8.61

262

120

Order Parts

Rating shown is for operation at maximum ambient temperature.

Click on image for larger view

NEMA
TYPE 12, 3R & 4
MAINTAINED

TECHNICAL DATA

Click to Request Quote:
Model Number:	K2NA6C26DP60L	K3NA6C26DP60L
NEMA Rating:	4	4
UL/CUL Listed or Recognized:	Listed	Listed
BTU/H Capacity:	26000	26000
95/95 Rating BTU/H:	18279	22242
Ambient Temp °.F Max./Min.:	129/-20	125/-20
Ambient Temp °.C Max./Min.:	54/-28	52/-28
Volts:	230	480
Hz:	60	60
Running Amps:	24.7	8.61
Approx. Weight lbs.:	262	262
Approx. Weight kg.:	120	120
Spare and Replacement Parts	Order Parts	Order Parts

Rating shown is for operation at maximum ambient temperature.

This model is also available with a NEMA 4X rating as the Guardian-X DP60LV which includes
Internal Corrosion Protection and Stainless Steel Shell as standard features.

STANDARD FEATURES

ACCESSORIES AND OPTIONS

For Guardian/GuardianX DP60 models the filter part number is 19381F. The DP60 uses two filters.

Enclosure Lights

AIRFLOW
Click on image for larger view

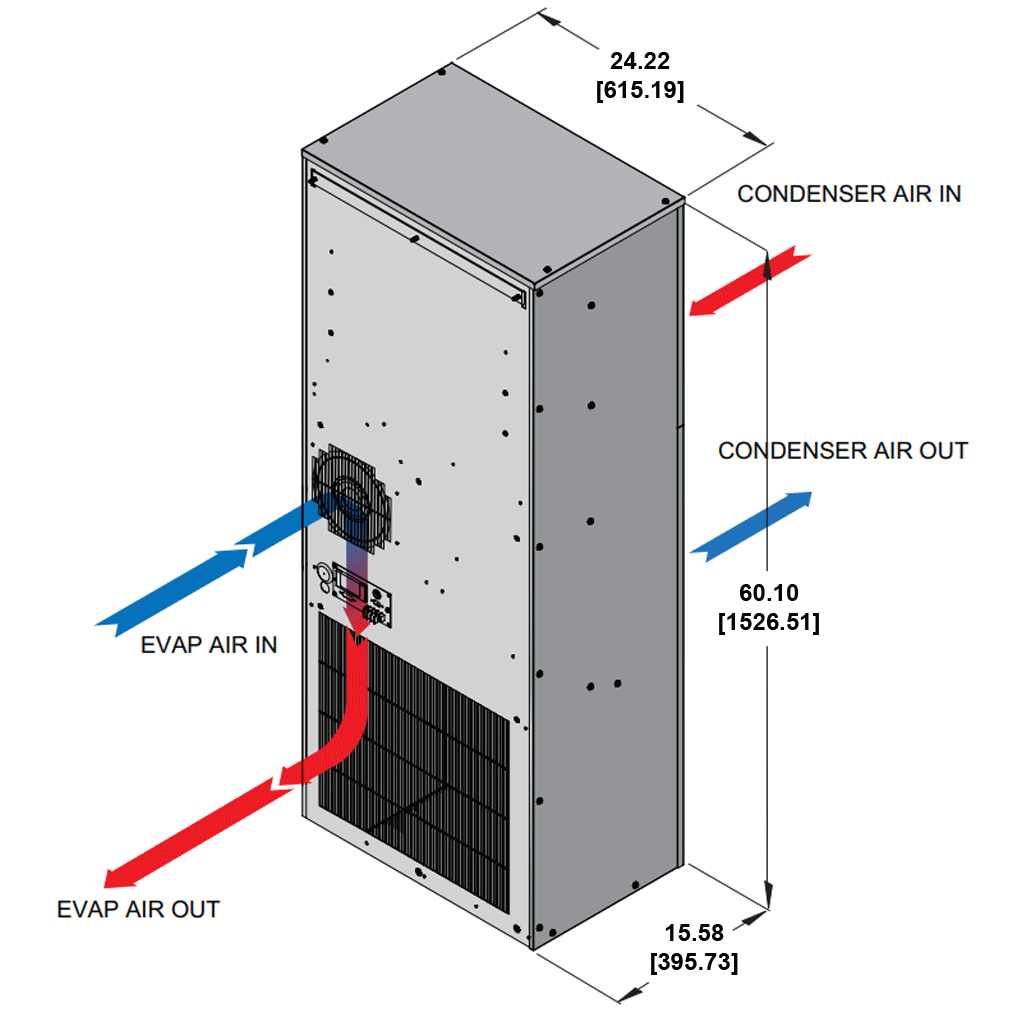

Guardian DP60 Air Conditioner isometric illustration

PERFORMANCE

Guardian DP60 Air Conditioner performance chart #2

Model	Guideline Dimensions (H x W x D)*	BTU/H Rating
Guardian DP50	50.05 x 20.14 x 12.05	13100-14000
Guardian DP50LV	50.05 x 20.14 x 12.05	13100-14000
Guardian DP53	52.60 x 22.14 x 13.02	14400-18000
Guardian DP53LV	52.60 x 22.14 x 13.02	14400-18000
*See model specifics for drawings, dimensions, mounting or cutout plans.

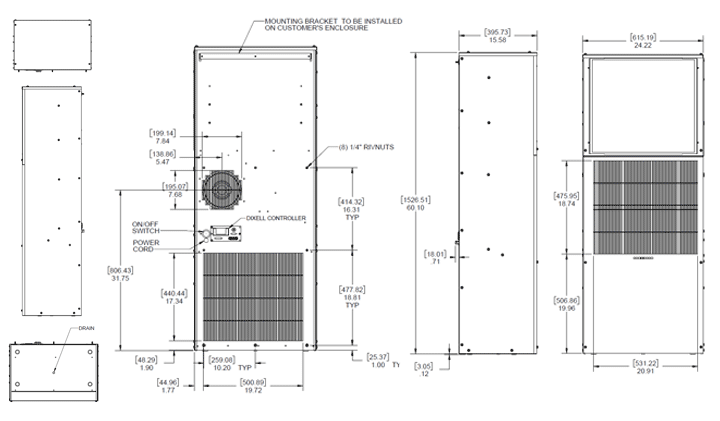

	Guardian/GuardianX Series 480V DP60 General Arrangement Drawing [84Kb]
	Guardian/GuardianX Series 480V DP60 General Arrangement Drawing W/ Programmable T-stat [95Kb]

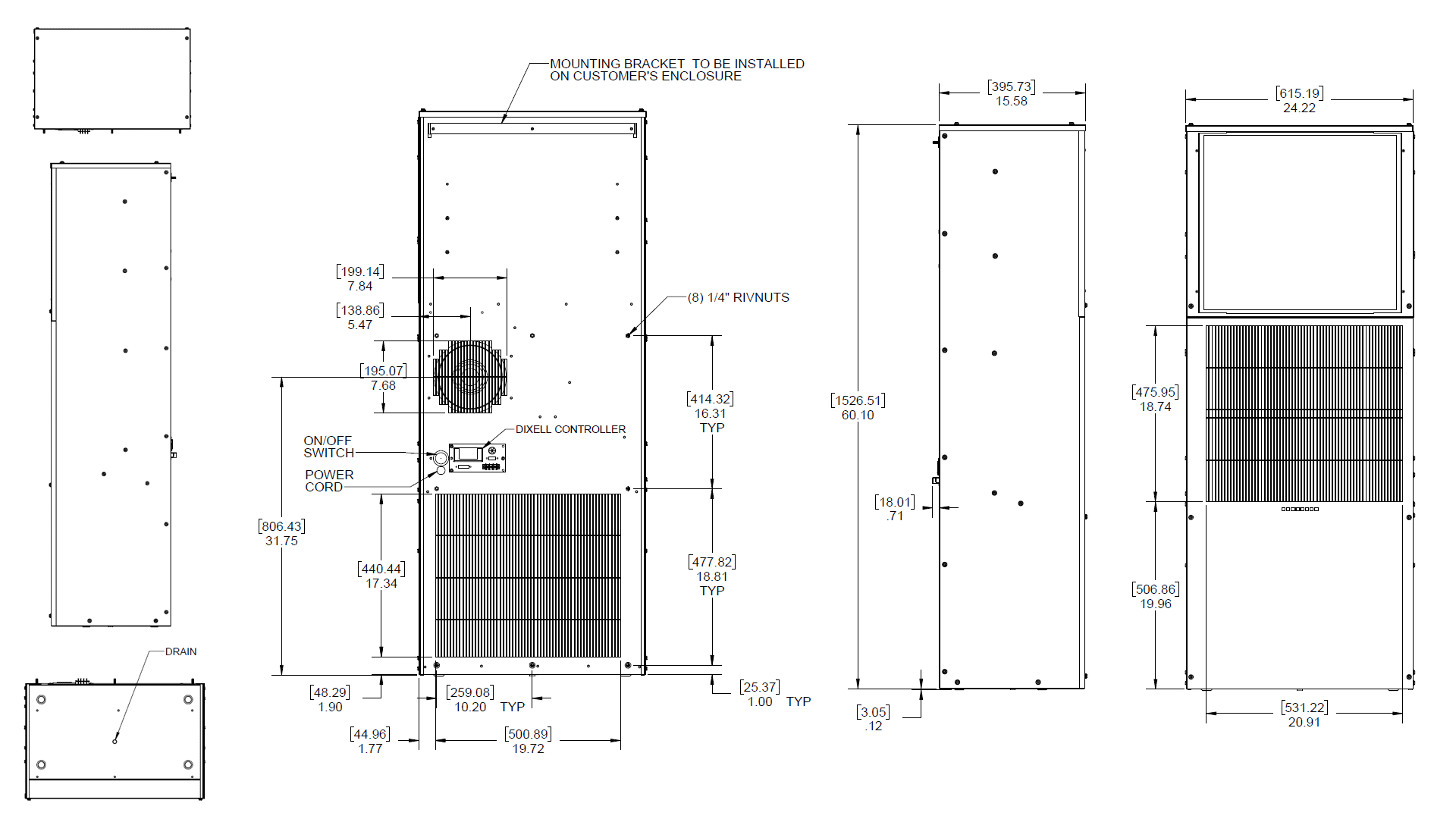

	Guardian/GuardianX Series DP60 General Arrangement Drawing [236Kb]
