KP500 Packaged Fan

download product information Download
Product
Information
TECHNICAL DATA

Click to
Request
Quote
ModelVolts/HzCFM @
0" S.P.
RPM
Nominal
AmpsWattsApprox. WeightSpare and
Replacement
Parts
RunL.R.Lbs.Kg.
Request RFQ linkKP500115/6020030000.60.95594.1Coming Soon
Request RFQ linkKP500115/5016027000.60.95594.1Coming Soon
Request RFQ linkK2P500230/6020030000.60.95594.1Coming Soon
Request RFQ linkK2P500230/5016027000.60.95594.1Coming Soon
Add model number suffix "A" for intake, "B" for exhaust.

Click on image for larger view
KP500 Packaged Fan photo

TECHNICAL DATA

Click to
Request
Quote:
Request RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ link
Model
Number:
KP500KP500K2P500K2P500
Volts/Hz:115/60115/50230/60230/50
CFM @ 0" S.P.:200160200160
Nominal RPM:3000270030002700
Amps Run:0.60.60.60.6
Amps L.R.:0.90.90.90.9
Watts:55555555
Weight Lbs.:9999
Weight Kg.:4.14.14.14.1
Spare and Replacement PartsComing SoonComing SoonComing SoonComing Soon
Add model number suffix "A" for intake, "B" for exhaust.

ADDITIONAL SPECIFICATIONS

ENCLOSURES: Precision-engineered baked powder coated heavy-gauge steel construction. KP500: 17 inches [431.8mm] panel width. EIA-Notched flanges extend 17-inch [431.8mm] blower enclosure to 19-inch [482.6mm] panel width.

POWER CORD: 115V, 60 Hz. models include a 3-foot [0.9m] (minimum) three-wire cord with molded plug, internally grounded and securely locked to case by strain relief bushing. 230 VAC, 50/60 Hz units are supplied without plugs.

GRILLE/GUARD: KP500 models include a rear guard and an attractive stainless steel grille with knurled captive fasteners for easy removal. Grilles and guards comply with OSHA and UL safety standards.

FILTER: Furnished with each packaged fan.

STANDARD FEATURES

  • 200 CFM Capacity
  • Exceptionally quiet
  • Versatile mounting and adaptability
  • Rugged construction with baked powder finish
  • UL/CSA Ball-Bearing Motors
    • All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
  • Attractive stainless steel grilles
  • All models can pressurize or exhaust

ACCESSORIES AND OPTIONS

  • Click for more info.Adapters
  • Click for more info.Automatic Speed Control (Packaged Fans)
  • Filters
    • All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
  • Filter Recoating Adhesive
    • This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
  • Click for more info.Grille Assembly for Packaged Fans
  • Special external paint finishes
  • Special line cord or connectors

controls heaters
Controls Heaters
PERFORMANCE

KP500 Packaged Fan performance chart

GENERAL ARRANGEMENT
Click on image for larger view

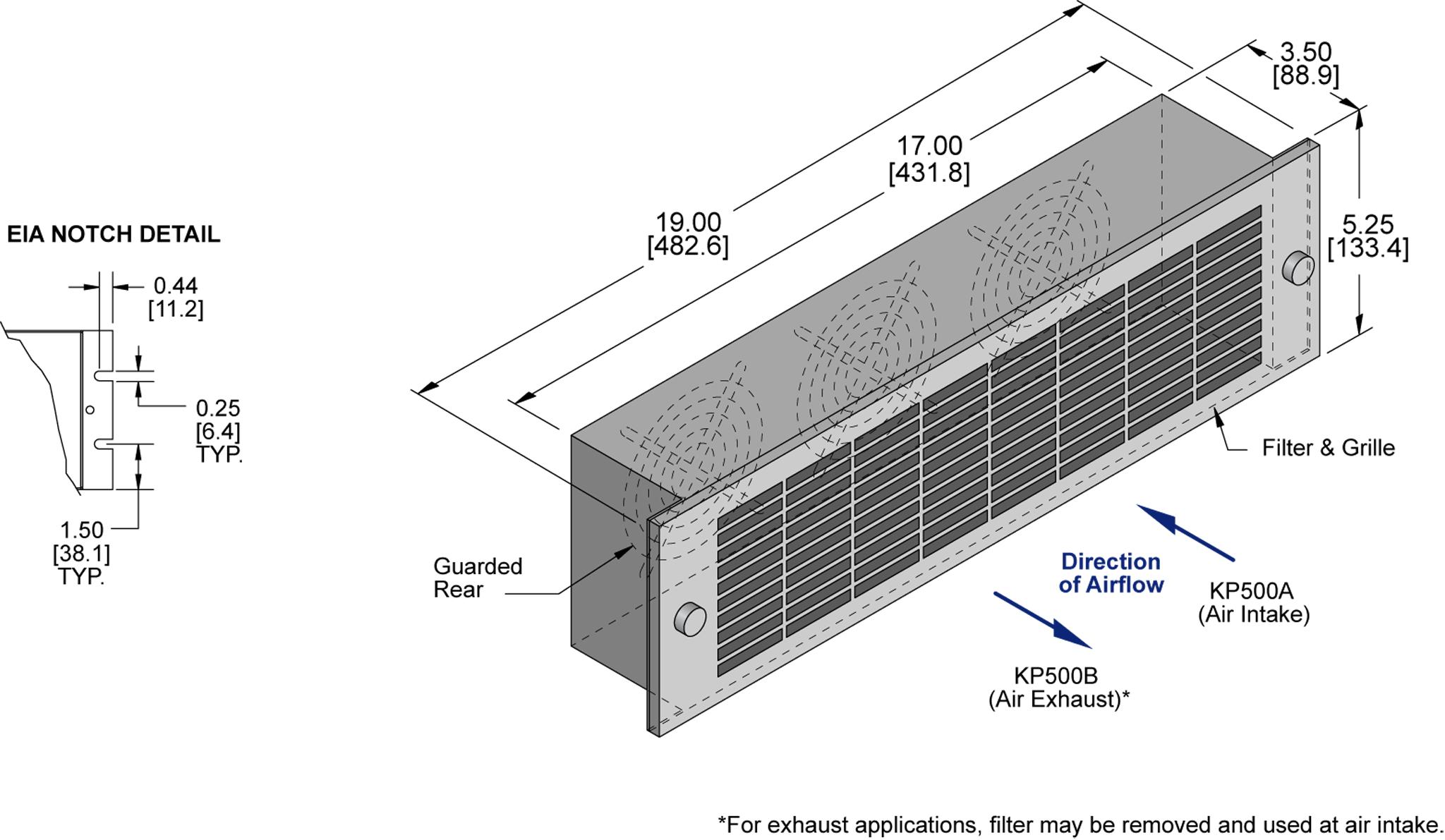

KP500 Packaged Fan general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view

KP500 Packaged Fan general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

HOW TO ORDER
Specify model number, adding discharge suffix A (intake) or B (exhaust). Example: KP500A. For 230 VAC operation, add a 2 after the K. Example: K2P500A. Filter: Specify part number.

SIMILAR MODELS

ModelGuideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KP875 Packaged Fan8.75 x 19.00 x 4.25385-420
*See model specifics for drawings, dimensions, mounting or cutout plans.
