K2BC2E225/40A 2-Pole Motorized Impellers

download product information

Download
Product
Information

TECHNICAL DATA

Click to Request Quote	Model	CFM @ 0" S.P.	Cutoff S.P.	Volts	Amps	Watts	Capacitor µF	RPM	dBA	Min. Temp	Max. Temp
	K2BC2E225/40A	559	1.8	230/60	0.55	100	2	2610	68	-4°F/-20°C	140°F/60°C
	K2BC2E225/40A	539	1.7	230/50	0.41	91	2.5	2465	65	-4°F/-20°C	140°F/60°C

Click on image for larger view

K2BC2E225/40A Impeller photo

TECHNICAL DATA

Click to Request Quote:
Model Number:	K2BC2E225/40A	K2BC2E225/40A
CFM @ 0" S.P.:	2	2.5
Cutoff S.P.:	230/60	230/50
Volts:	559	539
Amps:	1.8	1.7
Watts:	2610	2465
Capacitor µF:	0.55	0.41
RPM:	68	65
dBA:	100	91
Min. Temp:	-4°F/-20°C	-4°F/-20°C
Max. Temp:	140°F/60°C	140°F/60°C

STANDARD FEATURES

ACCESSORIES AND OPTIONS

PERFORMANCE

K2BC2E225/40A Impeller performance chart

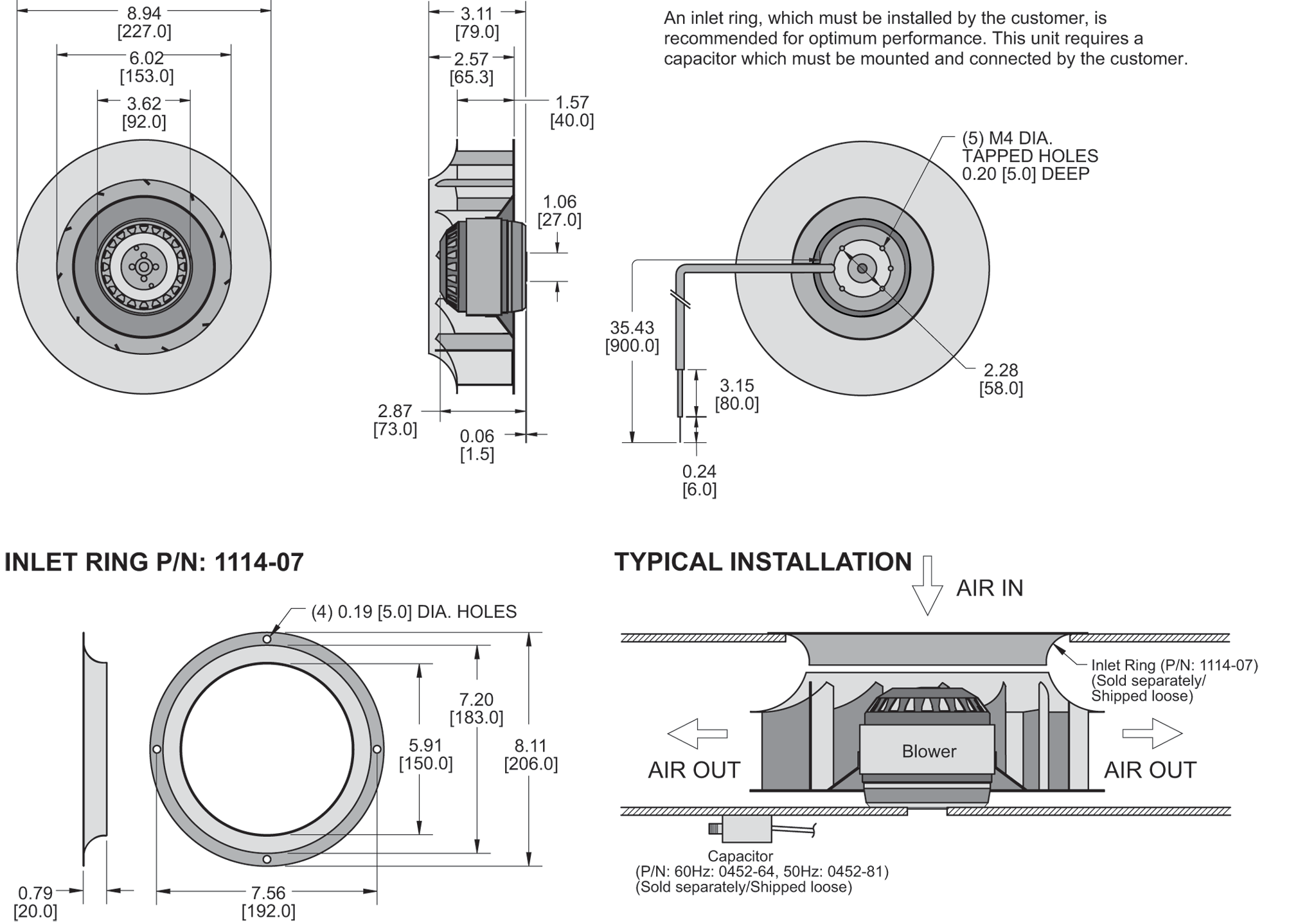

GENERAL ARRANGEMENT
Click on image for larger view

K2BC2E225/40A Impeller general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

K2BC2E225/40A Impeller general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.
