K2BCN2E192/40A 2-Pole Motorized Impeller

download product information

Download
Product
Information

TECHNICAL DATA

Click to Request Quote	Model	CFM @ 0" S.P.	Cutoff S.P.	Volts	Amps	Watts	Capacitor µF	RPM	dBA	Min. Temp	Max. Temp
	K2BCN2E192/40A	285	1.7	230/60	0.32	71	2	2580	68	-40°F/-40°C	158°F/70°C
	K2BCN2E192/40A	270	1.3	230/50	0.24	57	2	2405	65	-40°F/-40°C	158°F/70°C

Click on image for larger view

K2BCN2E192/40A Impeller photo

TECHNICAL DATA

Click to Request Quote:
Model Number:	K2BCN2E192/40A	K2BCN2E192/40A
CFM @ 0" S.P.:	2	2
Cutoff S.P.:	230/60	230/50
Volts:	285	270
Amps:	1.7	1.3
Watts:	2580	2405
Capacitor µF:	0.32	0.24
RPM:	68	65
dBA:	71	57
Min. Temp:	-40°F/-40°C	-40°F/-40°C
Max. Temp:	158°F/70°C	158°F/70°C

STANDARD FEATURES

ACCESSORIES AND OPTIONS

Capacitor Part Number: 0452-64

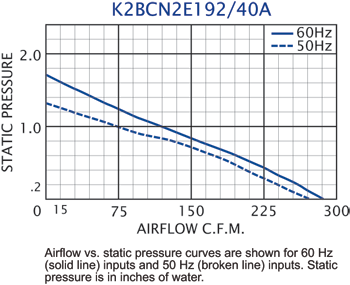

PERFORMANCE

K2BCN2E192/40A Impeller performance chart

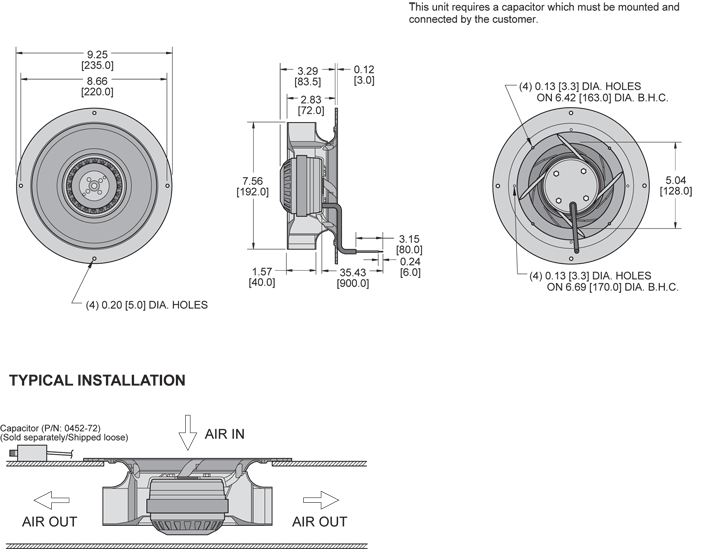

GENERAL ARRANGEMENT
Click on image for larger view

K2BCN2E192/40A Impeller general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

K2BCN2E192/40A Impeller general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.
