KBC2E225/63B 2-Pole Motorized Impellers

download product information

Download
Product
Information

TECHNICAL DATA

Click to Request Quote	Model	CFM @ 0" S.P.	Cutoff S.P.	Volts	Amps	Watts	Capacitor µF	RPM	dBA	Min. Temp	Max. Temp
	KBC2E225/63B	741	2.5	115/60	1.86	210	18	2695	69	-40°F/-40°C	122°F/50°C
	KBC2E225/63B	711	1.9	115/50	1.36	150	18	2560	67	-40°F/-40°C	122°F/50°C

Click on image for larger view

KBC2E225/63B Impeller photo

TECHNICAL DATA

Click to Request Quote:
Model Number:	KBC2E225/63B	KBC2E225/63B
CFM @ 0" S.P.:	18	18
Cutoff S.P.:	115/60	115/50
Volts:	741	711
Amps:	2.5	1.9
Watts:	2695	2560
Capacitor µF:	1.86	1.36
RPM:	69	67
dBA:	210	150
Min. Temp:	-40°F/-40°C	-40°F/-40°C
Max. Temp:	122°F/50°C	122°F/50°C

STANDARD FEATURES

ACCESSORIES AND OPTIONS

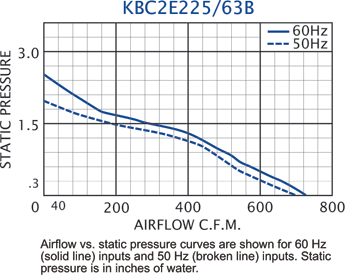

PERFORMANCE

KBC2E225/63B Impeller performance chart

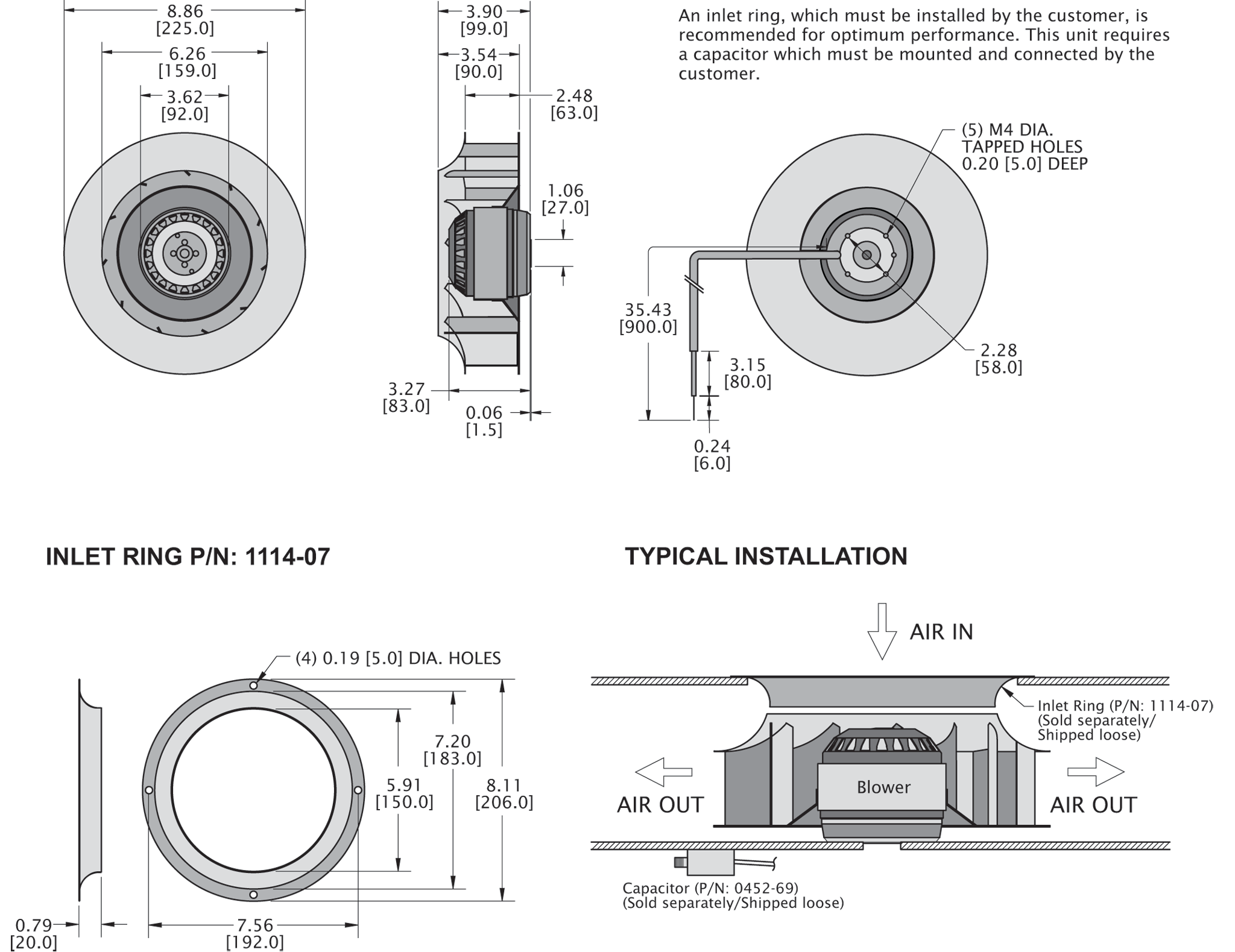

GENERAL ARRANGEMENT
Click on image for larger view

KBC2E225/63B Impeller general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

KBC2E225/63B Impeller general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.
