KBFF15AUF Advantage Series Filter Fans

download product information Download
Product
Information
TECHNICAL DATA

Click to
Request
Quote
ModelVoltageInput
Amps
Input
Watts
Max.
Airflow
CFM*
Static
Pressure
Inch. W.
Noise
db(A)
Operating
Temp. °F
Approx. WeightAgency
Approvals
Spare and
Replacement
Parts
Min.Max.Lbs.Kg.
Request RFQ linkKBFF15AUF115/600.27031158.90.6255141313.31.51, 2, 5Order Parts
Request RFQ linkKBFF15AUF**115/500.28031135.40.4650141313.31.51, 2, 5Coming Soon
*Fan with grille airflow.
** UL only at 60 Hz.
To order unit with reverse airflow, add R to model number.
To order Black fan, substitute N for U in model number.

Click on image for larger view
KBFF15AUF Filter Fans photo

TECHNICAL DATA

Click to
Request
Quote:
Request RFQ linkRequest RFQ link
Model
Number:
KBFF15AUFKBFF15AUF**
Voltage:115/60115/50
Input Amps:0.2700.280
Input Watts:3131
Max. Airflow CFM*:158.9135.4
Unit Airflow CFM**:0.620.46
Static Pressure Inches W.:5550
Noise db(A):1414
Operating Temp. Min. °F:131131
Operating Temp. Max. °F:3.33.3
Weight Lbs.:1.51.5
Weight Kg.:1, 2, 51, 2, 5
Agency Approvals:Order PartsComing Soon
Spare and Replacement Parts
*Fan with grille airflow.
** UL only at 60 Hz.
To order unit with reverse airflow, add R to model number.
To order Black fan, substitute N for U in model number.



RAL 7035 (Light Grey) is standard color (designated by U in model number). Fans are also available in RAL 9005 (Black). To order Black fan, substitute N for U in model number. Example: KBFF08GAUF for RAL 7035 (Light Grey) and KBFF08GANF for RAL 9005 (Black).



For KBFF15AUF models the filter part number is KFM15.



STANDARD FEATURES

  • Mounts quickly and easily
    • Elastic hooks and gaskets allow the fans to be mounted in openings with a tolerance range of 0.059 inches [1.5mm] and a plate thickness of between 0.039 inches [1.0mm] and 0.079 inches [2.0mm]
  • Attractive appearance
  • Requires no mounting hardware
  • Integral finger guards
  • Most Assemblies are CE Approved
  • Type 12 Rating Maintained (if used with provided filter)
  • UL shielded ball bearing motors
  • Integrated Sealing Gasket
  • Washable Thermolinked Progressive Structure Synthetic Filter
  • Electrical Connection: Terminal block 3 poles L-N-PE
  • Standard color: RAL 7035, Light Grey (See How to Order)

ACCESSORIES AND OPTIONS

  • Grille Color: RAL 9005~ Black
    • To order Black fan, substitute N for U in model number. Example: KBFF08GAUF for RAL 7035 (Light Grey) and KBFF08GANF for RAL 9005 (Black).
  • Click for more info.Grille Assembly for Filter Fans
  • Replacement Filter for KBFF15AUF (P/N KFM15)
  • Other voltages~ colors and reverse airflow may be available. Consult factory. Minimums may apply.
  • Reversed Airflow Direction (KBFF Series)

controls heaters
Controls Enclosure Heaters
PERFORMANCE

KBFF15AUF Filter Fans performance chart

KBFF15AUF Filter Fans performance chart #2

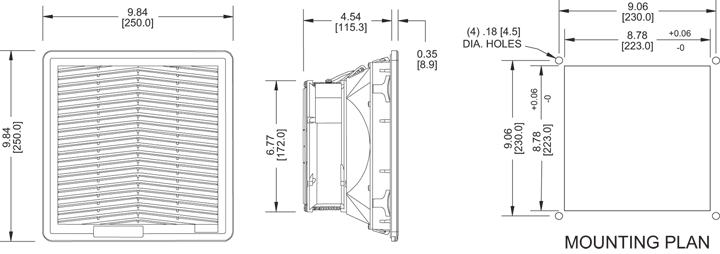

GENERAL ARRANGEMENT
Click on image for larger view

KBFF15AUF Filter Fans general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view

KBFF15AUF Filter Fans general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

HOW TO ORDER
Specify model number. Example: KBFF15AUF (115). K2BFF15AUF (230V). To order unit with reverse airflow, add "R" to model number. Example: KBFF15AUFR. RAL 7035 (Light Grey) is standard color (designated by U in model number). Fans are also available in RAL 9005 (Black). To order Black fan, substitute N for U in model number. Example: KBFF15AUF for RAL 7035 (Light Grey) and KBFF12ANF for RAL 9005 (Black). Filter: Specify part number.

SIMILAR MODELS

ModelGuideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KFF08 Filter Fans3.62 x 3.62 x 2.8713-15
KFF12 Filter Fans4.69 x 4.69 x 2.5839-46
KFF13PAUF Filter Fans6.97 x 6.97 x 3.4456-65
KFF13PAUN Filter Fans6.97 x 6.97 x 3.4470-76
KBFF15PAUF Filter Fans8.78 x 8.78 x 4.5462-70
KFF20 Filter Fans11.45 x 11.45 x 5.93306-341
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS

  • Data Sheet
    KBFF15AUF Data Sheet [379Kb]
  • Literature
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Fans & Fantrays Quick-Sheet [87Kb]
    Airflow Switch Data Sheet [159Kb]
    Advantage Series Filter Fan Mounting Instructions [887Kb]
    Advantage Series Filter Fan Brochure [376Kb]
    Filter Fan Flyer [136Kb]
    Guardian Series NEMA 4 or 4X Filter Fan Flyer [1047Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
