KBFF20 Advantage Series Filter Fans
Download
Product
Information
TECHNICAL DATA
Click to
Request
Quote
Model
Voltage
Input
Amps
Input
Watts
Max.
Airflow
CFM*
Static
Pressure
Inch. W.
Noise
db(A)
Operating
Temp. °F
Approx. Weight
Min.
Max.
Lbs.
Kg.
Agency
Approvals
KBFF20AUE1
115/60
0.730
83
341.4
0.76
79.2
14
131
6.8
3.1
1, 2, 5
KBFF20AUE1
115/50
0.680
74
306
0.64
66
14
131
6.8
3.1
1, 2, 5
K2BFF20AUE1
230/60
0.350
85
341.4
0.76
68.1
14
131
6.8
3.1
1, 2, 5
K2BFF20AUE1
230/50
0.310
70
306
0.64
65.3
14
131
6.8
3.1
1, 2, 5
*Fan with grille airflow.
To order Black fan, substitute N for U in model number.
To order unit with reverse airflow, add R to model number.
Click on image for larger view
TECHNICAL DATA
Click to
Request
Quote:
Model
Number:
KBFF20AUE1
KBFF20AUE1
K2BFF20AUE1
K2BFF20AUE1
Voltage:
115/60
115/50
230/60
230/50
Input Amps:
0.730
0.680
0.350
0.310
Input Watts:
83
74
85
70
Max. Airflow CFM*:
341.4
306
341.4
306
Unit Airflow CFM**:
0.76
0.64
0.76
0.64
Static Pressure Inches W.:
79.2
66
68.1
65.3
Noise db(A):
14
14
14
14
Operating Temp. Min. °F:
131
131
131
131
Operating Temp. Max. °F:
6.8
6.8
6.8
6.8
Weight Lbs.:
3.1
3.1
3.1
3.1
Weight Kg.:
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
Agency Approvals:
*Fan with grille airflow.
To order Black fan, substitute N for U in model number.
To order unit with reverse airflow, add R to model number.
RAL 7035 (Light Grey) is standard color (designated by U in model number). Fans are also available in RAL 9005 (Black). To order Black fan, substitute N for U in model number. Example: KBFF08GAUF for RAL 7035 (Light Grey) and KBFF08GANF for RAL 9005 (Black).
For
KBFF20AUE1
models the filter part number is
KFM20
.
STANDARD FEATURES
Mounts quickly and easily
Elastic hooks and gaskets allow the fans to be mounted in openings with a tolerance range of 0.059 inches [1.5mm] and a plate thickness of between 0.039 inches [1.0mm] and 0.079 inches [2.0mm]
Attractive appearance
Requires no mounting hardware
Integral finger guards
Most Assemblies are CE Approved
Type 12 Rating Maintained (if used with provided filter)
UL shielded ball bearing motors
Integrated Sealing Gasket
Washable Thermolinked Progressive Structure Synthetic Filter
Electrical Connection: Terminal block 3 poles L-N-PE
Standard color: RAL 7035, Light Grey (See How to Order)
ACCESSORIES AND OPTIONS
Grille Color: RAL 9005~ Black
To order Black fan, substitute N for U in model number. Example: KBFF08GAUF for RAL 7035 (Light Grey) and KBFF08GANF for RAL 9005 (Black).
Grille Assembly for Filter Fans
Replacement Filter for KBFF20AUE1 (P/N KFM20)
Other voltages~ colors and reverse airflow may be available. Consult factory. Minimums may apply.
Reversed Airflow Direction (KBFF Series)
Controls
Enclosure Heaters
PERFORMANCE

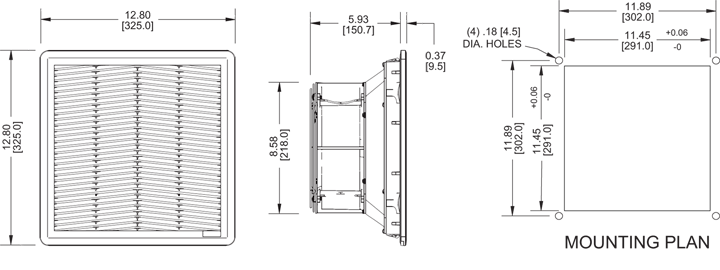

GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
HOW TO ORDER
Specify model number. Example: KBFF20AUE1 (115). K2BFF20AUE1 (230V). To order unit with reverse airflow, add "R" to model number. Example: KBFF20AUE1R. RAL 7035 (Light Grey) is standard color (designated by U in model number). Fans are also available in RAL 9005 (Black). To order Black fan, substitute N for U in model number. Example: KBFF20AUE1 for RAL 7035 (Light Grey) and KBFF20ANE1 for RAL 9005 (Black).
Filter: Specify part number.
SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KFF08 Filter Fans
3.62 x 3.62 x 2.87
13-15
KFF12 Filter Fans
4.69 x 4.69 x 2.58
39-46
KFF13PAUF Filter Fans
6.97 x 6.97 x 3.44
56-65
KFF13PAUN Filter Fans
6.97 x 6.97 x 3.44
70-76
KBFF15AUF Filter Fans
8.78 x 8.78 x 4.54
135-159
KBFF15PAUF Filter Fans
8.78 x 8.78 x 4.54
62-70
*See model specifics for drawings, dimensions, mounting or cutout plans.
DOCUMENTS
Data Sheet
KBFF20AUE1 Data Sheet [436Kb]
Literature
Increasing the Lifespan and Reliability of Electrical Components [212Kb]
Kooltronic Design Guide/Catalog (215 pages) [24440Kb]
Kooltronic Standard Warranty [55Kb]
NEMA Enclosure Ratings [91Kb]
Short-Form Catalog (16 pages) [897Kb]
Fans & Fantrays Quick-Sheet [87Kb]
Airflow Switch Data Sheet [159Kb]
Advantage Series Filter Fan Brochure [376Kb]
Filter Fan Flyer [136Kb]
