KXHE365A Air-to-Air
Panel-Mounted Heat Exchangers

download product information Download
Product
Information
TECHNICAL DATA

Click to
Request
Quote
ModelVoltsPowerMaximum Temperature °FPerformance
Watts/°F
(Air In)
Approx.
Weight
(lbs.)
Spare and
Replacement
Parts
AmpsWattsEnclosureAmbient
n/aKXHE365A1157.2665160-20 to 13188105Order Parts
n/aK2XHE365A2303.0665160-20 to 13188105Order Parts
60 Hz. operation. For 50 Hz. operation, consult Kooltronic.

Click on image for larger view
KXHE365A Heat Exchanger photo
NEMA TYPE 12
MAINTAINED

TECHNICAL DATA

Click to
Request
Quote:
n/an/a
Model
Number:
KXHE365AK2XHE365A
Volts:115230
Power, Amps:7.23.0
Power, Watts:665665
Max Temp. °F
Enclosure:
160160
Max Temp. °F
Ambient:
-20 to 131-20 to 131
Perforamce
Watts/°F (Air in):
8888
Approx.
Weight (lbs.):
105105
Spare and Replacement PartsOrder PartsOrder Parts
60 Hz. operation. For 50 Hz. operation, consult Kooltronic.

STANDARD FEATURES

  • Click for more info.Closed-Loop Cooling
    • The enclosure interior airflow system is isolated from the ambient airflow or waterflow system. No ambient air can invade the cool, dehumidified sensitive component compartment.
  • Epoxy-coated element
    • Fabricated to the same standards as the uncoated convoluted aluminum elements, these are made from epoxy-coated aluminum stock that exceeds 1000 hour salt spray testing requirements.
  • Filter
    • All Kooltronic filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reusable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacement filters are available and can be ordered online at kooltronic.com/spareparts.
  • Heavy-Duty Steel Shell
  • NEMA 12 Rating Maintained (UL50)
    • All units are fully gasketed for tight, leak-proof installation, in compliance with the NEMA 12 Enclosure Ratings.
  • Refrigerant-Free Aluminum Element
  • UL/CUL Listed

ACCESSORIES AND OPTIONS

  • Filter Recoating Adhesive
    • This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
  • Lifting Eyes
    • Heavy-gauge steel lifting eyes, attached to the side panels, assist in positioning units.
  • Low Airflow Detector
    • Similar to the Airflow Switch shown in the Blower Accessories Section, the switch is installed in a suitable location in the air conditioner to detect loss of airflow, and sends a signal to a terminal block, through which user-installed wiring and warning devices are activated.
  • Other voltages and frequencies
  • Replacement Filters
    • All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
  • Special materials or finishes
  • Special motors, line cords or connectors
  • Temperature Alarm
    • A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.
  • Weather Protection Kit
    • For outdoor installations subject to invasion by rain, snow or windblown dirt, special deflectors shield the condenser air inlet and outlet ports. Air conditioners or heat exchangers installed outdoors may also require special exterior paint. NOTE: Units using the Weather Protection Kit are not UL Listed.

For KXHE365A models the filter part number is 10501F.


AIRFLOW
Click on image for larger view

KXHE365A Heat Exchanger isometric illustration

PERFORMANCE

KXHE365A Heat Exchanger performance chart

GENERAL ARRANGEMENT
Click on image for larger view

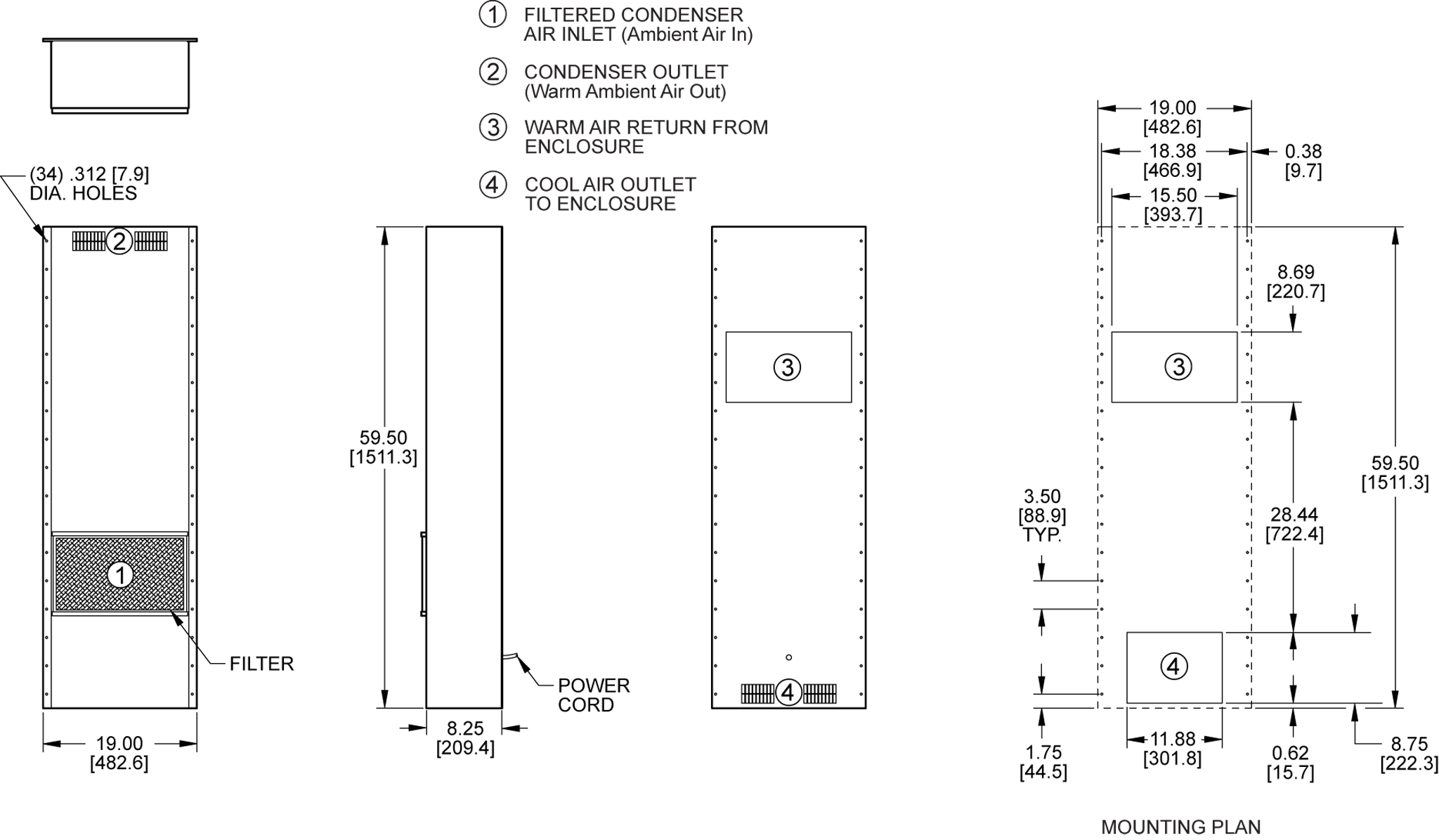

KXHE365A Heat Exchanger general arrangement drawing
GENERAL ARRANGEMENT
Click on image for larger view

KXHE365A Heat Exchanger general arrangement drawing

Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.
HOW TO ORDER
Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2XHE365A.

SIMILAR MODELS

ModelGuideline
Dimensions
(H x W x D)*
Watts/°F
KXHE245A47.25 x 19.00 x 8.2574
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS

  • Data Sheet
    KXHE365A Product Data Sheet [99Kb]
  • Installation Instructions
    KXHE125, 245, 360 & 365 Installation Instructions (2 pages) [72Kb]
  • Literature
    Condensate Evaporator Kits [241Kb]
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Airflow Switch Data Sheet [159Kb]
    Heat Exchanger Quick-Sheet [90Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    KLLC100 Lead-Lag Controller [38Kb]
    KLLC480 Lead-Lag Controller [79Kb]
    KXHE125A, 125B, 240A, 245A, 360A & 365A Operator's Manual [89Kb]
  • Wiring Diagram
    KXHE365A, KXHE360A, KXHE245A, KXHE240A, KXHE125A Wiring Diagram [57Kb]
