Advantage Series KXRP33
Air-to-Air Panel-Mounted Heat Exchangers

download product information Download
Product
Information
These products are discontinued and no longer in production.
We recommend the Trimline Series as a possible alternative
TECHNICAL DATA

Click to
Request
Quote
ModelVoltsPowerMaximum Temperature °FPerformance
Watts/°F
(Air In)
Approx.
Weight
(lbs.)
AmpsWattsEnclosureAmbient
KXRP331152.25260160-20 to 1313048
K2XRP332301.0225160-20 to 1313048
60 Hz. operation. For 50 Hz. operation, consult Kooltronic.

Click on image for larger view
Advantage KXRP33 Heat Exchanger photo
 NEMA TYPE 12 AND 3R
MAINTAINED

TECHNICAL DATA

Click to
Request
Quote:
Model
Number:
KXRP33K2XRP33
Volts:115230
Power, Amps:2.251.0
Power, Watts:260225
Max Temp. °F
Enclosure:
160160
Max Temp. °F
Ambient:
-20 to 131-20 to 131
Perforamce
Watts/°F (Air in):
3030
Approx.
Weight (lbs.):
4848
60 Hz. operation. For 50 Hz. operation, consult Kooltronic.

STANDARD FEATURES

  • Closed-Loop Near-Ambient Cooling
  • Epoxy-coated convoluted aluminum element
    • Fabricated to the same standards as the uncoated convoluted aluminum elements, these are made from epoxy-coated aluminum stock that exceeds 1000 hour salt spray testing requirements.
  • Heavy-Duty Steel Shell
  • NEMA 12 & 3R Ratings Maintained (UL50)
    • All units are fully gasketed for tight, leakproof installation, in compliance with the NEMA 12 and 3R Enclosure Ratings.
  • Refrigerant-Free Aluminum Element

ACCESSORIES AND OPTIONS

  • Filters
    • All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
  • Filter Recoating Adhesive
    • This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
  • Other voltages and frequencies
  • Replacement Filters
    • All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
  • Special materials or finishes
  • Special motors, line cords or connectors

For KXRP33 models the filter part number is 7131F.


AIRFLOW
Click on image for larger view

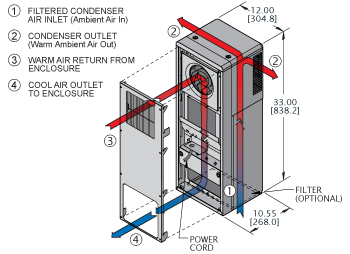

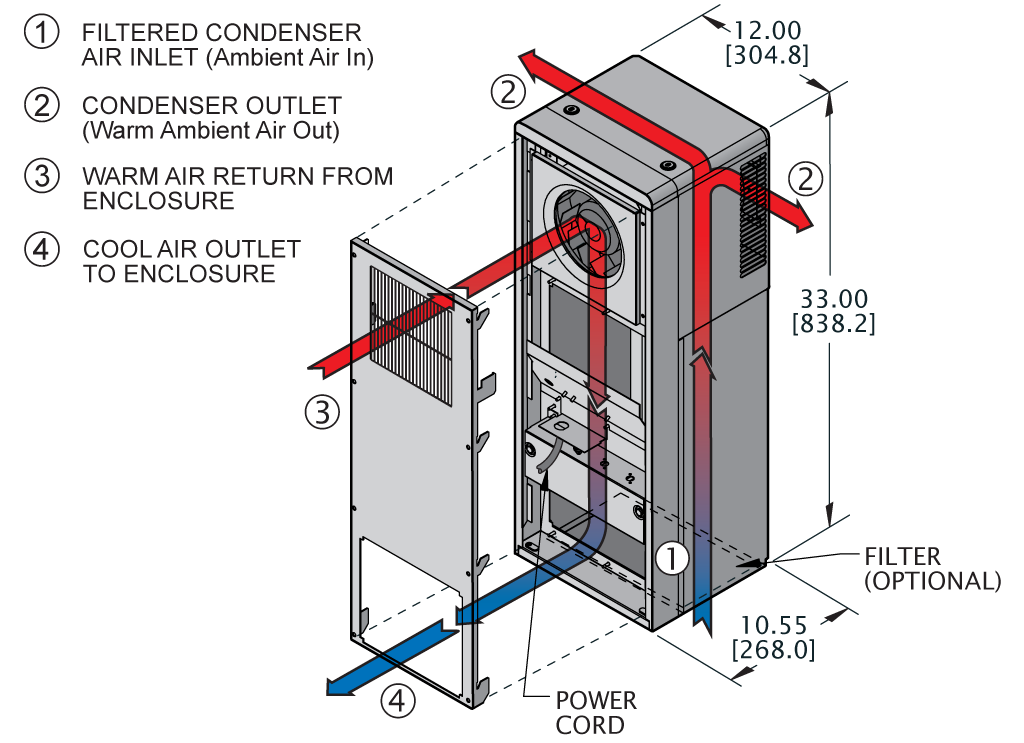

Advantage KXRP33 Heat Exchanger isometric illustration

PERFORMANCE

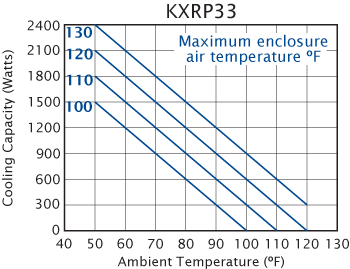

Advantage KXRP33 Heat Exchanger performance chart

GENERAL ARRANGEMENT
Click on image for larger view

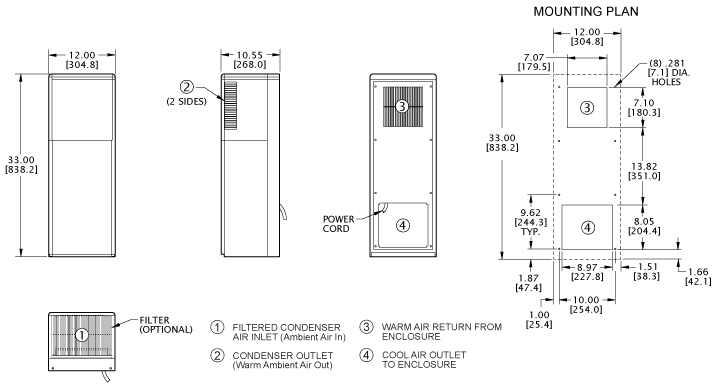

Advantage KXRP33 Heat Exchanger general arrangement drawing
GENERAL ARRANGEMENT
Click on image for larger view

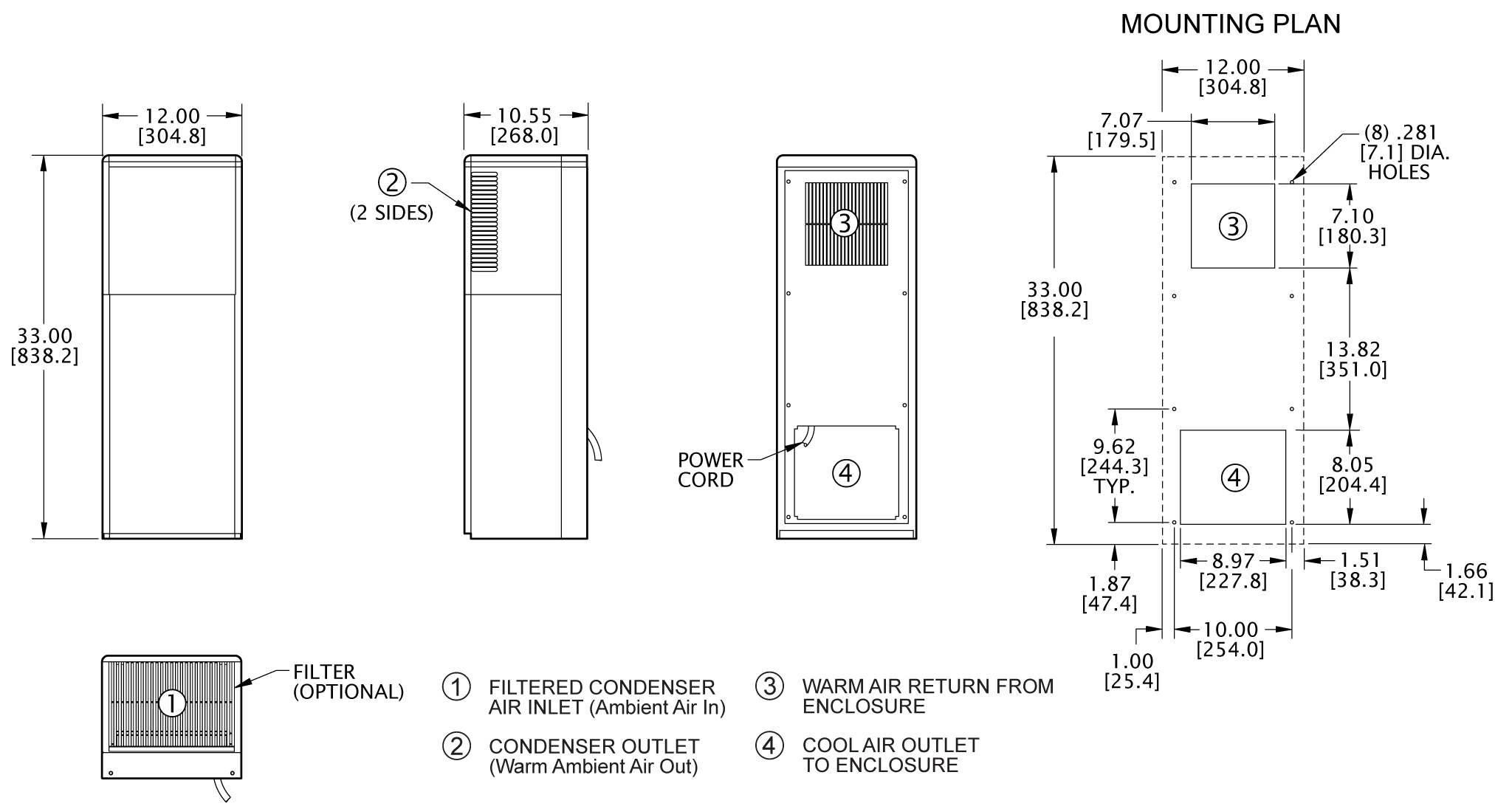

Advantage KXRP33 Heat Exchanger general arrangement drawing

Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.
HOW TO ORDER
Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2XRP33.

SIMILAR MODELS

ModelGuideline
Dimensions
(H x W x D)*
Watts/°F
Advantage KXRP2828.00 x 10.00 x 8.0024
Advantage KXRP4746.84 x 15.53 x 11.2754
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS

  • Data Sheet
    KLLC100-480 Lead-Lag Controller Product Data Sheet [58Kb]
    KXRP33 Data Sheet [113Kb]
  • Installation Instructions
    K_XRP33 Installation Instructions (2 pages) [145Kb]
  • Literature
    Condensate Evaporator Kits [241Kb]
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    KLLC100 Lead-Lag Controller (1 page) [58Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Design Guide/Catalog (215 pages) [24440Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Airflow Switch Data Sheet [159Kb]
    Heat Exchanger Quick-Sheet [90Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    KLLC100 Lead-Lag Controller [38Kb]
    KLLC480 Lead-Lag Controller [79Kb]
    Advantage KXRP33 Operator's Manual [105Kb]
