Advantage Series KXRP47
Air-to-Air Panel-Mounted Heat Exchangers
Download
Product
Information
These products are discontinued and no longer in production.
TECHNICAL DATA
Click to
Request
Quote
Model
Volts
Power
Maximum Temperature °F
Performance
Watts/°F
(Air In)
Approx.
Weight
(lbs.)
Spare and
Replacement
Parts
Amps
Watts
Enclosure
Ambient
n/a
KXRP47
115
3.60
386
160
-20 to 131
54
86
Order Parts
n/a
K2XRP47
230
1.66
384
160
-20 to 131
54
86
Order Parts
60 Hz. operation. For 50 Hz. operation, consult Kooltronic.

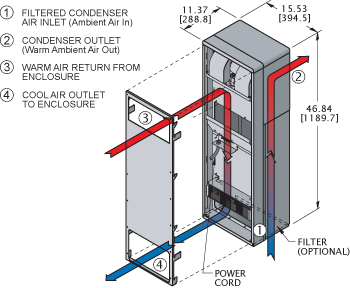

Click on image for larger view
NEMA
TYPE 12 AND 3R
MAINTAINED
TECHNICAL DATA
Click to
Request
Quote:
n/a
n/a
Model
Number:
KXRP47
K2XRP47
Volts:
115
230
Power, Amps:
3.60
1.66
Power, Watts:
386
384
Max Temp. °F
Enclosure:
160
160
Max Temp. °F
Ambient:
-20 to 131
-20 to 131
Perforamce
Watts/°F (Air in):
54
54
Approx.
Weight (lbs.):
86
86
Spare and Replacement Parts
Order Parts
Order Parts
60 Hz. operation. For 50 Hz. operation, consult Kooltronic.
STANDARD FEATURES
Closed-Loop Near-Ambient Cooling
Epoxy-coated convoluted aluminum element
Fabricated to the same standards as the uncoated convoluted aluminum elements, these are made from epoxy-coated aluminum stock that exceeds 1000 hour salt spray testing requirements.
Heavy-Duty Steel Shell
NEMA 12 & 3R Ratings Maintained (UL50)
All units are fully gasketed for tight, leakproof installation, in compliance with the NEMA 12 and 3R Enclosure Ratings.
Refrigerant-Free Aluminum Element
ACCESSORIES AND OPTIONS
Filters
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
Filter Recoating Adhesive
This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
Other voltages and frequencies
Replacement Filters
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
Special materials or finishes
Special motors, line cords or connectors
AIRFLOW
Click on image for larger view
PERFORMANCE
GENERAL ARRANGEMENT
Click on image for larger view
GENERAL ARRANGEMENT
Click on image for larger view
Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details
.
HOW TO ORDER
Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2XRP47.
SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
Watts/°F
Advantage KXRP33
33.00 x 12.00 x 10.55
30
*See model specifics for drawings, dimensions, mounting or cutout plans.
DOCUMENTS
Data Sheet
KXRP47 Data Sheet [190Kb]
GA Drawing
KXRP47 General Arrangement Drawing [190Kb]
Installation Instructions
K_XRP47 Installation Instructions (2 pages) [148Kb]
Literature
Condensate Evaporator Kits [241Kb]
Increasing the Lifespan and Reliability of Electrical Components [212Kb]
Kooltronic Custom Capabilities Flyer [2194Kb]
Kooltronic Custom Cooling Medical Flyer [211Kb]
Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
Kooltronic Refrigeration System Manufacturing [55Kb]
Kooltronic Standard Warranty [55Kb]
Kooltronic Unit Longevity Press Release [167Kb]
NEMA Enclosure Ratings [91Kb]
Short-Form Catalog (16 pages) [897Kb]
Airflow Switch Data Sheet [159Kb]
Heat Exchanger Quick-Sheet [90Kb]
Laboratory Environmental Testing Services [157Kb]
Powder Paint Application Facilities Flyer [165Kb]
Operator's Manual
KLLC100 Lead-Lag Controller [38Kb]
KLLC480 Lead-Lag Controller [79Kb]
Advantage KXRP47 Operator's Manual [147Kb]
