SlimKool Series SP43 480 Volt 3-Phase
NEMA 4 or 4X Air Conditioners

download product information Download
Product
Information

These units are no longer available.

We recommend the SlimKool Series 115V (Narrow Width) SP43 as a possible alternative.

TECHNICAL DATA

Click to
Request
Quote
ModelNEMA
Rating
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H
Ambient Temp.VoltsHzRunning
Amps
Approx.
Weight
Spare and
Replacement
Parts
°F°C
Max./Min.Max./Min.lbskg
Request RFQ linkK3NA4C11SP43LV4XListed110009300131/-2055/-28480603.512557Order Parts
Request RFQ linkK3NA4C11SP43L4Listed110009300131/-2055/-28480603.512557Order Parts
Rating shown is for operation at maximum ambient temperature.

Click on image for larger view
SlimKool SP43 480V Air Conditioner photo
NEMA NEMA 12, 3R AND 4
MAINTAINED
(4X OPTIONAL)

TECHNICAL DATA

Click to
Request
Quote:
Request RFQ linkRequest RFQ link
Model
Number:
K3NA4C11SP43LVK3NA4C11SP43L
NEMA
Rating:
4X4
UL/CUL
Listed or
Recognized:
ListedListed
BTU/H
Capacity:
1100011000
95/95 Rating
BTU/H:
93009300
Ambient
Temp °.F
Max./Min.:
131/-20131/-20
Ambient
Temp °.C
Max./Min.:
55/-2855/-28
Volts:480480
Hz:6060
Running
Amps:
3.53.5
Approx.
Weight lbs.:
125125
Approx.
Weight kg.:
5757
Spare and Replacement PartsOrder PartsOrder Parts
Rating shown is for operation at maximum ambient temperature.

STANDARD FEATURES

  • Built-in Condensate Evaporator
    • Built-in Condensate Evaporator eliminates need for draining condensate under normal operating conditions. May not be adequate in extremely high humidity with open or leaky enclosure. Overflow condensate drain fitting and hose are included.
  • CFC-Free Refrigerant
    • CFC-free R134a Refrigerant is used
  • Click for more info.Closed-Loop Cooling
    • The enclosure interior airflow system is isolated from the ambient airflow or waterflow system. No ambient air can invade the cool, dehumidified sensitive component compartment.
  • Compact Design/Slim Mounting Footprints
  • Compressor Short Cycle Protector
    • Protects the compressor from possible damage due to harmful short cycling, (frequent starting) where temperature controls enable the compressor to restart frequently or after a power interruption. These conditions could be due to low or fluctuating heat loads within the electrical enclosure or a power failure. The Compressor Short Cycle Protector will prevent the compressor from starting when it has been shut off for less than several minutes or the power was interrupted. By limiting the number of compressor starts per hour, the life of the compressor is prolonged. It is recommended where installations are subject to solar gain and or changes in the enclosure internal load due to the degree of usage of the equipment being cooled. It is also recommended where higher capacity units are specified in anticipation of the future addition of heat producing equipment being added to the enclosure.
  • Condenser Impeller Cycling Control
  • Epoxy-Coated Condenser and Evaporator Coils
    • Condenser and Evaporator Coils are Epoxy-Coated. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or Integrity NEMA 4/4X Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
  • Filter
    • All Kooltronic filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reusable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacement filters are available and can be ordered online at kooltronic.com/spareparts.
  • Heavy-Duty Steel Shell with ANSI 61 Gray Polyester Powder Coating
  • Internal Corrosion Protection
    • NOTE: Internal Corrosion Protection is a Standard Feature on NEMA 4X models only. This protection for the refrigeration system consists of an air cured coating applied to the brazed joints on the condenser side, providing a degree of protection from corrosive environments. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or Integrity NEMA 4/4X Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
  • NEMA 12, 3R & 4 Ratings Maintained (UL50)
    • All units Maintain NEMA 12 & 3R Ratings. All units are fully gasketed for tight, leakproof installation, in compliance with the NEMA Type 4 Enclosure Ratings.
  • Phase Sequence/Phase Loss Detector/Under Voltage Monitor
  • Programmable Temperature Alarm
    • All models feature a programmable temperature alarm to alert if early action is required.
  • Programmable Thermostat
    • All models feature a programmable thermostat, allowing more accurate and versatile performance features.
  • Stainless Steel Shell (NEMA 4X models)
    • For applications in corrosive or other hostile environments such as those requiring Internal Corrosion Resistant Coatings, especially where chemical/moisture combinations are present.
  • UL/CUL Listed

ACCESSORIES AND OPTIONS

  • Adapter
    • A plate or plenum needed to replace older Kooltronic or competitor units.
  • Enclosure Heater
    • Eliminates damaging condensation, increasing reliability of electrical enclosure components.
  • Filter Recoating Adhesive
    • This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
  • Remote Monitoring
    • An optional feature for models with Programmable Thermostat, Remote Monitoring provides temperature data for warning of early action required.,Accomplished through a Hot Key connection from the Programmable Thermostat to a monitoring system (not supplied) that is ModBus-RTU compatible (i.e. XWEB500/3000/300) via an external 2-position terminal block.
  • Remote Thermostat Relay
    • Used only with a user-installed remote thermostat or the Kooltronic KLLC100 Lead Lag Controller, this 24VAC relay can be used for the sequential operation of two units or with a single unit. An external terminal strip is provided for field interconnection. NOTE: User-installed thermostat must have a set point of 75°F with a differential of 11°F. NOTE: A factory installed thermostat is not provided with this option.
  • Replacement Filters
    • All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.

For SlimKool SP43L-LV models the filter part number is 9503F.

AIRFLOW
Click on image for larger view

SlimKool SP43 480V Air Conditioner isometric illustration

PERFORMANCE

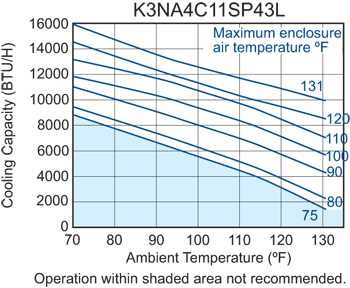

SlimKool SP43 480V Air Conditioner performance chart

GENERAL ARRANGEMENT
Click on image for larger view

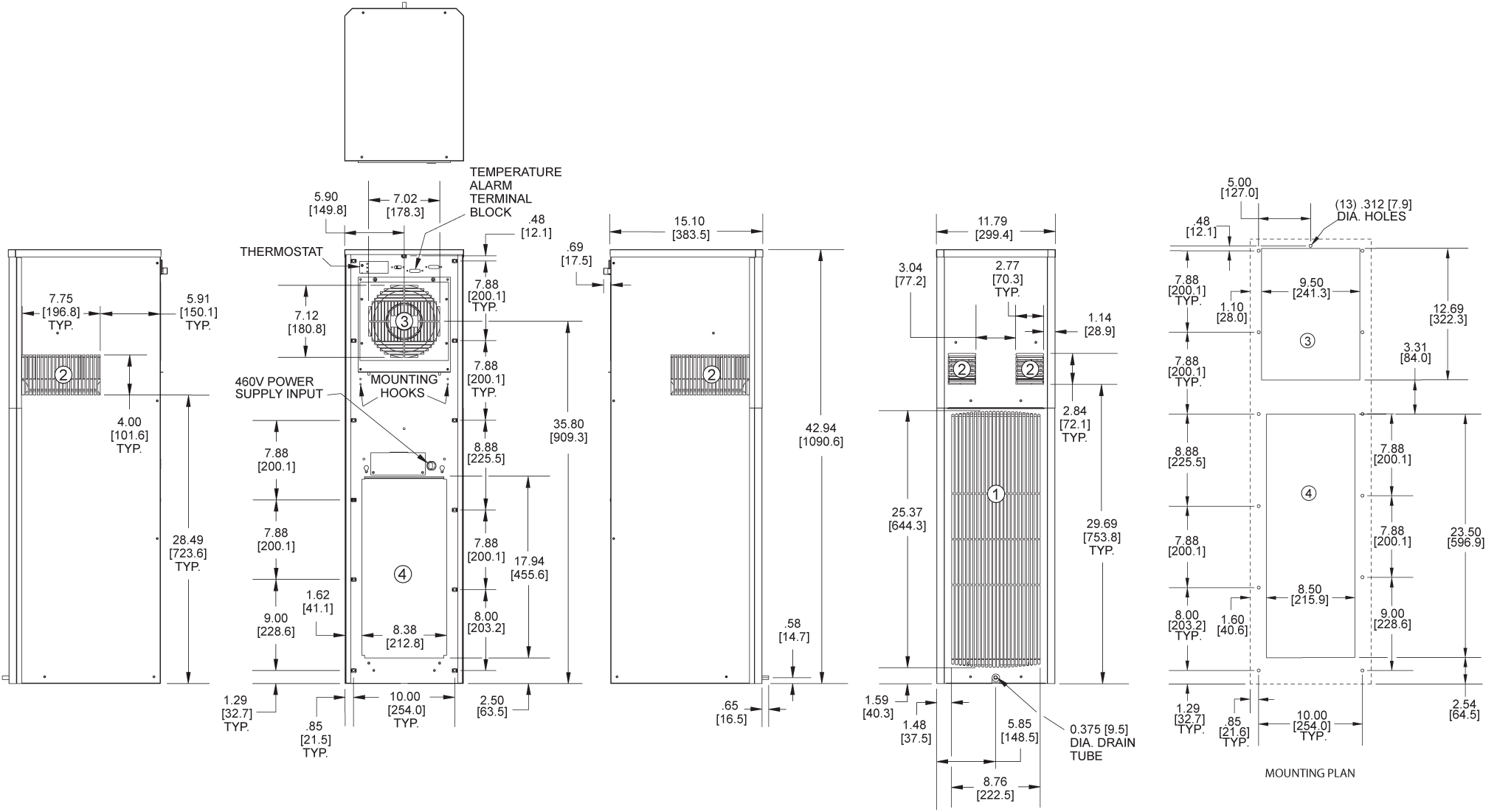

SlimKool SP43 480V Air Conditioner general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view

SlimKool SP43 480V Air Conditioner general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.

DOCUMENTS

  • 2-D Drawing of the Mounting Plan
    K3NA4C11SP43L 2-D Drawing of the Mounting Plan [9218Kb]
  • 3-D Solid Model
    K3NA4C11SP43L 3-D Solid Model [35Kb]
  • Brochure
    Slimkool Series Brochure [437Kb]
  • Data Sheet
    K3NA4C11SP43L-LV Data Sheet [398Kb]
  • GA Drawing
    SP43L-LV 480 Volt General Arrangement Drawing [100Kb]
  • Installation Instructions
    K3NA4C11SP43L-LV Installation Instructions [133Kb]
  • Literature
    Air Conditioner Quick-Sheet [105Kb]
    Condensate Evaporator Kits [241Kb]
    Condensation and Electronics [3983Kb]
    Electronic Enclosure Cooling With Special Purpose Air Conditioners [254Kb]
    Hazardous Location Series White Paper [234Kb]
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Slimkool Series Flyer [584Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Airflow Switch Data Sheet [159Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    KLLC100 Lead-Lag Controller [38Kb]
    KLLC480 Lead-Lag Controller [79Kb]
    K3NA4C11SP43L-LV Operator's Manual [830Kb]
  • Wiring Diagram
    K3NA4C11SP43L-LV Wiring Diagram (Ladder) [61Kb]
    K3NA4C11SP43L-LV Wiring Diagram (Point-to-Point) [61Kb]
    K3NA4C11SP43L-LV Wiring Diagram (Point-to-Point) [62Kb]
    K3NA4C11SP43L-LV Wiring Diagram (Point-to-Point) [83Kb]
    K3NA4C11SP43L-LV Wiring Diagram (Point-to-Point) [83Kb]
    K3NA4C11SP43L-LV Wiring Diagram (Point-to-Point) [85Kb]
