KBB36 Single Centrifugal Blowers

TECHNICAL DATA

Click to Request Quote	Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Amps		Watts	Approx. Weight		Spare and Replacement Parts
	Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Run	L.R.	Watts	Lbs.	Kg.

	KBB36	115/60	235	1.5	3275	1.30	3.0	150	7	3.2	Order Parts
	KBB36	115/50	190	1.2	2800	1.14	2.6	120	7	3.2	Order Parts
	K2BB36	230/60	235	1.5	3275	0.56	1.04	126	7	3.2	Order Parts
	K2BB36	230/50	190	1.2	2800	0.52	1.00	105	7	3.2	Order Parts

Click on image for larger view

TECHNICAL DATA

Click to Request Quote:
Model Number:	KBB36	KBB36	K2BB36	K2BB36
Volts/Hz:	115/60	115/50	230/60	230/50
CFM @ 0" S.P.:	235	190	235	190
Cutoff S.P.:	1.5	1.2	1.5	1.2
Nominal RPM:	3275	2800	3275	2800
Amps Run:	1.30	1.14	0.56	0.52
Amps L.R.:	3.0	2.6	1.04	1.00
Watts:	150	120	126	105
Weight Lbs.:	7	7	7	7
Weight Kg.:	3.2	3.2	3.2	3.2
Spare and Replacement Parts	Order Parts	Order Parts	Order Parts	Order Parts

STANDARD FEATURES

235 CFM Capacity
Full performance in any mounting position
Rugged construction with baked powder finish
UL/CSA Ball-Bearing Motors
- All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
12-inch [304.8mm] (minimum) power and ground leads

ACCESSORIES AND OPTIONS


Controls	Heaters

PERFORMANCE CHART

Airflow vs. static pressure curves are shown for 60 Hz (solid line) and 50 Hz (broken line) inputs. Static pressure is in inches of water.

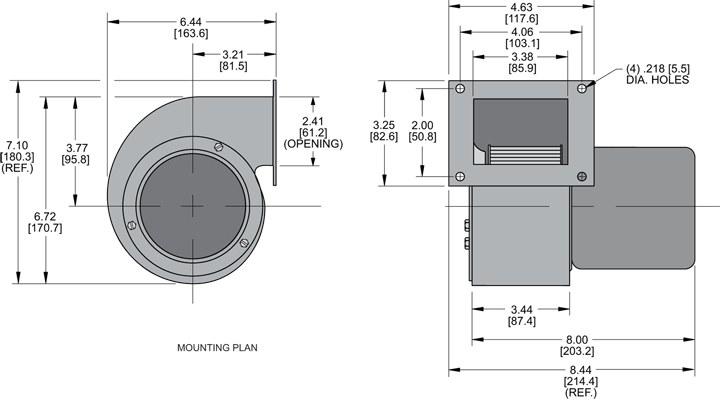

GENERAL ARRANGEMENT
Click on image for larger view

KBB36 Single Blower general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

HOW TO ORDER

Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2BB36. NOTE: Some 230 Volt models may not be available or minimum purchases may apply. Contact Kooltronic for information.

SIMILAR MODELS

Model	Guideline Dimensions (H x W x D)*	CFM @0" S.P.
KBB25 Single Blower	5.38 x 5.19 x 4.56	52-60
KBB30 Single Blower	6.00 x 5.88 x 5.31	75-95
KBB35 Single Blower	7.38 x 6.38 x 6.38	114-140
KBB43 Single Blower	8.25 x 8.25 x 7.31	256-305
KBB49 Single Blower	8.19 x 10.50 x 7.31	345-425
KBB50 Single Blower	9.19 x 8.94 x 8.25	245-300
*See model specifics for drawings, dimensions, mounting or cutout plans.
