KBB43-43 Double Centrifugal Blowers
Download
Product
Information
TECHNICAL DATA
Click to
Request
Quote
Model
Volts/Hz
CFM @
0" S.P.
Cutoff
S.P.
RPM
Nominal
Amps
Watts
Approx. Weight
Spare and
Replacement
Parts
Run
L.R.
Lbs.
Kg.
KBB43-43
115/60
450
1.7
3200
2.5
5.4
260
13
5.9
Order Parts
KBB43-43
115/50
380
1.15
3200
2.5
5.4
260
13
5.9
Order Parts
Unavailable in 230 VAC.
Click on image for larger view
TECHNICAL DATA
Click to
Request
Quote:
Model
Number:
KBB43-43
KBB43-43
Volts/Hz:
115/60
115/50
CFM @ 0" S.P.:
450
380
Cutoff S.P.:
1.7
1.15
Nominal RPM:
3200
3200
Amps Run:
2.5
2.5
Amps L.R.:
5.4
5.4
Watts:
260
260
Weight Lbs.:
13
13
Weight Kg.:
5.9
5.9
Spare and Replacement Parts
Order Parts
Order Parts
Unavailable in 230 VAC.
STANDARD FEATURES
450 CFM Capacity
Full performance in any mounting position
Rugged construction with baked powder finish
UL/CSA Ball-Bearing Motors
All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
12-inch [304.8mm] (minimum) power and ground leads
ACCESSORIES AND OPTIONS
Airflow Switch (Basic Blowers)
Automatic Speed Control (Basic Blowers)
Inlet Finger Guard
Other voltages and frequencies
Special external paint finishes
Special line cord or connectors
Controls
Heaters
PERFORMANCE CHART
Airflow vs. static pressure curves are shown for 60 Hz (solid line) and 50 Hz (broken line) inputs. Static pressure is in inches of water.

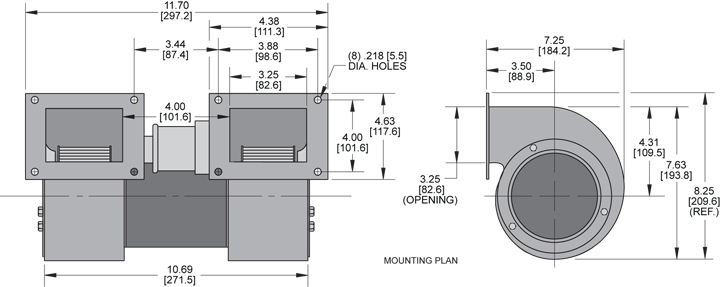

GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view
HOW TO ORDER
Specify model number. Unavailable in 230 VAC operation. Contact Kooltronic for information.
SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KBB25-25 Double Blower
5.25 x 9.50 x 4.93
128-155
KBB30-30 Double Blower
6.06 x 9.50 x 5.38
162-185
KBB36-36 Double Blower
7.13 x 12.06 x 6.44
340-390
KBB37-37 Double Blower
7.19 x 13.50 x 6.44
405-465
KBB50-50 Double Blower
9.25 x 13.63 x 8.25
420-500
KBB57-57 Double Blower
9.75 x 13.88 x 8.44
480-560
KBB60-60 Double Blower
11.06 x 12.00 x 9.25
585-665
KBB64-64 Double Blower
11.38 x 14.00 x 10.63
750-890
KBB80-80 Double Blower
13.75 x 14.00 x 12.13
1020-1200
*See model specifics for drawings, dimensions, mounting or cutout plans.
