KBR75 High Pressure Radial Blowers
Download
Product
Information
TECHNICAL DATA
Click to
Request
Quote
Model
Volts/Hz
CFM @
0" S.P.
Cutoff
S.P.
RPM
Nominal
Amps
Watts
Approx. Weight
Spare and
Replacement
Parts
Run
L.R.
Lbs.
Kg.
KBR75
115/60
110
3.6
3400
1.0
2.1
106
9
4.1
Order Parts
KBR75
115/50
89
2.5
3400
1.0
2.1
106
9
4.1
Order Parts
K2BR75
230/60
110
3.6
9
4.1
Order Parts
K2BR75
230/50
89
2.5
9
4.1
Order Parts
For 230 Volt details, contact factory.
Click on image for larger view
TECHNICAL DATA
Click to
Request
Quote:
Model
Number:
KBR75
KBR75
K2BR75
K2BR75
Volts/Hz:
115/60
115/50
230/60
230/50
CFM @ 0" S.P.:
110
89
110
89
Cutoff S.P.:
3.6
2.5
3.6
2.5
Nominal RPM:
3400
3400
Amps Run:
1.0
1.0
Amps L.R.:
2.1
2.1
Watts:
106
106
Weight Lbs.:
9
9
9
9
Weight Kg.:
4.1
4.1
4.1
4.1
Spare and Replacement Parts
Order Parts
Order Parts
Order Parts
Order Parts
For 230 Volt details, contact factory.
STANDARD FEATURES
110 CFM Capacity
Designed for substantial static pressures
Full performance in any mounting position
Rugged construction with baked powder finish
UL/CSA Ball-Bearing Motors
All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
12-inch [304.8mm] (minimum) power and ground leads
ACCESSORIES AND OPTIONS
Airflow Switch (Basic Blowers)
Automatic Speed Control (Basic Blowers)
Inlet Finger Guard
Other voltages and frequencies
Special external paint finishes
Special line cord or connectors
Controls
Heaters
PERFORMANCE CHART
Airflow vs. static pressure curves are shown for 60 Hz (solid line) and 50 Hz (broken line) inputs. Static pressure is in inches of water.

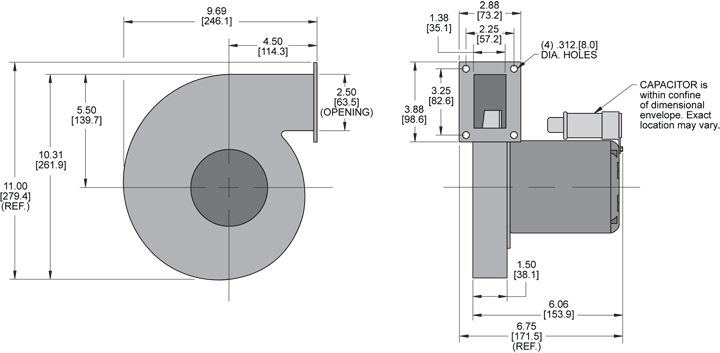

GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view
HOW TO ORDER
Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2BR75. NOTE: Some 230 Volt models may not be available or minimum purchases may apply. Contact Kooltronic for information.
SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KBR100 Radial Blower
13.75 x 7.81 x 13.63
180-215
KBR125 Radial Blower
13.75 x 7.88 x 13.63
225-265
KBR60 Radial Blower
9.25 x 4.88 x 7.81
47-55
KBR90 Radial Blower
12.38 x 6.75 x 11.25
145-160
*See model specifics for drawings, dimensions, mounting or cutout plans.
