KNP36FL Guardian/GuardianX NEMA 4 or 4X Series
Indoor/Outdoor Filter Fans
Download
Product
Information
TECHNICAL DATA
Click to
Request
Quote
Model
Airflow
Direction
NEMA
Rating
Voltage
Input
Amps
Input
Watts
Max.
Airflow
CFM*
Unit
Airflow
CFM**
Noise
db(A)
Operating
Temp. °F
Approx. Weight
Spare and
Replacement
Parts
Min.
Max.
Lbs.
Kg.
KNP36FL
Intake
NEMA 4
115
0.08
4.3
47
26
54
-40
158
3.7
1.7
Order Parts
KNP36RFL
Exhaust
NEMA 4
115
0.08
4.3
52
26
55
-40
158
3.7
1.7
Order Parts
K2NP36FL
Intake
NEMA 4
230
0.08
4.3
47
26
54
-40
158
3.7
1.7
Order Parts
K2NP36RFL
Exhaust
NEMA 4
230
0.08
4.3
52
26
55
-40
158
3.7
1.7
Order Parts
KNP36FLV
Intake
NEMA 4X
115
0.08
4.3
47
26
54
-40
158
3.7
1.7
Order Parts
KNP36RFLV
Exhaust
NEMA 4X
115
0.08
4.3
52
26
55
-40
158
3.7
1.7
Order Parts
K2NP36FLV
Intake
NEMA 4X
230
0.08
4.3
47
26
54
-40
158
3.7
1.7
Order Parts
K2NP36RFLV
Exhaust
NEMA 4X
230
0.08
4.3
52
26
55
-40
158
3.7
1.7
Order Parts
*Fan airflow without filter and grille.
**NEMA Rated if installed with provided filter.
Click on image for larger view
NEMA
NEMA 4 or 4X
MAINTAINED
TECHNICAL DATA
Click to
Request
Quote:
Model
Number:
KNP36FL
KNP36RFL
K2NP36FL
K2NP36RFL
KNP36FLV
KNP36RFLV
K2NP36FLV
K2NP36RFLV
Airflow
Direction:
Intake
Exhaust
Intake
Exhaust
Intake
Exhaust
Intake
Exhaust
NEMA
Rating:
NEMA 4
NEMA 4
NEMA 4
NEMA 4
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
Voltage:
115
115
230
230
115
115
230
230
Input Amps:
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
Input Watts:
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
Fan Airflow CFM*:
47
52
47
52
47
52
47
52
Unit Airflow CFM**:
26
26
26
26
26
26
26
26
Noise db(A):
54
55
54
55
54
55
54
55
Operating Temp. Min. °F:
-40
-40
-40
-40
-40
-40
-40
-40
Operating Temp. Max. °F:
158
158
158
158
158
158
158
158
Weight Lbs.:
3.7
3.7
3.7
3.7
3.7
3.7
3.7
3.7
Weight Kg.:
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
Spare and Replacement Parts
Order Parts
Order Parts
Order Parts
Order Parts
Order Parts
Order Parts
Order Parts
Order Parts
*Fan airflow without filter and grille.
**NEMA Rated if installed with provided filter.
For general ventilating use only. Do not use these fans to exhaust hazardous or explosive material and vapors.
NOT ALL SYSTEMS ARE SUITABLE FOR UTILIZING OUTSIDE AIR. To protect sensitive components against condensation an enclosure heater or closed-loop cooling is recommended. To protect sensitive components against corrosive elements closed-loop cooling is recommended.
STANDARD FEATURES
Baked Powder Finish
Integrated Fan Guards
Integrated Sealing Gasket
IP55 Filter Protection
NEMA 4 or 4X Rating Maintained (if used with provided filter)
Secure Mounting
Six-Foot [1.8m] (minimum) 3-Wire Power Cord
Stainless Steel Shell (NEMA 4X models)
For applications in corrosive or other hostile environments such as those requiring Internal Corrosion Resistant Coatings, especially where chemical/moisture combinations are present.
UL/CSA Ball-Bearing Motors
All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
UL/CUL Listed
Washable, Reuseable Filter
ACCESSORIES AND OPTIONS

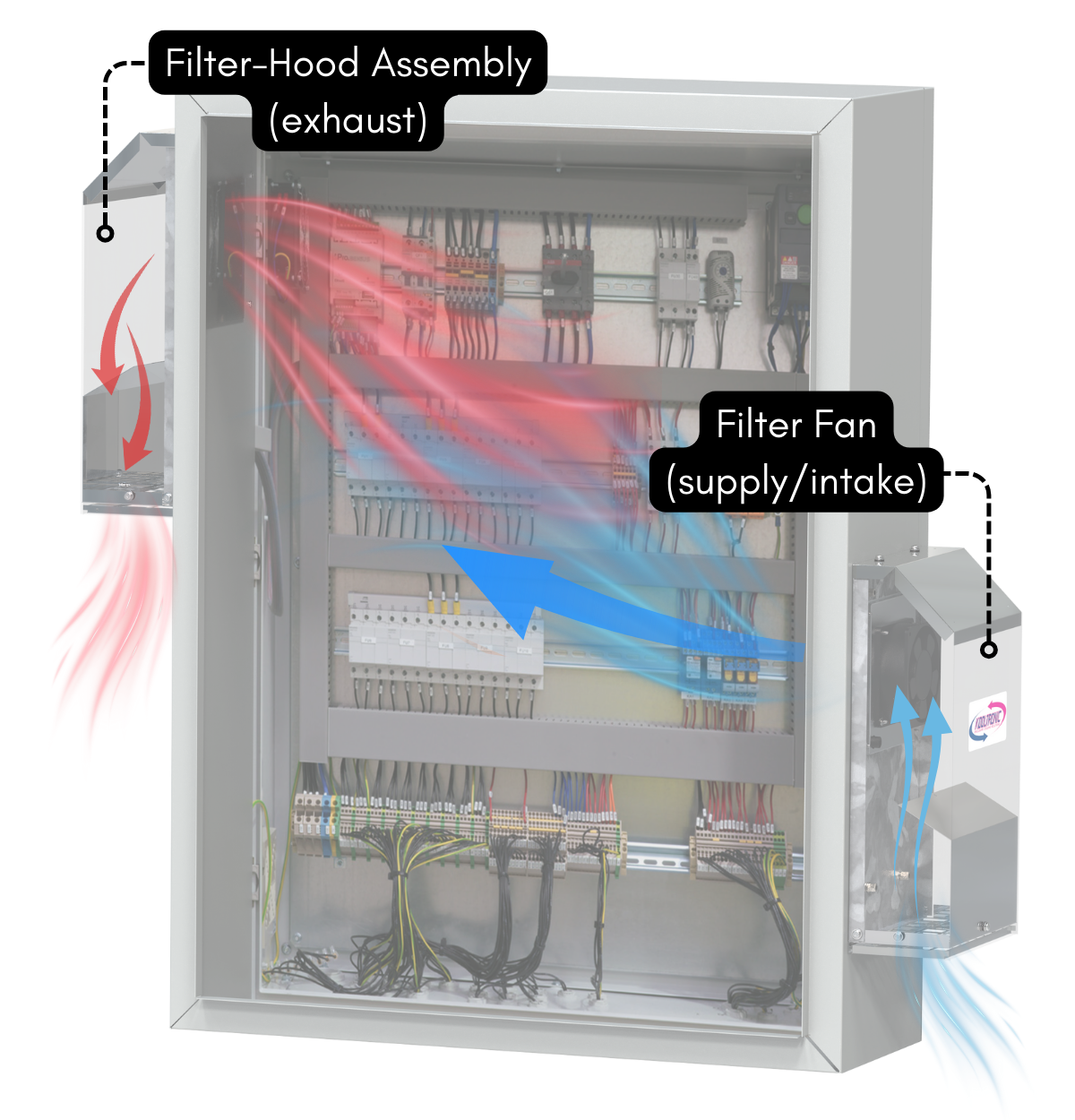

Filter Hood Assemblies (Recommended) for KNP32/KNP36 Series
For all NEMA 4 Units order Part Number KNPA36FL* For all NEMA 4X Units order Part Number KNPA36FLV* *KNPA36FL(V) is the Filter Hood Assembly part number for all K_NP32FL(V) and K_NP36FL(V) Filter Fans.
Other Voltages~ both AC and DC
Replacement Filter for KNP32/KNP36 Series (P/N 0429-02-06)

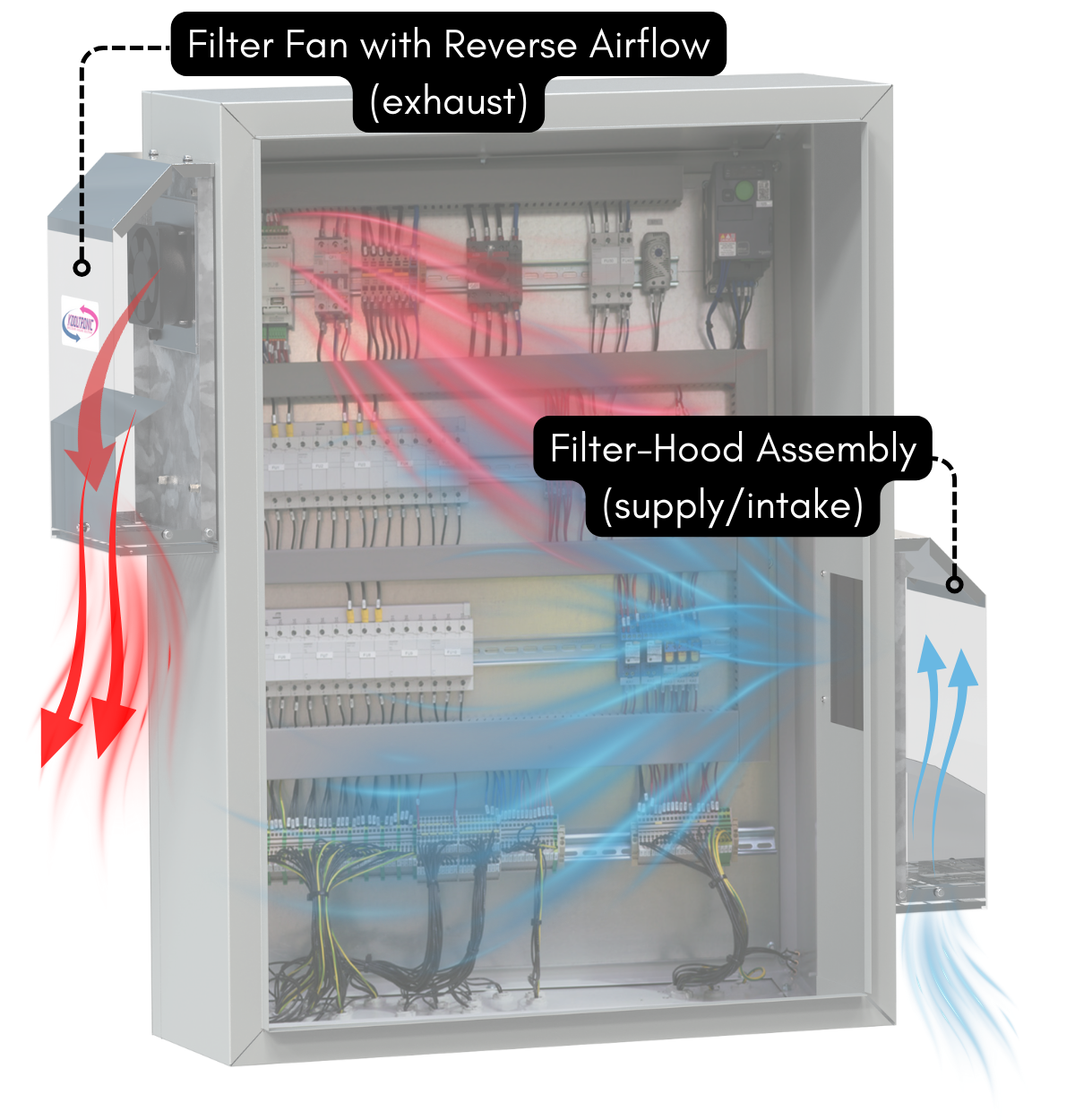

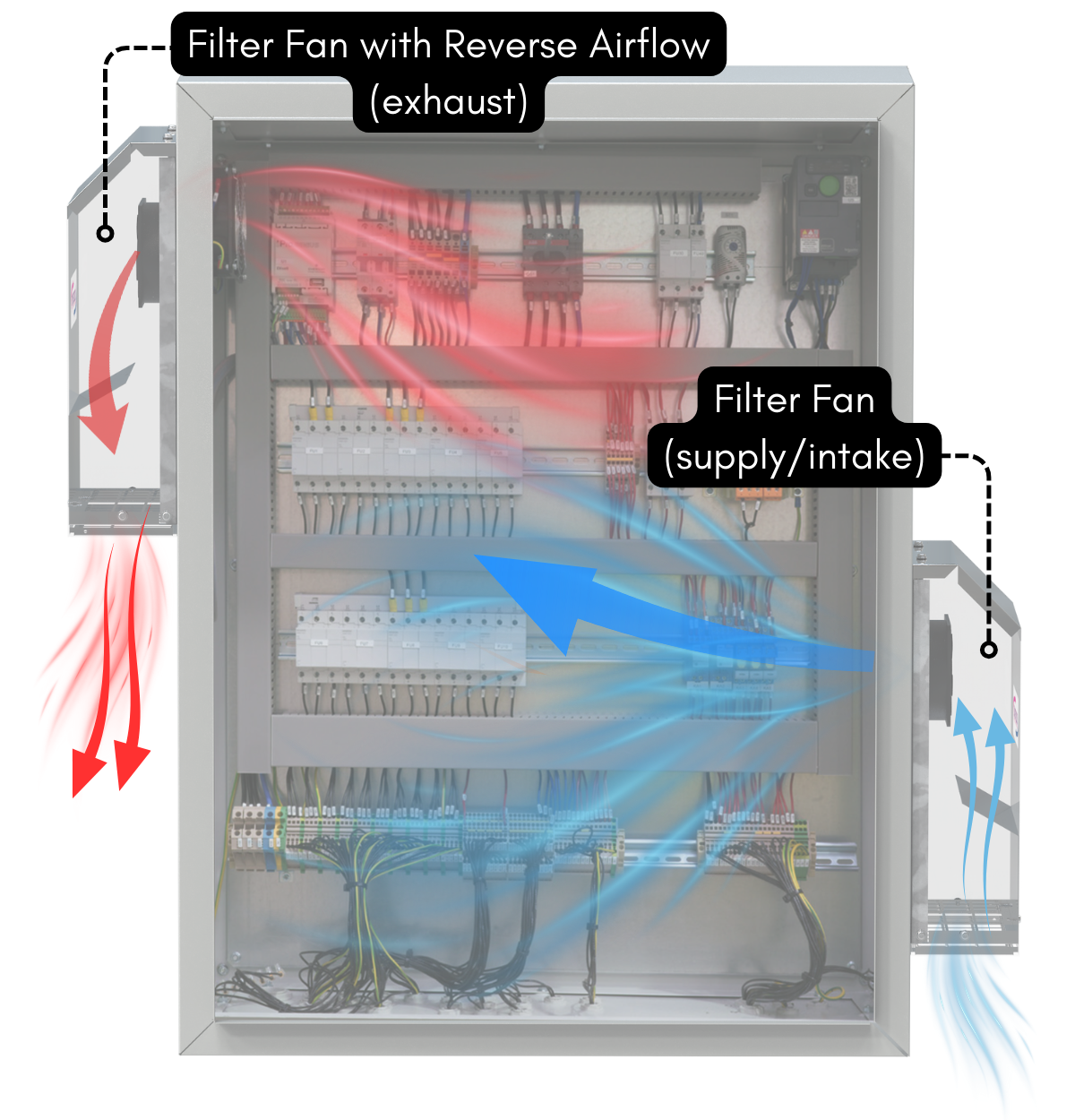

Reversed Airflow Direction KNP32/36
To order reversed airflow direction for the KNP32/KNP36 series, add "R" after series number. Example: KNP32RFL
Controls
Enclosure Heaters
PERFORMANCE
GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
HOW TO ORDER
Specify model number. Example: KNP36FL. For other than 115 VAC operation, add identifying number from Technical Data after the K. Example: K2NP36FL (230 VAC).
Filter: Specify part number.
SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
CFM @0" S.P.
KNP32FL Filter Fans
7.80 x 5.90 x 4.80
20-27
*See model specifics for drawings, dimensions, mounting or cutout plans.
