Profile Series DP47 Air-Cooled
Panel-Mounted Air Conditioners (Discontinued)
Close
Image 1 of 1
Maximize image
Restore image
Select Model Type
Electrical (Volts/Hz):
115/60
100/50
230/60
230/50
Model
NEMA
Rating
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H
Ambient Temp.
Volts
Hz
Running
Amps
Approx.
Weight
°F
°C
Max./Min.
Max./Min.
lbs
kg
KA3C9DP47L
3R & 12
Listed
9000
7400
131/-20
55/-28
115/100
60/50
19.2
135
62
K2A3C9DP47L
3R & 12
Listed
9000
7400
131/-20
55/-28
230
60/50
8.7
135
62
TECHNICAL DATA
Model
NEMA
Rating
BTU/H
Capacity
Volts/Hz
KA3C9DP47L
3R & 12
9000
115/60V, 60/50Hz
UL/CUL Listed or Recognized: Listed
95/95 BTU Rating: 7400
Ambient Max./Min. °F: 131/-20
Ambient Max./Min. °C: 55/-29
Running Amps: 19.2
Approx. weight: 135 lbs. (61 kg)
K2A3C9DP47L
3R & 12
9000
230/60V, 60/50Hz
UL/CUL Listed or Recognized: Listed
95/95 BTU Rating: 7400
Ambient Max./Min. °F: 131/-20
Ambient Max./Min. °C: 55/-29
Running Amps: 8.7
Approx. weight: 135 lbs. (61 kg)
Standard Features
Accessories & Options
Airflow Diagram
Performance
Arrangement
Similar Models
Documents
Click on image for larger view
Close
Image 1 of 1
Maximize image
Restore image
Dimensions, inches [mm], are for reference only and subject to change.
Click on image for larger view
Close
Image 1 of 1
Maximize image
Restore image
Dimensions, inches [mm], are for reference only and subject to change.
Dimensions, inches [mm], are for reference only and subject to change.
Model
Guideline
Dimensions
(H x W x D)*
CFM @0" S.P.
Profile DP17
17.89 x 12.26 x 7.31
0
Profile DP21 (Legacy)
20.97 x 13.55 x 7.31
0
Profile DP43 (Legacy)
43.40 x 17.09 x 9.10
0
Profile DP47 (Legacy)
46.93 x 17.09 x 9.07
0
*See model specifics for drawings, dimensions, mounting or cutout plans.

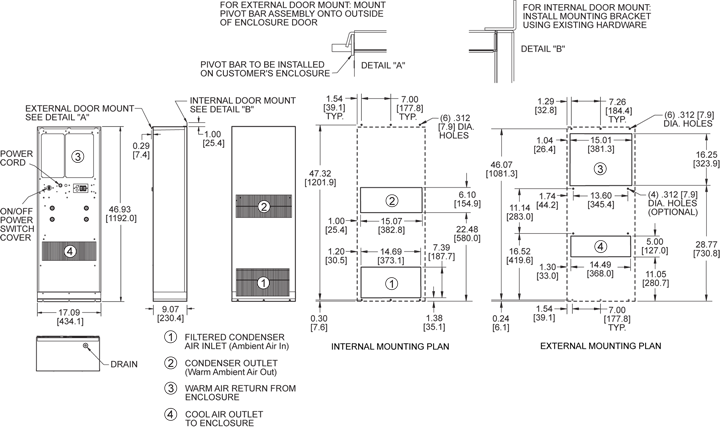

GA Drawing
