TrimLine Series NP47
Air-Cooled Panel-Mounted Air Conditioners

These products are discontinued and no longer in production.
We recommend the Trimline Series as a possible alternative.
Product Photo Thumbnail
LightBox Active Image

Image 1 of 1
NEMA TYPE 12
MAINTAINED
Select Model Type

Electrical (Volts/Hz):
BTU Capacity:

ModelNEMA
Rating
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H
Ambient Temp.VoltsHzRunning
Amps
Approx.
Weight
°F°C
Max./Min.Max./Min.lbskg
KA3C10NP47R12Recognized100007250120/5049/10115/10060/5019.2/18.616073
KA3C10NP47R5612Recognized100007250120/5049/1011550/6018.6/19.216073
K2A4C10NP47L12Recognized100007250120/5049/10230/20060/5011.816073
K2A4C10NP47L512Recognized100007250120/5049/10230501016073
KA3C13NP47R12Recognized130008600115/047/-17115/10060/5018.514566
KA3C13NP47R5612Recognized130008000115/047/-171005018.514566
K2A3C13NP47R12Recognized130008600125/052/-17230/20060/509.6/10.014566
K2A3C13NP47R512Recognized130008000125/052/-17200501014566
Switchable. Switch is internally mounted for security.
Rating shown is for operation at maximum ambient temperature.
Air Conditioners using R22 refrigerant no longer being manufactured after January 1, 2010.

TECHNICAL DATA

ModelNEMA
Rating
BTU/H
Capacity
Volts/Hz
KA3C10NP47R1210000115/60V, 60/50Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 7250
Ambient Max./Min. °F: 120/50
Ambient Max./Min. °C: 49/10
Running Amps: 19.2/18.6
Approx. weight: 160 lbs. (73 kg)
KA3C10NP47R561210000115/60V, 50/60Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 7250
Ambient Max./Min. °F: 120/50
Ambient Max./Min. °C: 49/10
Running Amps: 18.6/19.2
Approx. weight: 160 lbs. (73 kg)
K2A4C10NP47L1210000230/60V, 60/50Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 7250
Ambient Max./Min. °F: 120/50
Ambient Max./Min. °C: 49/10
Running Amps: 11.8
Approx. weight: 160 lbs. (73 kg)
K2A4C10NP47L51210000230/50V, 50Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 7250
Ambient Max./Min. °F: 120/50
Ambient Max./Min. °C: 49/10
Running Amps: 10
Approx. weight: 160 lbs. (73 kg)
KA3C13NP47R1213000115/60V, 60/50Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 8600
Ambient Max./Min. °F: 115/0
Ambient Max./Min. °C: 46/-18
Running Amps: 18.5
Approx. weight: 145 lbs. (66 kg)
KA3C13NP47R561213000100/50V, 50Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 8000
Ambient Max./Min. °F: 115/0
Ambient Max./Min. °C: 46/-18
Running Amps: 18.5
Approx. weight: 145 lbs. (66 kg)
K2A3C13NP47R1213000230/60V, 60/50Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 8600
Ambient Max./Min. °F: 125/0
Ambient Max./Min. °C: 52/-18
Running Amps: 9.6/10.0
Approx. weight: 145 lbs. (66 kg)
K2A3C13NP47R51213000200/50V, 50Hz
UL/CUL Listed or Recognized: Recognized
95/95 BTU Rating: 8000
Ambient Max./Min. °F: 125/0
Ambient Max./Min. °C: 52/-18
Running Amps: 10
Approx. weight: 145 lbs. (66 kg)
Switchable. Switch is internally mounted for security.
Rating shown is for operation at maximum ambient temperature.
Air Conditioners using R22 refrigerant no longer being manufactured after January 1, 2010.
  • Standard Features
  • Accessories & Options
  • Airflow Diagram

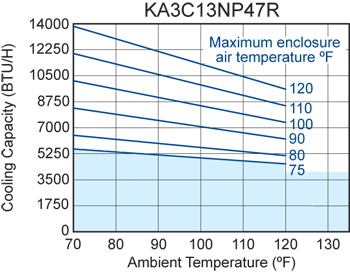

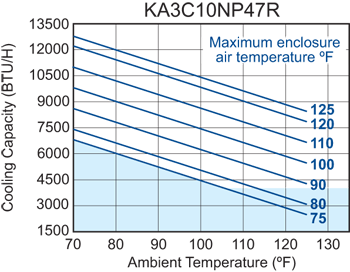

  • Performance
  • Arrangement
  • Similar Models
  • Documents
• Built-in Condensate Evaporator
Built-in Condensate Evaporator eliminates need for draining condensate under normal operating conditions. May not be adequate in extremely high humidity with open or leaky enclosure. Overflow condensate drain fitting and hose are included.
• CFC-Free or Low-ODP Refrigerant
CFC-free R134a Refrigerant is used in all air conditioners for which compatible compressors are available. All others contain low Ozone Depleting Potential (ODP) R22 Refrigerant. The model number reflects the refrigerant. A 4 between the A and C signifies R134a; a 3 signifies R22. Consult KOOLTRONIC for status at time of requirement.
• Filter
All Kooltronic filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reusable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacement filters are available and can be ordered online at kooltronic.com/spareparts.
• Low Temperature Control Thermostat
Electronic Thermostatic Low Temperature Control prevents over-cooling and provides energy-efficient operation.
• M/TAB Mounting System
• NEMA 12 Rating Maintained (UL50)
All units are fully gasketed for tight, leak-proof installation, in compliance with the NEMA 12 Enclosure Ratings.
• Reversible Condenser Outlet Blower (Not Standard on 13NP47)
• UL/CUL Listed/ Recognized*
All models are UL/CUL Listed.

• Aluminum Shell
Where light weight and/or compatibility with appearance of aluminum enclosures are required. Unpainted Type 5052 is standard. Other types and ultraviolet-resistant baked powder finish are available.
• Enclosure Heater
Eliminates damaging condensation, increasing reliability of electrical enclosure components.
• Filter Recoating Adhesive
This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
• High Capacity Condensate Evaporator
Condensate evaporator kits are available for attachment to the bottom of Air-Cooled Panel Mounted Air Conditioners. Condensate is collected, vaporized and discharged to the surrounding air. All units include a safety overflow drain which discharges excessive condensate when required. Overflow may occur when cabinets are poorly sealed, or when cabinet doors are frequently opened, permitting the invasion of moisture-laden air.
• Internal Corrosion Protection
This protection increases reliability in hostile environments. This protection for the refrigeration system consists of an air cured coating applied to the brazed joints on the condenser side, providing a degree of protection from corrosive environments. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or GuardianX Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
• Lifting Eyes
Heavy-gauge steel lifting eyes, attached to the side panels, assist in positioning units.
• Low Airflow Detector
Similar to the Airflow Switch shown in the Blower Accessories Section, the switch is installed in a suitable location in the air conditioner to detect loss of airflow, and sends a signal to a terminal block, through which user-installed wiring and warning devices are activated.
• Low Ambient Kit
Maintains sufficient operating pressures when ambient temperatures drop below 50°F. Includes a compressor heater and a pressure device that senses the reduced discharge pressure and modulates the condenser blower. Effective to a minimum ambient temperature of 0°F.
• Remote Thermostat Relay
Used only with a user-installed remote thermostat or the Kooltronic KLLC100 Lead Lag Controller, this 24VAC relay can be used for the sequential operation of two units or with a single unit. An external terminal strip is provided for field interconnection. NOTE: User-installed thermostat must have a set point of 75°F with a differential of 11°F. NOTE: A factory installed thermostat is not provided with this option.
• Replacement Filters
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
• Special controls or indicators
• Special motors~ line cords or connectors
• Special paint finishes
• Stainless Steel Shell
• Temperature Alarm
A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.
Click on image for larger view
Airflow Diagram Thumbnail
LightBox Active Image

Image 1 of 1
TrimLine NP47 (Dis.)airflow diagram

Dimensions, inches [mm], are for reference only and subject to change.

Performance Charts for this product family are not currently available. Please contact Customer Service for more information.
Click on image for larger view
General Arrangement Thumbnail
LightBox Active Image

Image 1 of 1
TrimLine NP47 (Dis.) general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

Dimensions, inches [mm], are for reference only and subject to change.
ModelGuideline
Dimensions
(H x W x D)*
CFM @0" S.P.
TrimLine NP3636.75 x 15.06 x 12.250
*See model specifics for drawings, dimensions, mounting or cutout plans.
  • Data Sheet
    KCH20 & KCH30 Product Data Sheet [60Kb]
    NP47 Product Data Sheet (Discontinued) [291Kb]
    NP47 Product Data Sheet (Legacy) [291Kb]
    WNP47 Product Data Sheet [1008Kb]
    KXNP47 Product Data Sheet [75Kb]
  • GA Drawing
    NP47 General Arrangement Drawing [113Kb]
    KXNP47 General Arrangement Drawing [86Kb]
  • Installation Instructions
    K_A4C7NP47_ Installation Instructions (2 pages) [120Kb]
  • Literature
    Air Conditioner Quick-Sheet [105Kb]
    Condensate Evaporator Kits [241Kb]
    Condensation and Electronics [3983Kb]
    Electronic Enclosure Cooling With Special Purpose Air Conditioners [254Kb]
    Hazardous Location Series White Paper [234Kb]
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Slimkool Series Flyer [584Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Airflow Switch Data Sheet [159Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    KLLC100 Lead-Lag Controller (Discontinued) [38Kb]
    KLLC480 Lead-Lag Controller [79Kb]
    TrimLine NP47 Operator's Manual, 13000 BTU/H [241Kb]
    TrimLine NP47 Operator's Manual, 7000 & 10000 BTU/H [192Kb]
  • Wiring Diagram
    KAC_NP33, KAC_NP36, KAC_NP47 Wiring Diagram (Ladder) [80Kb]
