KBB25-25 Double Centrifugal Blowers

TECHNICAL DATA

Click to Request Quote	Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Amps		Watts	Approx. Weight		Spare and Replacement Parts
	Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Run	L.R.	Watts	Lbs.	Kg.

	KBB25-25	115/60	155	0.8	3300	1.3	2.1	85	7	3.2	Order Parts
	KBB25-25	115/50	128	0.57	3300	1.3	2.1	85	7	3.2	Order Parts
	K2BB25-25	230/60	155	0.8					7	3.2	Order Parts
	K2BB25-25	230/50	128	0.57					7	3.2	Order Parts

NOTE: Minimum Order Quantities Apply.
For 230 Volt details, contact factory.

Click on image for larger view

TECHNICAL DATA

Click to Request Quote:
Model Number:	KBB25-25	KBB25-25	K2BB25-25	K2BB25-25
Volts/Hz:	115/60	115/50	230/60	230/50
CFM @ 0" S.P.:	155	128	155	128
Cutoff S.P.:	0.8	0.57	0.8	0.57
Nominal RPM:	3300	3300
Amps Run:	1.3	1.3
Amps L.R.:	2.1	2.1
Watts:	85	85
Weight Lbs.:	7	7	7	7
Weight Kg.:	3.2	3.2	3.2	3.2
Spare and Replacement Parts	Order Parts	Order Parts	Order Parts	Order Parts

NOTE: Minimum Order Quantities Apply.
For 230 Volt details, contact factory.

STANDARD FEATURES

155 CFM Capacity
Full performance in any mounting position
Rugged construction with baked powder finish
UL/CSA Ball-Bearing Motors
- All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
12-inch [304.8mm] (minimum) power and ground leads

ACCESSORIES AND OPTIONS


Controls	Heaters

PERFORMANCE CHART

Airflow vs. static pressure curves are shown for 60 Hz (solid line) and 50 Hz (broken line) inputs. Static pressure is in inches of water.

GENERAL ARRANGEMENT
Click on image for larger view

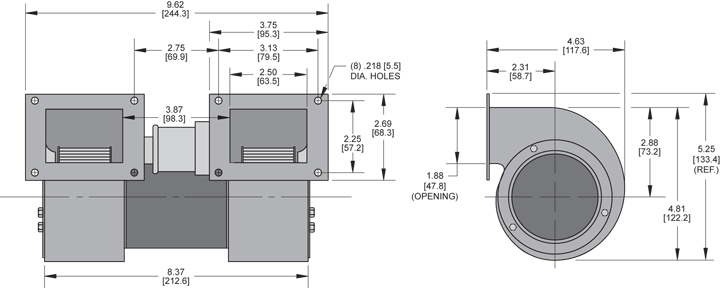

KBB25-25 Double Blower general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

HOW TO ORDER

Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2BB25-25. NOTE: Minimum Order Quantities Apply. NOTE: Some 230 Volt models may not be available or minimum purchases may apply. Contact Kooltronic for information.

SIMILAR MODELS

Model	Guideline Dimensions (H x W x D)*	CFM @0" S.P.
KBB30-30 Double Blower	6.06 x 9.50 x 5.38	162-185
KBB36-36 Double Blower	7.13 x 12.06 x 6.44	340-390
KBB37-37 Double Blower	7.19 x 13.50 x 6.44	405-465
KBB43-43 Double Blower	8.25 x 11.63 x 7.31	380-450
KBB50-50 Double Blower	9.25 x 13.63 x 8.25	420-500
KBB57-57 Double Blower	9.75 x 13.88 x 8.44	480-560
KBB60-60 Double Blower	11.06 x 12.00 x 9.25	585-665
KBB64-64 Double Blower	11.38 x 14.00 x 10.63	750-890
KBB80-80 Double Blower	13.75 x 14.00 x 12.13	1020-1200
*See model specifics for drawings, dimensions, mounting or cutout plans.
