KBB30 Single Blower Air Conditioner

Image 1 of 1

Select Model Type

Electrical:
Display all model types

Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Amps		Watts	Approx. Weight
Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Run	L.R.	Watts	Lbs.	Kg.
KBB30	115/60	95	0.85	3150	0.6	0.8	41	5	2.3
	115/50	75	0.56	3150	0.6	0.8	41	5	2.3

TECHNICAL DATA

Model Number	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	Watts
KBB30	115/60	95	0.85	41
Cutoff S.P.: 0.85 RPM Nominal: 3150 Amps, Run: 0.6 Amps, L.R.: 0.8 Approx. weight: 5 lbs. (2 kg)
KBB30	115/50	75	0.56	41
Cutoff S.P.: 0.56 RPM Nominal: 3150 Amps, Run: 0.6 Amps, L.R.: 0.8 Approx. weight: 5 lbs. (2 kg)

Standard Features
Accessories & Options
Performance
Arrangement
Similar Models
Documents

• 95 CFM Capacity
• Full performance in any mounting position
• Rugged construction with baked powder finish
• UL/CSA Ball-Bearing Motors

All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).

• 12-inch [304.8mm] (minimum) power and ground leads

• Airflow Switch (Basic Blowers)
• Automatic Speed Control (Basic Blowers)
• Inlet Finger Guard
• Other voltages and frequencies
• Special external paint finishes
• Special line cord or connectors

Click on image for larger view
General Arrangement Thumbnail

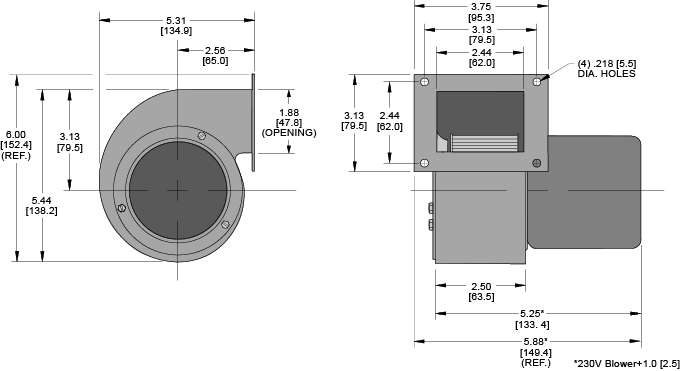

KBB30 Single Blower general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

Model	Guideline Dimensions (H x W x D)*	CFM @0" S.P.
KBB25 Single Blower	5.38 x 5.19 x 4.56	52-60
KBB35 Single Blower	7.38 x 6.38 x 6.38	114-140
KBB36 Single Blower	7.19 x 8.56 x 6.44	190-235
KBB43 Single Blower	8.25 x 8.25 x 7.31	256-305
KBB49 Single Blower	8.19 x 10.50 x 7.31	365-425
KBB50 Single Blower	9.19 x 8.94 x 8.25	245-300
*See model specifics for drawings, dimensions, mounting or cutout plans.
