KBB65 High Pressure Centrifugal Blowers

TECHNICAL DATA

Click to Request Quote	Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Amps		Watts	Approx. Weight		Spare and Replacement Parts
	Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Run	L.R.	Watts	Lbs.	Kg.

	KBB65	115/60	475	6.3	3000	7.6	15	810	16	7.3	Order Parts
	KBB65	115/50	430	4.5	3000	7.6	15	810	16	7.3	Order Parts
	K2BB65	230/60	475	6.3					16	7.3	Order Parts
	K2BB65	230/50	430	4.5					16	7.3	Order Parts

For 230 Volt details, contact factory.

Click on image for larger view

TECHNICAL DATA

Click to Request Quote:
Model Number:	KBB65	KBB65	K2BB65	K2BB65
Volts/Hz:	115/60	115/50	230/60	230/50
CFM @ 0" S.P.:	475	430	475	430
Cutoff S.P.:	6.3	4.5	6.3	4.5
Nominal RPM:	3000	3000
Amps Run:	7.6	7.6
Amps L.R.:	15	15
Watts:	810	810
Weight Lbs.:	16	16	16	16
Weight Kg.:	7.3	7.3	7.3	7.3
Spare and Replacement Parts	Order Parts	Order Parts	Order Parts	Order Parts

For 230 Volt details, contact factory.

STANDARD FEATURES

475 CFM Capacity
Designed for mid-range static pressures
Full performance in any mounting position
Rugged construction with baked powder finish
UL/CSA Ball-Bearing Motors
- All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).
12-inch [304.8mm] (minimum) power and ground leads

ACCESSORIES AND OPTIONS


Controls	Heaters

PERFORMANCE CHART

Airflow vs. static pressure curves are shown for 60 Hz (solid line) and 50 Hz (broken line) inputs. Static pressure is in inches of water.

GENERAL ARRANGEMENT
Click on image for larger view

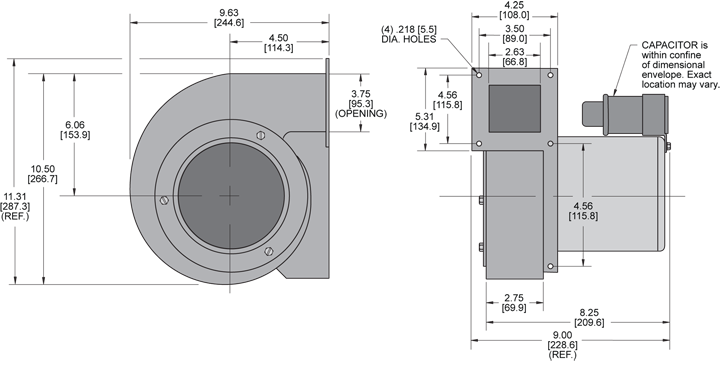

KBB65 H.P. Blower general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

HOW TO ORDER

Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2BB65. NOTE: Some 230 Volt models may not be available or minimum purchases may apply. Contact Kooltronic for information.

SIMILAR MODELS

Model	Guideline Dimensions (H x W x D)*	CFM @0" S.P.
KBB38 H.P. Blower	7.38 x 7.50 x 6.38	130-160
KBB47 H.P. Blower	8.18 x 7.38 x 7.31	167-200
KBB51 H.P. Blower	9.25 x 8.44 x 8.13	218-260
KBB58 H.P. Blower	9.88 x 8.63 x 8.56	226-300
KBB63 H.P. Blower	11.19 x 8.75 x 9.69	322-390
*See model specifics for drawings, dimensions, mounting or cutout plans.
