Guardian/GuardianX DP47 NEMA 12, 3R & 4
Air-Cooled Panel-Mounted Air Conditioners

download product information
Download
Product
Information

TECHNICAL DATA

Click to Request Quote
Model
NEMA
Rating
Normally
In Stock
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H

Ambient Temp.
Volts
*
Hz
**
Running
Amps
Approx.
Weight
(lbs.)
ºF
ºC
Max./Min.
Max./Min.
lbs
kg
KNA4C9DP47L
4
Yes
Listed
9000
7400
131/-20
55/-29
115/100 60/50
19.2/19.2
135
61
K2NA4C9DP47L
4

Listed
9000
7400
131/-20
55/-29
230/200
60/50
9.0/9.0
135
61
* 115V 60 Hz models perform at reduced capacity when operated at 100V 50 Hz.
** Rating shown is for operation at maximum ambient temperature.

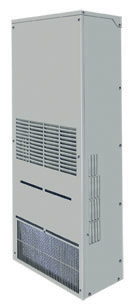

Guardian/GuardianX DP47L Air Conditioner
UL Logo TYPE 12, 3R & 4
MAINTAINED



STANDARD FEATURES




ACCESSORIES AND OPTIONS

Enclosure Lights
Enclosure Lights




Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.
  AIRFLOW & DIMENSION PERFORMANCE CHART
GENERAL ARRANGEMENT DRAWING (click and drag to pan)
Dimensions, inches [mm], are for reference only and subject to change.



SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
BTU/H Range
Guardian DP43L
43.49 x 17.25 x 9.77
7000
Guardian DP50L
50.05 x 20.14 x 13.00
13100 - 14000
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS
TypeDescriptionSize
2-D Drawing of the Mounting Plan KNA4C9DP47L and/or LV Drawing of the Mounting Plan - NEW31Kb
3-D Solid Model KNA4C9DP47L and/or LV Solid Model - NEW5844Kb
Data Sheet KLLC100-480 Lead-Lag Controller Product Data Sheet58Kb
Data Sheet Guardian/GuardianX Series DP47 Product Data Sheet - NEW143Kb
GA Drawing Guardian/GuardianX Series DP47 General Arrangement Drawing114Kb
GA Drawing Guardian/GuardianX Series DP47 General Arrangement Drawing w/ Programmable T-stat - NEW78Kb
Installation Instructions Guardian/GuardianX Series DP47 Installation Instructions (2 pages) - NEW187Kb
Literature Air Conditioner Quick-Sheet - NEW105Kb
Literature Condensation and Electronics - NEW3983Kb
Literature Electronic Enclosure Cooling With Special Purpose Air Conditioners254Kb
Literature Hazardous Location Series White Paper234Kb
Literature Increasing the Lifespan and Reliability of Electrical Components - NEW212Kb
Literature KLLC100 Lead-Lag Controller (1 page)58Kb
Literature Guardian Series Brochure - NEW256Kb
Literature Kooltronic Design Guide/Catalog (215 pages) - NEW24440Kb
Literature Kooltronic Standard Warranty55Kb
Literature Short-Form Catalog (16 pages)897Kb
Operator's Manual KLLC100 Lead-Lag Controller38Kb
Operator's Manual KLLC480 Lead-Lag Controller79Kb
Operator's Manual Guardian/GuardianX Series DP47 Operator's Manual - NEW788Kb
Wiring Diagram Guardian/GuardianX Series K2NA4C9DP47L Wiring Diagram (Low Temp. T-stat - Point-to-Point)72Kb
Wiring Diagram Guardian/GuardianX Series K2NA4C9DP47LBDY Wiring Diagram (Remote T-stat (LT) - Point-to Point)70Kb
Wiring Diagram Guardian/GuardianX Series K2NA4C9DP47LDF Wiring Diagram (Remote T-stat (LT) - Point-to-Point)66Kb
Wiring Diagram Guardian/GuardianX Series KNA4C9DP47L Wiring Diagram (Low Temp T-stat - Point-to-Point)79Kb
Wiring Diagram Guardian/GuardianX Series KNA4C9DP47LD Wiring Diagram (Remote T-stat (LT) - Point-to Point)68Kb
Wiring Diagram Guardian/GuardianX Series DP43 & DP47 Wiring Diagram (Low Temp. T-stat - Ladder)56Kb
Wiring Diagram Guardian/GuardianX Series DP43 & DP47 Wiring Diagram (Prgm. T-stat - Ladder) - NEW48Kb
Wiring Diagram Guardian/GuardianX Series K2NA4C9DP47L Wiring Diagram (Prgm. T-stat - Point-to-Point) - NEW82Kb
Wiring Diagram Guardian/GuardianX Series K2NA4C9DP47LD Wiring Diagram (Remote T-stat (Prgm) - Point-to-Point) - NEW79Kb
Wiring Diagram Guardian/GuardianX Series KNA4C9DP47L Wiring Diagram (Prgm. T-stat - Point-to-Point) - NEW82Kb
Wiring Diagram Guardian/GuardianX Series KNA4C9DP47LD Wiring Diagram (Remote T-stat (Prgm)- Point-to-Point) - NEW79Kb
