Guardian DP15 NEMA 12, 3R & 4
Air-Cooled Panel-Mounted Air Conditioners

Download
Product
Information

TECHNICAL DATA

Click to Request Quote	Model	NEMA Rating	UL/CUL Listed or Recognized	BTU/H Capacity	95/95 Rating BTU/H	Ambient Temp.	Volts	Hz	Running Amps	Approx. Weight	Spare and Replacement Parts
°F	°C
Max./Min.	Max./Min.	lbs	kg
	KNA4C1DP15L	4	Listed	1160	950	131/-20	55/-28	115/100	60/50	4.3/4.3	26	12	Order Parts

Click to
Request
Quote

Model

NEMA
Rating

UL/CUL
Listed or
Recognized

BTU/H
Capacity

95/95
Rating
BTU/H

Ambient Temp.

Volts

Running
Amps

Approx.
Weight

Spare and
Replacement
Parts

°F

°C

Max./Min.

lbs

KNA4C1DP15L

Listed

1160

950

131/-20

55/-28

115/100

60/50

4.3/4.3

Order Parts

115V 60 Hz models perform at reduced capacity when operated at 100V 50 Hz.
Rating shown is for operation at maximum ambient temperature.

Click on image for larger view

NEMA
TYPE 12, 3R & 4
MAINTAINED

TECHNICAL DATA

Click to Request Quote:
Model Number:	KNA4C1DP15L
NEMA Rating:	4
UL/CUL Listed or Recognized:	Listed
BTU/H Capacity:	1160
95/95 Rating BTU/H:	950
Ambient Temp °.F Max./Min.:	131/-20
Ambient Temp °.C Max./Min.:	55/-28
Volts:	115/100
Hz:	60/50
Running Amps:	4.3/4.3
Approx. Weight lbs.:	26
Approx. Weight kg.:	12
Spare and Replacement Parts	Order Parts

115V 60 Hz models perform at reduced capacity when operated at 100V 50 Hz.
Rating shown is for operation at maximum ambient temperature.

This model is also available with a NEMA 4X rating as the Guardian-X DP15LV which includes
Internal Corrosion Protection and Stainless Steel Shell as standard features.

STANDARD FEATURES

ACCESSORIES AND OPTIONS

For Guardian DP15 models the filter part number is 525F.

Enclosure Lights

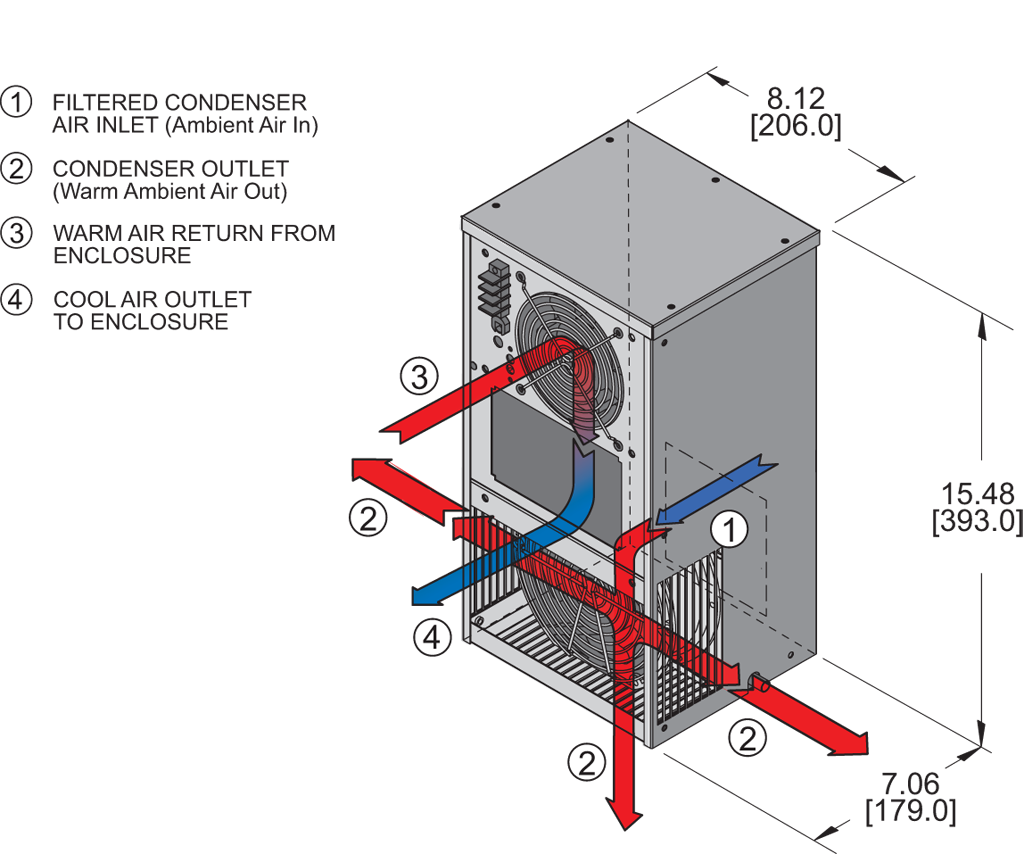

AIRFLOW
Click on image for larger view

Guardian DP15 Air Conditioner isometric illustration

PERFORMANCE

GENERAL ARRANGEMENT
Click on image for larger view

Guardian DP15 Air Conditioner general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

Dimensions, inches [mm], are for reference only and subject to change.

Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.

SIMILAR MODELS

Model	Guideline Dimensions (H x W x D)*	BTU/H Rating
Guardian DP21	21.00 x 12.00 x 10.18	3000
Guardian DP21LV	21.00 x 12.00 x 10.18	3000
*See model specifics for drawings, dimensions, mounting or cutout plans.
