TrimLine Series WNP33
Water-Cooled Panel-Mounted Air Conditioners

Legacy products are no longer in normal production. Consult factory for availability.
We recommend current  WNP Series alternatives.
Product Photo Thumbnail
LightBox Active Image

Image 1 of 1
Select Model Type

Electrical (Volts/Hz):

ModelBTU/H
Capacity
Water Flow
(GPM)
@85°F*
VoltsHzRunning
Amps
Approx.
Weight
lbskg
KA4C4WNP3340001115/10060/5010.48539
K2A4C4WNP3340001230/20060/505.48539
Rated for full capacity load at 85°F water. Usage will vary at lower load or cooler water conditions.
Rating shown is for operation at maximum water temperature.

TECHNICAL DATA

ModelBTU/H
Capacity
Volts/Hz
KA4C4WNP334000115/60V, 60/50Hz
Water Flow (GPM)@85°F: 1
Running Amps: 10.4
Approx. weight: 85 lbs. (39 kg)
K2A4C4WNP334000230/60V, 60/50Hz
Water Flow (GPM)@85°F: 1
Running Amps: 5.4
Approx. weight: 85 lbs. (39 kg)
Rated for full capacity load at 85°F water. Usage will vary at lower load or cooler water conditions.
Rating shown is for operation at maximum water temperature.
  • Standard Features
  • Accessories & Options
  • Airflow Diagram
  • Performance
  • Arrangement
  • Similar Models
  • Documents
• CFC-Free Refrigerant
CFC-free R134a Refrigerant is used
• Closed-Loop Cooling
The enclosure interior airflow system is isolated from the ambient airflow or waterflow system. No ambient air can invade the cool, dehumidified sensitive component compartment.
• Excess Pressure Control
• Low Temperature Control Thermostat
Electronic Thermostatic Low Temperature Control prevents over-cooling and provides energy-efficient operation.
• Water Regulating Valve

• Adapter
A plate or plenum needed to replace older Kooltronic or competitor units.
• Compressor Short Cycle Protector
Available as a Standard Feature on models with Programmable Thermostat. Protects the compressor from possible damage due to harmful short cycling, (frequent starting) where temperature controls enable the compressor to restart frequently or after a power interruption. These conditions could be due to low or fluctuating heat loads within the electrical enclosure or a power failure. The Compressor Short Cycle Protector will prevent the compressor from starting when it has been shut off for less than several minutes or the power was interrupted. By limiting the number of compressor starts per hour, the life of the compressor is prolonged. It is recommended where installations are subject to solar gain and or changes in the enclosure internal load due to the degree of usage of the equipment being cooled. It is also recommended where higher capacity units are specified in anticipation of the future addition of heat producing equipment being added to the enclosure.
• Condenser Access Panel
Expressly designed for quick, convenient access to the condenser coil for easy cleaning and servicing. Recommended for units operating in dirty environments, the panel is easily removed and replaced by use of a few fasteners, without removal of the entire rear cover panel.
• Enclosure Heater
Eliminates damaging condensation, increasing reliability of electrical enclosure components.
• High Capacity Condensate Evaporator
Condensate evaporator kits are available for attachment to the bottom of Air-Cooled Panel Mounted Air Conditioners. Condensate is collected, vaporized and discharged to the surrounding air. All units include a safety overflow drain which discharges excessive condensate when required. Overflow may occur when cabinets are poorly sealed, or when cabinet doors are frequently opened, permitting the invasion of moisture-laden air.
• Internal Corrosion Protection
This protection increases reliability in hostile environments. This protection for the refrigeration system consists of an air cured coating applied to the brazed joints on the condenser side, providing a degree of protection from corrosive environments. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or GuardianX Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
• Lifting Eyes
Heavy-gauge steel lifting eyes, attached to the side panels, assist in positioning units.
• Low Airflow Detector
Similar to the Airflow Switch shown in the Blower Accessories Section, the switch is installed in a suitable location in the air conditioner to detect loss of airflow, and sends a signal to a terminal block, through which user-installed wiring and warning devices are activated.
• Remote Thermostat Relay
Used only with a user-installed remote thermostat or the Kooltronic KLLC100 Lead Lag Controller, this 24VAC relay can be used for the sequential operation of two units or with a single unit. An external terminal strip is provided for field interconnection. NOTE: User-installed thermostat must have a set point of 75°F with a differential of 11°F. NOTE: A factory installed thermostat is not provided with this option.
• Special controls or indicators
• Special materials or finishes
• Special motors, line cords or connectors
• Stainless or Aluminum Shell
• Temperature Alarm
A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.
Click on image for larger view
Airflow Diagram Thumbnail
LightBox Active Image

Image 1 of 1
TrimLine WNP33airflow diagram

Dimensions, inches [mm], are for reference only and subject to change.

Performance Charts for this product family are not currently available. Please contact Customer Service for more information.
Click on image for larger view
General Arrangement Thumbnail
LightBox Active Image

Image 1 of 1

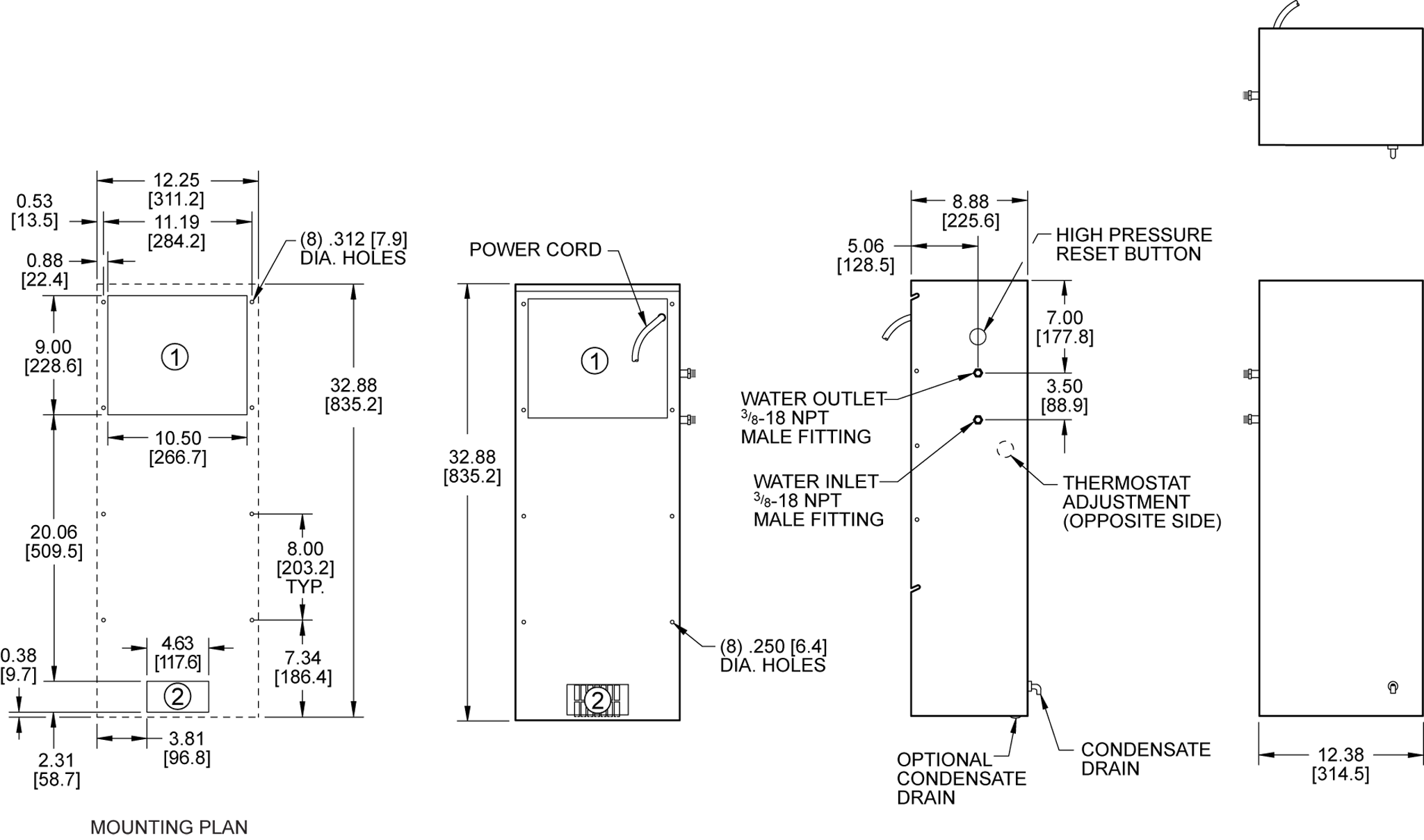

TrimLine WNP33 general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

Dimensions, inches [mm], are for reference only and subject to change.
ModelGuideline
Dimensions
(H x W x D)*
CFM @0" S.P.
TrimLine WNP2828.50 x 10.13 x 11.500
TrimLine WNP3636.78 x 15.17 x 12.250
*See model specifics for drawings, dimensions, mounting or cutout plans.
  • Data Sheet
    KCH20 & KCH30 Product Data Sheet [60Kb]
    WNP33 Product Data Sheet [68Kb]
  • GA Drawing
    WNP33 General Arrangement Drawing [83Kb]
  • Installation Instructions
    K_A4C4WNP33 Installation Instructions (2 pages) [146Kb]
  • Literature
    Air Conditioner Quick-Sheet [105Kb]
    Condensate Evaporator Kits [241Kb]
    Condensation and Electronics [3983Kb]
    Electronic Enclosure Cooling With Special Purpose Air Conditioners [254Kb]
    Hazardous Location Series White Paper [234Kb]
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Slimkool Series Flyer [584Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Airflow Switch Data Sheet [159Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    KLLC100 Lead-Lag Controller (Discontinued) [38Kb]
    KLLC480 Lead-Lag Controller [79Kb]
    TrimLine WNP33 & WNP36 Operator's Manual [169Kb]
  • Wiring Diagram
    TrimLine Water-Cooled Series K2A4C3WNP33H (Point-to-Point) [44Kb]
    TrimLine Water-Cooled Series KA4C2-5WNP33 (Point-to-Point) [45Kb]
    TrimLine Water-Cooled Series KAC_WNP33, 47 Wiring Diagram (Ladder) [58Kb]
