KBB435 Quad. Blower Air Conditioner

Image 1 of 1

Select Model Type

Electrical:
Display all model types

Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Amps		Watts	Approx. Weight
Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Run	L.R.	Watts	Lbs.	Kg.
KBB435	115/60	550	1.6	3150	2.0	3.1	220	11	5
	115/50	490	1.1	3150	2.0	3.1	220	11	5

For 230 Volt details, contact factory.

TECHNICAL DATA

Model Number	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	Watts
KBB435	115/60	550	1.6	220
Cutoff S.P.: 1.6 RPM Nominal: 3150 Amps, Run: 2.0 Amps, L.R.: 3.1 Approx. weight: 11 lbs. (5 kg)
KBB435	115/50	490	1.1	220
Cutoff S.P.: 1.1 RPM Nominal: 3150 Amps, Run: 2.0 Amps, L.R.: 3.1 Approx. weight: 11 lbs. (5 kg)

For 230 Volt details, contact factory.

Standard Features
Accessories & Options
Performance
Arrangement
Similar Models
Documents

• 550 CFM Capacity
• Extremely quiet, efficient operation
• Full performance in any mounting position
• Rugged construction with baked powder finish
• UL/CSA Ball-Bearing Motors

All motors, whether permanent split capacitor or shaded pole, are UL/CSA Recognized and include automatic-reset thermal overload protection. Designed for low temperature rise, Kooltronic motors are also cooled by the blowers' intake air, for maximum motor life. All motors are UL Recognized and carry a Declaration of Conformity to applicable CE Standards. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C).

• 12-inch [304.8mm] (minimum) power and ground leads

• Airflow Switch (Basic Blowers)
• Automatic Speed Control (Basic Blowers)
• Inlet Finger Guard
• Other voltages and frequencies
• Special external paint finishes
• Special line cord or connectors

Click on image for larger view
General Arrangement Thumbnail

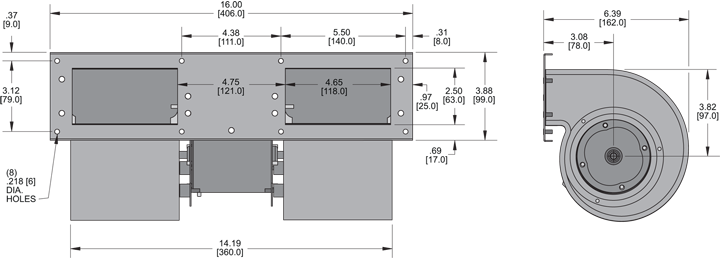

KBB435 Quad. Blower general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

Model	Guideline Dimensions (H x W x D)*	CFM @0" S.P.
KBB430 Quad. Blower	6.25 x 14.94 x 5.00	305-320
KBB443 Quad. Blower	7.94 x 17.00 x 7.38	770-920
KBB451 Quad. Blower	9.31 x 14.88 x 8.31	650-800
*See model specifics for drawings, dimensions, mounting or cutout plans.
