H9 Series Switchable
Air-Cooled Rack-Mounted Air Conditioners

Download
Product
Information

These products are discontinued and no longer in production.

We recommend the RML Series as a possible alternative.

TECHNICAL DATA

Click to Request Quote	Model	NEMA Rating	UL/CUL Listed or Recognized	BTU/H Capacity	95/95 Rating BTU/H	Ambient Temp.	Volts	Hz	Running Amps	Approx. Weight	Spare and Replacement Parts
°F	°C
Max./Min.	Max./Min.	lbs	kg
n/a	KA4C3.5H9R56		Recognized	3500	2700	120/50	49/10	115	50/60	16.0/15.4	95	44	Coming Soon
n/a	K2A4C3.5H9R5	NULL	Recognized	3500	2700	125/50	52/10	230	50	6	95	44	Coming Soon

Click to
Request
Quote

Model

NEMA
Rating

UL/CUL
Listed or
Recognized

BTU/H
Capacity

95/95
Rating
BTU/H

Ambient Temp.

Volts

Running
Amps

Approx.
Weight

Spare and
Replacement
Parts

°F

°C

Max./Min.

lbs

n/a

KA4C3.5H9R56

Recognized

3500

2700

120/50

49/10

115

50/60

16.0/15.4

Coming Soon

n/a

K2A4C3.5H9R5

NULL

Recognized

3500

2700

125/50

52/10

230

Coming Soon

Rating shown is for operation at maximum ambient temperature.

Click on image for larger view

TECHNICAL DATA

Click to Request Quote:	n/a	n/a
Model Number:	KA4C3.5H9R56	K2A4C3.5H9R5
NEMA Rating:		NULL
UL/CUL Listed or Recognized:	Recognized	Recognized
BTU/H Capacity:	3500	3500
95/95 Rating BTU/H:	2700	2700
Ambient Temp °.F Max./Min.:	120/50	125/50
Ambient Temp °.C Max./Min.:	49/10	52/10
Volts:	115	230
Hz:	50/60	50
Running Amps:	16.0/15.4	6
Approx. Weight lbs.:	95	95
Approx. Weight kg.:	44	44
Spare and Replacement Parts	Coming Soon	Coming Soon

Rating shown is for operation at maximum ambient temperature.

STANDARD FEATURES

ACCESSORIES AND OPTIONS

* UL/CUL Listed models are available at added cost.


Enclosure Lights	Miscellaneous

Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.<

AIRFLOW
Click on image for larger view

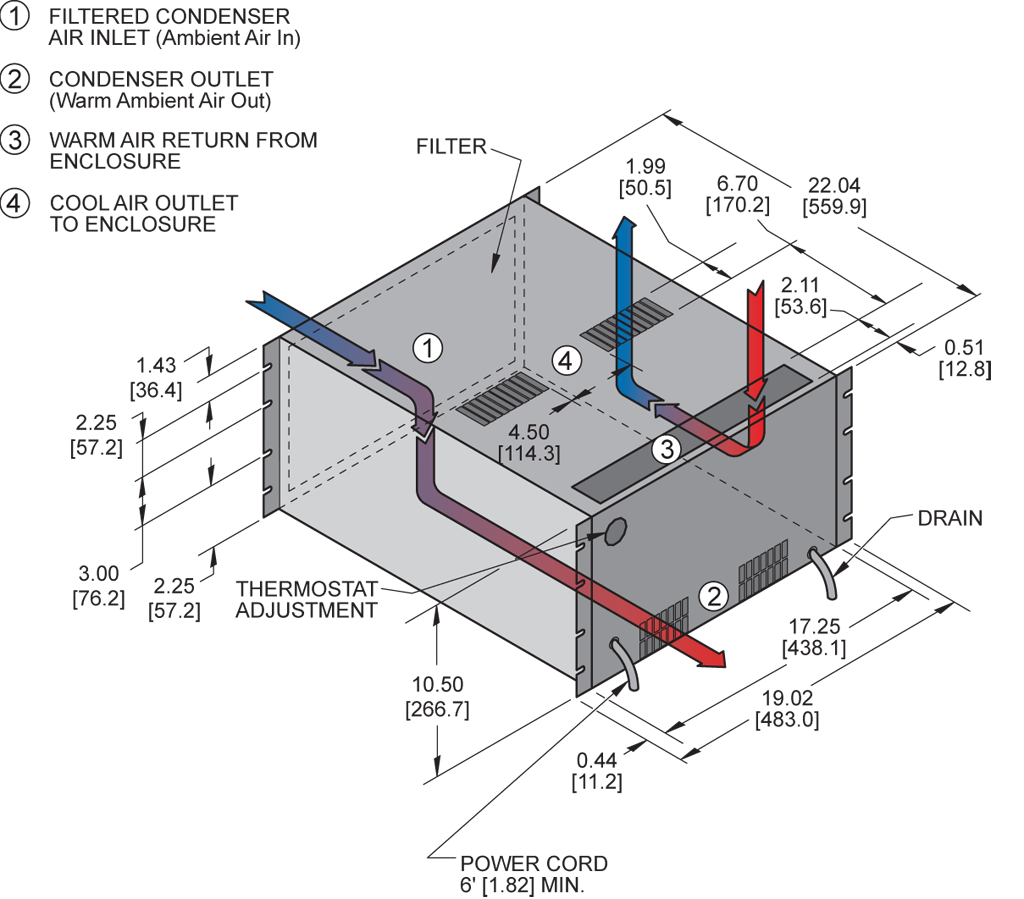

H9 (Switch) Air Conditioner isometric illustration

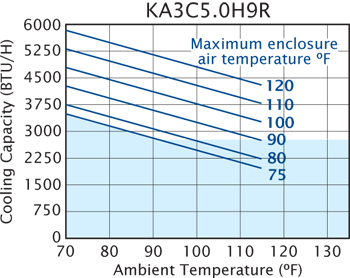

PERFORMANCE

GENERAL ARRANGEMENT
Click on image for larger view

H9 (Switch) Air Conditioner general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

GENERAL ARRANGEMENT
Click on image for larger view

Dimensions, inches [mm], are for reference only and subject to change.

SIMILAR MODELS

Model	Guideline Dimensions (H x W x D)*	BTU/H Rating
Rack/Top Mount H10	10.38 x 19.00 x 22.00	3500
Rack-Mount	10.41 x 19.00 x 21.95	5000
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS

Installation Instructions

	H9-H10 Series Rack Mount Air Conditioners Installation Instructions (2 pages) (NEW - w/Dixell) [476Kb]
	H9-H10 Series Rack Mount Air Conditioners Installation Instructions (2 pages) (OLD - Pre-Dixell) [147Kb]

Literature

	Air Conditioner Quick-Sheet [105Kb]
	Condensate Evaporator Kits [241Kb]
	Condensation and Electronics [3983Kb]
	Electronic Enclosure Cooling With Special Purpose Air Conditioners [254Kb]
	Hazardous Location Series White Paper [234Kb]
	Increasing the Lifespan and Reliability of Electrical Components [212Kb]
	Slimkool Series Flyer [584Kb]
	Kooltronic Custom Capabilities Flyer [2194Kb]
	Kooltronic Custom Cooling Medical Flyer [211Kb]
	Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
	Kooltronic Refrigeration System Manufacturing [55Kb]
	Kooltronic Standard Warranty [55Kb]
	Kooltronic Unit Longevity Press Release [167Kb]
	NEMA Enclosure Ratings [91Kb]
	Short-Form Catalog (16 pages) [897Kb]
	Airflow Switch Data Sheet [159Kb]
	Laboratory Environmental Testing Services [157Kb]
	Powder Paint Application Facilities Flyer [165Kb]

Operator's Manual

	KLLC100 Lead-Lag Controller [38Kb]
	KLLC480 Lead-Lag Controller [79Kb]
	Rack-Mounted H7, H9 & H10 Operator's Manual (OLD - Pre-Dixell) [417Kb]
	Rack-Mounted H9 & H10 Operator's Manual (NEW - w/Dixell) [8286Kb]

Wiring Diagram

	H9 Series KA4C1.5-4.2H9L, H10L Wiring Diagram (Ladder) [55Kb]
	H9 Series KA4C3.5H9, H10 Wiring Diagram (Ladder) (w/ Dixell) [48Kb]
	H9 Series KA4C3.5H9, H10 Wiring Diagram (Point-to-Point) (w/ Dixell) [55Kb]
	KA4C1.5-4.2H9L, KA4C1.5-4.2H10L Wiring Diagram (Ladder) [64Kb]
	KAC5.0H9RVB-1 Wiring Diagram (Ladder) (OLD) [57Kb]
