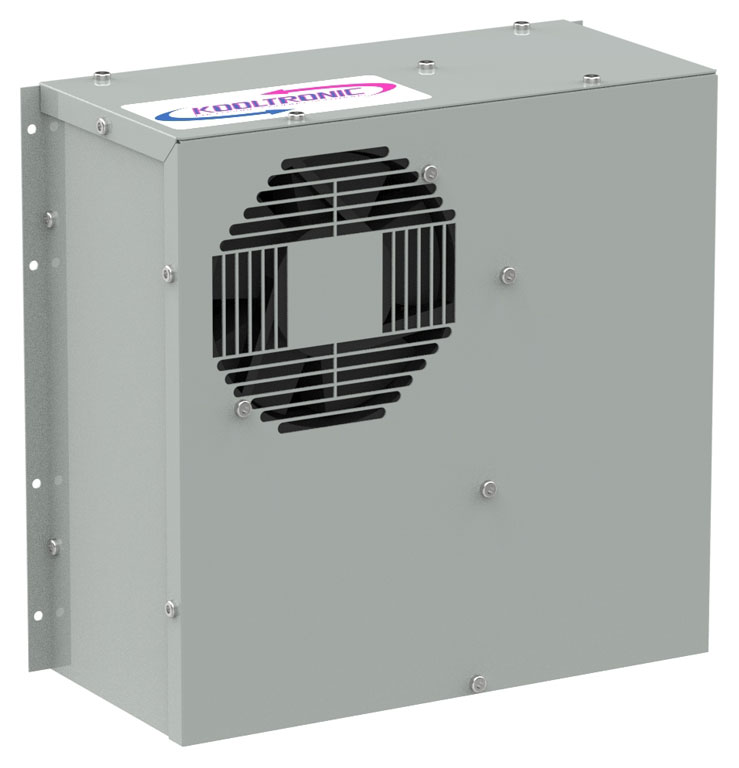

Micro-Mini Air-Cooled
Panel-Mounted Air Conditioners
Download
Product
Information
TECHNICAL DATA
Click to
Request
Quote
Model
NEMA
Rating
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H
Ambient Temp.
Volts
Hz
Running
Amps
Approx.
Weight
°F
°C
Max./Min.
Max./Min.
lbs
kg
KA4C1.0MML
12
Listed
1000
850
125/-20
52/-28
115/100
60/50
2.7
30
14
Rating shown is for operation at maximum ambient temperature.
Click on image for larger view
NEMA
TYPE 12
MAINTAINED
TECHNICAL DATA
Click to
Request
Quote:
Model
Number:
KA4C1.0MML
NEMA
Rating:
12
UL/CUL
Listed or
Recognized:
Listed
BTU/H
Capacity:
1000
95/95 Rating
BTU/H:
850
Ambient
Temp °.F
Max./Min.:
125/-20
Ambient
Temp °.C
Max./Min.:
52/-28
Volts:
115/100
Hz:
60/50
Running
Amps:
2.7
Approx.
Weight lbs.:
30
Approx.
Weight kg.:
14
Rating shown is for operation at maximum ambient temperature.
STANDARD FEATURES
Ball-bearing Motors
All blower motors are UL/CSA Recognized and include automatic-reset thermal overload protection and double-sealed or double-shielded precision ball bearings. Special permanent lubricants perform over a broad temperature range: -20°F (-29°C) to 250°F (121°C). Tube axial fans are rated to perform at 14°F (-10°C) to 158°F (70°C) and are designed to meet UL, CSA and VDE.
CFC-Free Refrigerant
CFC-free R134a Refrigerant is used
Closed-Loop Cooling
The enclosure interior airflow system is isolated from the ambient airflow or waterflow system. No ambient air can invade the cool, dehumidified sensitive component compartment.
Compressor Short Cycle Protector
Protects the compressor from possible damage due to harmful short cycling, (frequent starting) where temperature controls enable the compressor to restart frequently or after a power interruption. These conditions could be due to low or fluctuating heat loads within the electrical enclosure or a power failure. The Compressor Short Cycle Protector will prevent the compressor from starting when it has been shut off for less than several minutes or the power was interrupted. By limiting the number of compressor starts per hour, the life of the compressor is prolonged. It is recommended where installations are subject to solar gain and or changes in the enclosure internal load due to the degree of usage of the equipment being cooled. It is also recommended where higher capacity units are specified in anticipation of the future addition of heat producing equipment being added to the enclosure.
Filter
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
NEMA 12 Rating Maintained (UL50)
All units are fully gasketed for tight, leak-proof installation, in compliance with the NEMA 12 Enclosure Ratings.
Programmable Thermostat
All models feature a programmable thermostat, allowing more accurate and versatile performance features.
Temperature Alarm
A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.
UL/CUL Listed
ACCESSORIES AND OPTIONS
Adapter
A plate or plenum needed to replace older Kooltronic or competitor units.
Aluminum Shell
Where light weight and/or compatibility with appearance of aluminum enclosures are required. Unpainted Type 5052 is standard. Other types and ultraviolet-resistant baked powder finish are available.
Filter Recoating Adhesive
This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
High Capacity Condensate Evaporator
Condensate evaporator kits are available for attachment to the bottom of Air-Cooled Panel Mounted Air Conditioners. Condensate is collected, vaporized and discharged to the surrounding air. All units include a safety overflow drain which discharges excessive condensate when required. Overflow may occur when cabinets are poorly sealed, or when cabinet doors are frequently opened, permitting the invasion of moisture-laden air.
Internal Corrosion Protection
This protection increases reliability in hostile environments. This protection for the refrigeration system consists of an air cured coating applied to the brazed joints on the condenser side, providing a degree of protection from corrosive environments. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or GuardianX Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
Lead-Lag Controller
Lifting Eyes
Heavy-gauge steel lifting eyes, attached to the side panels, assist in positioning units.
Mounting Hinge
(Left-hand or Right-hand) Allows the air conditioner itself to be used as a cabinet door. (Caution: The cabinet must be able to support the full weight of the unit in open position.) Specify left-hand (LH) or right-hand (RH), determined by facing the mounting side of the heat exchanger.
Remote Monitoring
An optional feature for models with Programmable Thermostat, Remote Monitoring provides temperature data for warning of early action required.,Accomplished through a Hot Key connection from the Programmable Thermostat to a monitoring system (not supplied) that is ModBus-RTU compatible (i.e. XWEB500/3000/300) via an external 2-position terminal block.
Remote Thermostat Relay
Used only with a user-installed remote thermostat or the Kooltronic KLLC100 Lead Lag Controller, this 24VAC relay can be used for the sequential operation of two units or with a single unit. An external terminal strip is provided for field interconnection. NOTE: User-installed thermostat must have a set point of 75°F with a differential of 11°F. NOTE: A factory installed thermostat is not provided with this option.
Replacement Filters
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
Special materials or finishes
Stainless Steel Shell
Weather Protection Kit
For outdoor installations subject to invasion by rain, snow or windblown dirt, special deflectors shield the condenser air inlet and outlet ports. Air conditioners or heat exchangers installed outdoors may also require special exterior paint. NOTE: Units using the Weather Protection Kit are not UL Listed.
For
Micro-Mini
models the filter part number is
5001F
.
Enclosure Lights
AIRFLOW
Click on image for larger view

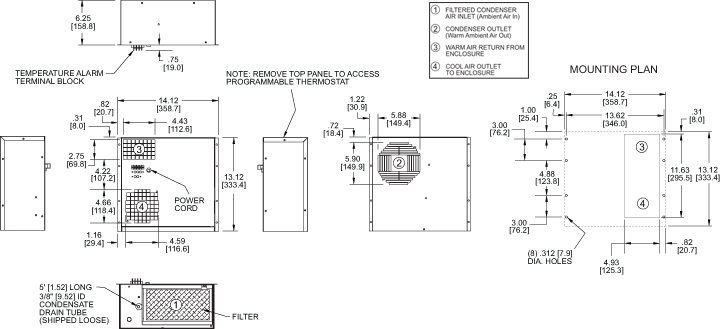

GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view
Dimensions, inches [mm], are for reference only and subject to change.
Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details
.
SIMILAR MODELS
Model
Guideline
Dimensions
(H x W x D)*
BTU/H Rating
Narrow-Mini
20.00 x 10.25 x 10.00
2900
TrimLine NP17
17.50 x 12.25 x 9.00
2000
*See model specifics for drawings, dimensions, mounting or cutout plans.
DOCUMENTS
GA Drawing
Micro-Mini (Externally-Mounted Transformer) General Arrangement Drawing for units w/ s/n's up to A17A0030
Micro-Mini General Arrangement Drawing for units w/ s/n's up to A17A0030
Micro-Mini General Arrangement Drawing W/ Programmable T-stat for units w/ s/n's D17A1203 and above
Micro-Mini with Inlet Shield General Arrangement Drawing for units w/ s/n's up to A17A0030
Installation Instructions
K_A4C1.0MML Installation Instructions for units with serial numbers from D17A1203 and above(2 pages)
K_A4C1.0MML Installation Instructions for units with serial numbers up to A17A0030(2 pages)
Literature
Air Conditioner Quick-Sheet
Condensate Evaporator Kits
Condensation and Electronics
Electronic Enclosure Cooling With Special Purpose Air Conditioners
Hazardous Location Series White Paper
Increasing the Lifespan and Reliability of Electrical Components
KLLC100 Lead-Lag Controller (1 page)
Kooltronic Design Guide/Catalog (215 pages)
Kooltronic Standard Warranty
NEMA Enclosure Ratings
Short-Form Catalog (16 pages)
Operator's Manual
KLLC100 Lead-Lag Controller
KLLC480 Lead-Lag Controller
Micro-Mini KA4C1.0MML Operator's Manual for units w/ s/n's D17A1203 and above
Narrow-Mini & Micro-Mini Operator's Manual for Micro-Mini units w/ s/n's up to A17A0030
Wiring Diagram
K2A4C1.2MML & K2A4C1.2MML5 Wiring Diagram (Point-to-Point)for units w/ s/n's up to A17A0030
K2AC1.0MM/50-2 Wiring Diagram (Ladder) for units w/ s/n's up to A17A0030
KA4C1.0MML-1 & KA4C1.4MMLN Wiring Diagram (Point-to-Point) for units w/ s/n's up to A17A0030
KA4C1.2MML Wiring Diagram (Point-to-Point)for units w/ s/n's up to A17A0030
K_A4C_HS, KA4C_MMT, K_A4C_HTT, KA4C_NP17, KA4C_NM Wiring Diagram (Ladder)for NP17 units w/ s/n's up to A17A0030 & NP17 units w/ s/n's up to M16A4171
KA4C1.0MML Wiring Diagram (Point-to-Point) for units w/ s/n's D17A1203 and above
KA4C1.4MML-6 Wiring Diagram (Point-to-Point) for units w/ s/n's from B17A0455 and above
KA4C2.0NM, KA4C_NP17, KA4C_MMT, KA4C_HTT Wiring Diagram (Ladder) for Micro-Mini units w/ s/n's up to A17A0030
Narrow-Mini & Micro-Mini Wiring Diagram (Ladder) for Micro-Mini units w/ s/n's up to A17A0030
