Intrepid Series EP56 OutdoorAir-Cooled
Panel-Mounted Air Conditioners (Discontinued)

download product information Download
Product
Information
These products are discontinued and no longer in production.
We recommend the Intrepid Series as a possible alternative.
TECHNICAL DATA

Click to
Request
Quote
ModelBTU/H
Capacity
95/95
Rating
BTU/H
Ambient Temp.VoltsHzCooling
Amps
Heating
Amps
Approx.
Weight
Spare and
Replacement
Parts
°F°C
Max./Min.Max./Min.lbskg
n/aK2A3C30EP56TR3000026000131/055/-17230602615.3302138Order Parts
n/aK2A3C30EP56BR3000026000131/055/-17230602615.3304139Order Parts
n/aK2A3C30EP62R3000026000115/047/-17230602415.3304139Order Parts

Click on image for larger view
EP56 (Discontinued) Air Conditioner photo
NEMA TYPE 3R, 12 & 1
MAINTAINED

TECHNICAL DATA

Click to
Request
Quote:
n/an/an/a
Model
Number:
K2A3C30EP56TRK2A3C30EP56BRK2A3C30EP62R
BTU/H
Capacity:
300003000030000
95/95 Rating
BTU/H:
260002600026000
Ambient
Temp °.F
Max./Min.:
131/0131/0115/0
Ambient
Temp °.C
Max./Min.:
55/-1755/-1747/-17
Volts:230230230
Hz:606060
Cooling
Amps:
262624
Heating
Amps:
15.315.315.3
Approx.
Weight lbs.:
302304304
Approx.
Weight kg.:
138139139
Spare and Replacement PartsOrder PartsOrder PartsOrder Parts

STANDARD FEATURES

  • Condenser Blower Speed Controller
    • A speed control sensing bulb located in the condenser air outlet area switches the condenser blower between minimum and maximum speed based on the ambient temperature. This reduces noise levels, fan cycling, compressor cycling and prevents the unit from freezing.
  • Crankcase Compressor Heater
    • 120V or 240V heater attached to the compressor crankcase to maintain appropriate temperatures during cold operating conditions.
  • Heavy-Duty Steel Shell
  • Low Temperature Control Thermostat
    • Electronic Thermostatic Low Temperature Control prevents over-cooling and provides energy-efficient operation.
  • NEMA 12, 3R & 1 Ratings Maintained (UL50)
    • Fully gasketed for tight, leakproof installation, in compliance with the NEMA 12, 3R & 1 Enclosure Ratings.
  • Tamper-resistant hardware
  • Textured Baked Powder Finish
    • "BAKED POWDER FINISH: Durable, baked-on beige powder finish is standard. Other finishes are available.*

      * See Profile Indoor/Outdoor, Integrity NEMA 4/4X and Intrepid Series for different specifications applicable."

  • UL/CUL Recognized

ACCESSORIES AND OPTIONS

  • Cooling Effect Detector
    • A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.
  • Enclosure Heater
    • Eliminates damaging condensation, increasing reliability of electrical enclosure components.
  • Internal Corrosion Protection
    • This protection increases reliability in hostile environments. This protection for the refrigeration system consists of an air cured coating applied to the brazed joints on the condenser side, providing a degree of protection from corrosive environments. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or GuardianX Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
  • Remote Thermostat Relay
    • Used only with a user-installed remote thermostat or the Kooltronic KLLC100 Lead Lag Controller, this 24VAC relay can be used for the sequential operation of two units or with a single unit. An external terminal strip is provided for field interconnection. NOTE: User-installed thermostat must have a set point of 75°F with a differential of 11°F. NOTE: A factory installed thermostat is not provided with this option.
  • Special paint finishes
  • Zero ODP Refrigerant
    • Zero ODP R410a Refrigerant is used in all EP56 Air Conditioners.

Enclosure Lights

AIRFLOW
Click on image for larger view

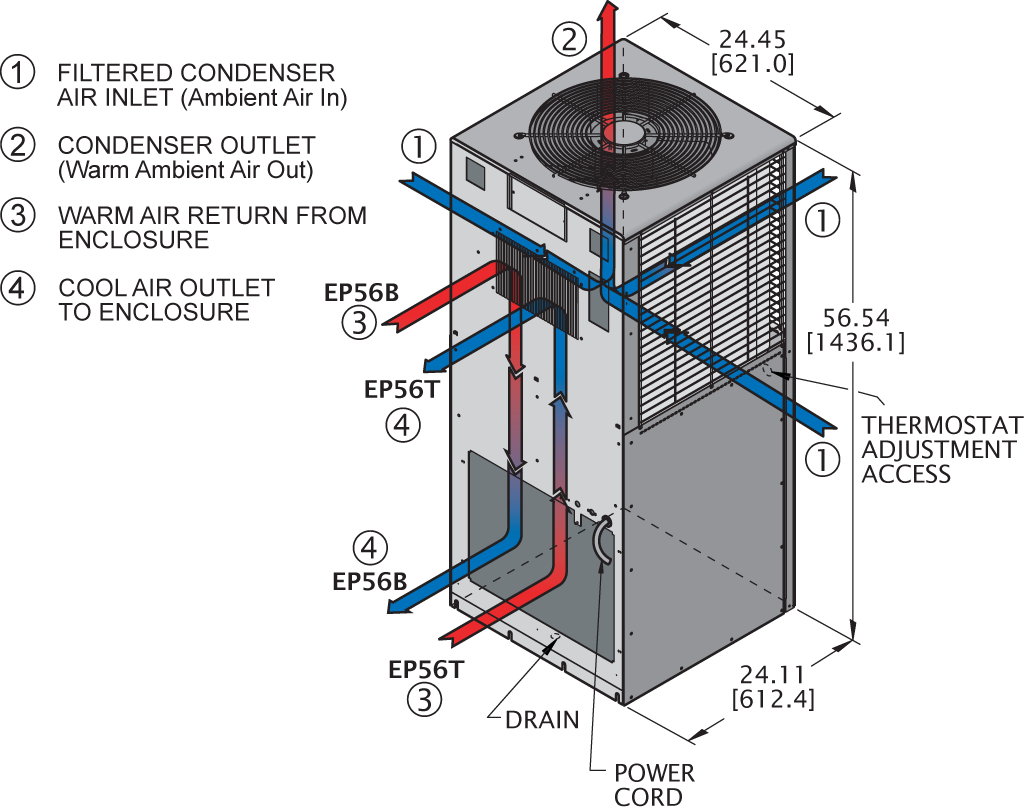

EP56 (Discontinued) Air Conditioner isometric illustration

PERFORMANCE

EP56 (Discontinued) Air Conditioner performance chart

GENERAL ARRANGEMENT
Click on image for larger view

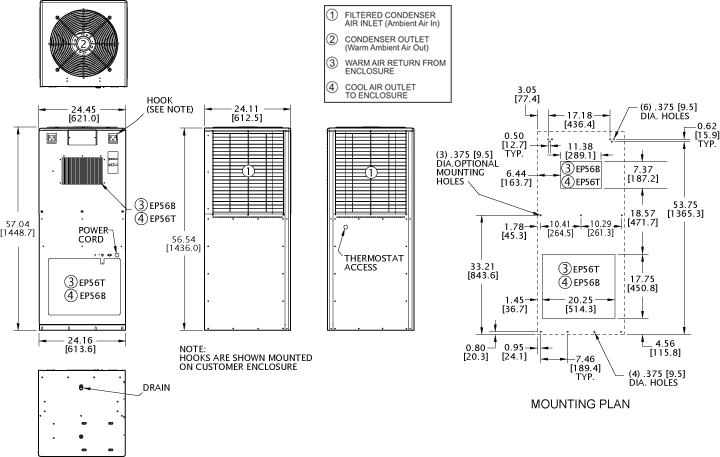

EP56 (Discontinued) Air Conditioner general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view

EP56 (Discontinued) Air Conditioner general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

SIMILAR MODELS

ModelGuideline
Dimensions
(H x W x D)*
BTU/H Rating
Intrepid EP5656.54 x 24.48 x 24.1130000
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS

  • 2-D Drawing of the Mounting Plan
    K2A6C30EP56_R 2-D Drawing of the Mounting Plan [36Kb]
  • 3-D Solid Model
    K2A6C30EP56_R 3-D Solid Model [11116Kb]
  • Data Sheet
    EP56 Product Data Sheet (Discontinued) [305Kb]
    EP62 Product Data Sheet (Discontinued) [347Kb]
  • Installation Instructions
    K2A6C30EP56BR Installation Instructions (2 pages) (OLD) [127Kb]
    K2A6C30EP56TR Installation Instructions (2 pages) (OLD) [126Kb]
  • Literature
    Air Conditioner Quick-Sheet [105Kb]
    Condensate Evaporator Kits [241Kb]
    Condensation and Electronics [3983Kb]
    Electronic Enclosure Cooling With Special Purpose Air Conditioners [254Kb]
    Hazardous Location Series White Paper [234Kb]
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Slimkool Series Flyer [584Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Airflow Switch Data Sheet [159Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    KLLC100 Lead-Lag Controller [38Kb]
    KLLC480 Lead-Lag Controller [79Kb]
    EP62 Operator's Manual (Discontinued) [411Kb]
    Intrepid EP56 Operator's Manual (OLD) [290Kb]
  • Wiring Diagram
    K2A6C30EP56_R Wiring Diagram (Ladder) [53Kb]
    K2A6C30EP56_R Wiring Diagram (Point-to-Point) [64Kb]
    K2A6C30EP56_R Wiring Diagram (Point-to-Point) [62Kb]
    K2A6C30EP56_R Wiring Diagram (Point-to-Point) [66Kb]
    K2A6C30EP56BR-2,-3 Wiring Diagram (Point-to-Point) [75Kb]
    K2A6C30EP56TR-4 Wiring Diagram (Point-to-Point) [85Kb]
