TrimLine Series NP/NPT47
Air-Cooled Panel-Mounted Air Conditioners

download product information Download
Product
Information
Legacy products are no longer in normal production. Consult factory for availability.
We recommend current series Guardian, GuardianX or Slimkool  as possible alternatives.
TECHNICAL DATA

Click to
Request
Quote
ModelNEMA
Rating
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H
Ambient Temp.VoltsHzRunning
Amps
Approx.
Weight
Spare and
Replacement
Parts
°F°C
Max./Min.Max./Min.lbskg
Request RFQ linkK2A4C7NP47L12Listed70004750125/5052/10230/20060/508.615069Order Parts

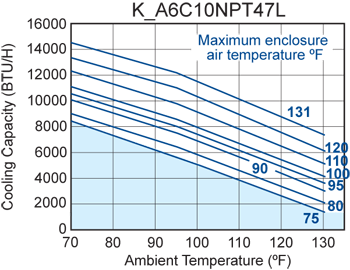

Request RFQ linkK2A6C10NPT47L3R & 12Listed100008300131/-4055/-40230608.712859Order Parts
Request RFQ linkK2A6C10NPT47L3R & 12Listed100007730131/-4055/-40230508.912859Order Parts
Request RFQ linkK2A6C10NPT47L3R & 12Listed100007730131/-4055/-40208609.912859Order Parts

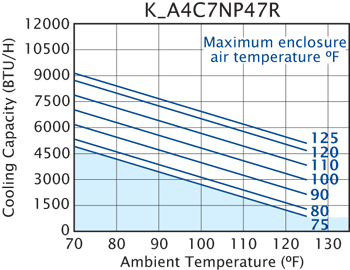

Request RFQ linkKA4C7NP47R12Recognized70004750125/5052/10115/11060/5016.515069Order Parts
Request RFQ linkKA6C10NPT47L3R & 12Listed100007730131/-4055/-401155018.412859Order Parts
Request RFQ linkKA6C10NPT47L3R & 12Listed100008300131/-4055/-401156019.412859Order Parts

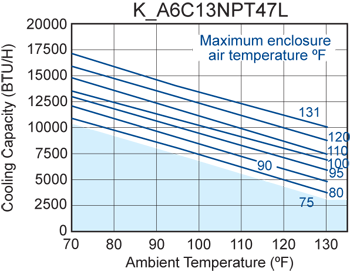

Request RFQ linkK2A6C13NPT47L3R & 12Listed130009700131/-4055/-402306011.713160Order Parts
Request RFQ linkK2A6C13NPT47L3R & 12Listed130008770131/-4055/-402305012.713160Order Parts
Request RFQ linkK2A6C13NPT47L3R & 12Listed130008770131/-4055/-402086013.013160Order Parts
Rating shown is for operation at maximum ambient temperature.

Click on image for larger view
TrimLine NPT47 Air Conditioner photo
NEMA TYPE 12 & 3R
MAINTAINED

TECHNICAL DATA

Click to
Request
Quote:
Request RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ linkRequest RFQ link
Model
Number:
K2A4C7NP47LK2A6C10NPT47LK2A6C10NPT47LK2A6C10NPT47LKA4C7NP47RKA6C10NPT47LKA6C10NPT47LK2A6C13NPT47LK2A6C13NPT47LK2A6C13NPT47L
NEMA
Rating:
123R & 123R & 123R & 12123R & 123R & 123R & 123R & 123R & 12
UL/CUL
Listed or
Recognized:
ListedListedListedListedRecognizedListedListedListedListedListed
BTU/H
Capacity:
700010000100001000070001000010000130001300013000
95/95 Rating
BTU/H:
4750830077307730475077308300970087708770
Ambient
Temp °.F
Max./Min.:
125/50131/-40131/-40131/-40125/50131/-40131/-40131/-40131/-40131/-40
Ambient
Temp °.C
Max./Min.:
52/1055/-4055/-4055/-4052/1055/-4055/-4055/-4055/-4055/-40
Volts:230/200230230208115/110115115230230208
Hz:60/5060506060/505060605060
Running
Amps:
8.68.78.99.916.518.419.411.712.713.0
Approx.
Weight lbs.:
150128128128150128128131131131
Approx.
Weight kg.:
69595959695959606060
Spare and Replacement PartsOrder PartsOrder PartsOrder PartsOrder PartsOrder PartsOrder PartsOrder PartsOrder PartsOrder PartsOrder Parts
Rating shown is for operation at maximum ambient temperature.

STANDARD FEATURES

  • Built-in Condensate Evaporator
    • Built-in Condensate Evaporator eliminates need for draining condensate under normal operating conditions. May not be adequate in extremely high humidity with open or leaky enclosure. Overflow condensate drain fitting and hose are included.
  • CFC-Free Refrigerant (NP Series)
    • CFC-Free R134a Refrigerant is used in all NP Series models.
  • Click for more info.Closed-Loop Cooling
    • The enclosure interior airflow system is isolated from the ambient airflow or waterflow system. No ambient air can invade the cool, dehumidified sensitive component compartment.
  • Condenser Impeller Controller
  • Filter
    • All Kooltronic filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reusable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacement filters are available and can be ordered online at kooltronic.com/spareparts.
  • High-Pressure Limiter Switch
  • Low Temperature Control Thermostat
    • Electronic Thermostatic Low Temperature Control prevents over-cooling and provides energy-efficient operation.
  • NEMA 12 & 3R Ratings Maintained (UL50)*
    • *NPT47 models Maintain NEMA 12 & 3R Ratings. NP47 models Maintain NEMA 12 Ratings.
  • UL/CUL Listed or Recognized*
    • NPT Series models are UL/CUL Listed. NP Series models are Listed or Recognized. Recognized models are available as Listed at added cost.
  • Zero ODP Refrigerant (NPT Series)
    • R410a, an HFC having zero ozone depleting potential, is used in all TrimLine NPT Series Air Conditioners.

ACCESSORIES AND OPTIONS

  • Compressor Short Cycle Protector
    • Available as a Standard Feature on models with Programmable Thermostat. Protects the compressor from possible damage due to harmful short cycling, (frequent starting) where temperature controls enable the compressor to restart frequently or after a power interruption. These conditions could be due to low or fluctuating heat loads within the electrical enclosure or a power failure. The Compressor Short Cycle Protector will prevent the compressor from starting when it has been shut off for less than several minutes or the power was interrupted. By limiting the number of compressor starts per hour, the life of the compressor is prolonged. It is recommended where installations are subject to solar gain and or changes in the enclosure internal load due to the degree of usage of the equipment being cooled. It is also recommended where higher capacity units are specified in anticipation of the future addition of heat producing equipment being added to the enclosure.
  • Enclosure Heater
    • Eliminates damaging condensation, increasing reliability of electrical enclosure components.
  • Filter Recoating Adhesive
    • This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
  • High Capacity Condensate Evaporator
    • Condensate evaporator kits are available for attachment to the bottom of Air-Cooled Panel Mounted Air Conditioners. Condensate is collected, vaporized and discharged to the surrounding air. All units include a safety overflow drain which discharges excessive condensate when required. Overflow may occur when cabinets are poorly sealed, or when cabinet doors are frequently opened, permitting the invasion of moisture-laden air.
  • Internal Corrosion Protection
    • This protection increases reliability in hostile environments. This protection for the refrigeration system consists of an air cured coating applied to the brazed joints on the condenser side, providing a degree of protection from corrosive environments. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or GuardianX Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
  • Remote Thermostat Relay
    • Used only with a user-installed remote thermostat or the Kooltronic KLLC100 Lead Lag Controller, this 24VAC relay can be used for the sequential operation of two units or with a single unit. An external terminal strip is provided for field interconnection. NOTE: User-installed thermostat must have a set point of 75°F with a differential of 11°F. NOTE: A factory installed thermostat is not provided with this option.
  • Replacement Filters
    • All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
  • Special controls or indicators
  • Special materials or finishes
  • Special motors, line cords or connectors
  • Stainless or Aluminum Shell
  • Temperature Alarm
    • A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.
  • Weather Protection Kit
    • For outdoor installations subject to invasion by rain, snow or windblown dirt, special deflectors shield the condenser air inlet and outlet ports. Air conditioners or heat exchangers installed outdoors may also require special exterior paint. NOTE: Units using the Weather Protection Kit are not UL Listed.

For NPT47 models the filter part number is 681F. The NPT47 uses two filters.

For NP47 models the filter part number is 12251F.


*NPT Series models Maintain NEMA 12 & 3R Ratings. NP Series models Maintain NEMA 12 Ratings. **NPT Series models are UL/CUL Listed. NP Series models are UL/CUL Listed or Recognized. Recognized models available as Listed at added cost.

Enclosure Lights

Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.

Lights
Lights
Lights
AIRFLOW
Click on image for larger view

TrimLine NPT47 Air Conditioner isometric illustration

GENERAL ARRANGEMENT
Click on image for larger view

TrimLine NPT47 Air Conditioner general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.
GENERAL ARRANGEMENT
Click on image for larger view

TrimLine NPT47 Air Conditioner general arrangement drawing
Dimensions, inches [mm], are for reference only and subject to change.

SIMILAR MODELS

ModelGuideline
Dimensions
(H x W x D)*
BTU/H Rating
TrimLine NP3636.75 x 15.06 x 12.254000-6000
TrimLine NPT3332.83 x 12.27 x 9.584000
*See model specifics for drawings, dimensions, mounting or cutout plans.

DOCUMENTS

  • Data Sheet
    NP47 Product Data Sheet [91Kb]
    NPT47 Product Data Sheet [303Kb]
  • GA Drawing
    K2A4C10NP47LDF General Arrangement Drawing [102Kb]
    NP47 General Arrangement Drawing [113Kb]
    NPT47 General Arrangement Drawing [96Kb]
  • Installation Instructions
    K_A4C7NP47_ Installation Instructions (2 pages) [120Kb]
    K_A6C_NPT47L Installation Instructions (2 pages) [159Kb]
  • Literature
    Air Conditioner Quick-Sheet [105Kb]
    Condensate Evaporator Kits [241Kb]
    Condensation and Electronics [3983Kb]
    Electronic Enclosure Cooling With Special Purpose Air Conditioners [254Kb]
    Hazardous Location Series White Paper [234Kb]
    Increasing the Lifespan and Reliability of Electrical Components [212Kb]
    Slimkool Series Flyer [584Kb]
    Kooltronic Custom Capabilities Flyer [2194Kb]
    Kooltronic Custom Cooling Medical Flyer [211Kb]
    Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
    Kooltronic Refrigeration System Manufacturing [55Kb]
    Kooltronic Standard Warranty [55Kb]
    Kooltronic Unit Longevity Press Release [167Kb]
    NEMA Enclosure Ratings [91Kb]
    Short-Form Catalog (16 pages) [897Kb]
    Airflow Switch Data Sheet [159Kb]
    Laboratory Environmental Testing Services [157Kb]
    Powder Paint Application Facilities Flyer [165Kb]
  • Operator's Manual
    KLLC100 Lead-Lag Controller [38Kb]
    KLLC480 Lead-Lag Controller [79Kb]
    TrimLine NP47 Operator's Manual, 13000 BTU/H [241Kb]
    TrimLine NP47 Operator's Manual, 7000 & 10000 BTU/H [192Kb]
    TrimLine NPT47 Operator's Manual [417Kb]
  • Wiring Diagram
    K2A4C12NP47L-8 Wiring Diagram (Ladder) [99Kb]
    K2A4C4-7NP47L - K2A4C4-7NP47L5 Wiring Diagram (Ladder) [68Kb]
    K2A4C4-7NP47L, K2A4C4-7NP47L5 (mfg. after Aug. 2001) Wiring Diagram (Ladder) [79Kb]
    K2A4C4-7NP47L, K2A4C4-7NP47L5 (mfg. prior to Sept. 2001) Wiring Diagram (Ladder) [85Kb]
    K2A4C4-7NP47L, K2A4C4-7NP47L5 Wiring Diagram (Point-to-Point) [53Kb]
    K2A4C4-7NP47LBHKN Wiring Diagram (Ladder) [25Kb]
    K2A4C6NP47N-1 (mfg. after Aug. 2001) Wiring Diagram (Ladder) [65Kb]
    K2A4C6NP47N-1 (mfg. prior to Sept. 2001) Wiring Diagram (Ladder) [73Kb]
    K2A4C8NP47HP-1, K2A4C10-12NP47HP Wiring Diagram (Ladder) [99Kb]
    KA3C9NP47R56NY Wiring Diagram (Ladder) [99Kb]
    KA4C6NP47R Wiring Diagram (Point-to-Point) [61Kb]
    KA4C6NP47R Wiring Diagram (Point-to-Point) [64Kb]
    KAC_NP33, KAC_NP36, KAC_NP47 Wiring Diagram (Ladder) [80Kb]
    KAC_NP47-X116, K2AC_NP47-X116 Wiring Diagram (Ladder) [76Kb]
    KAC4-6NP47-X118 Wiring Diagram (Ladder) [95Kb]
    KAC7 THRU 12NP47-X118 Wiring Diagram (Ladder) [98Kb]
    TrimLine Series K_A6C10NPT47L Wiring Diagram (Ladder) [49Kb]
    TrimLine Series K2A4C8-12NP47L Wiring Diagram (Point-to-Point) [71Kb]
    TrimLine Series K2A6C13NPT47L (B) (F) Wiring Diagram (Point-to-Point) [81Kb]
